SC-F2000 Revision C
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 186
Confidential
3.4.6.13 TF TIMING BELT
1. Remove the REAR COVER SUB ASSY. (p77)
2. Remove the TF ENCODER BOARD ASSY. (p183)
3. Loosen the two screws, and loosen the tension of the TF TIMING BELT.
4. Remove the TF TIMING BELT.

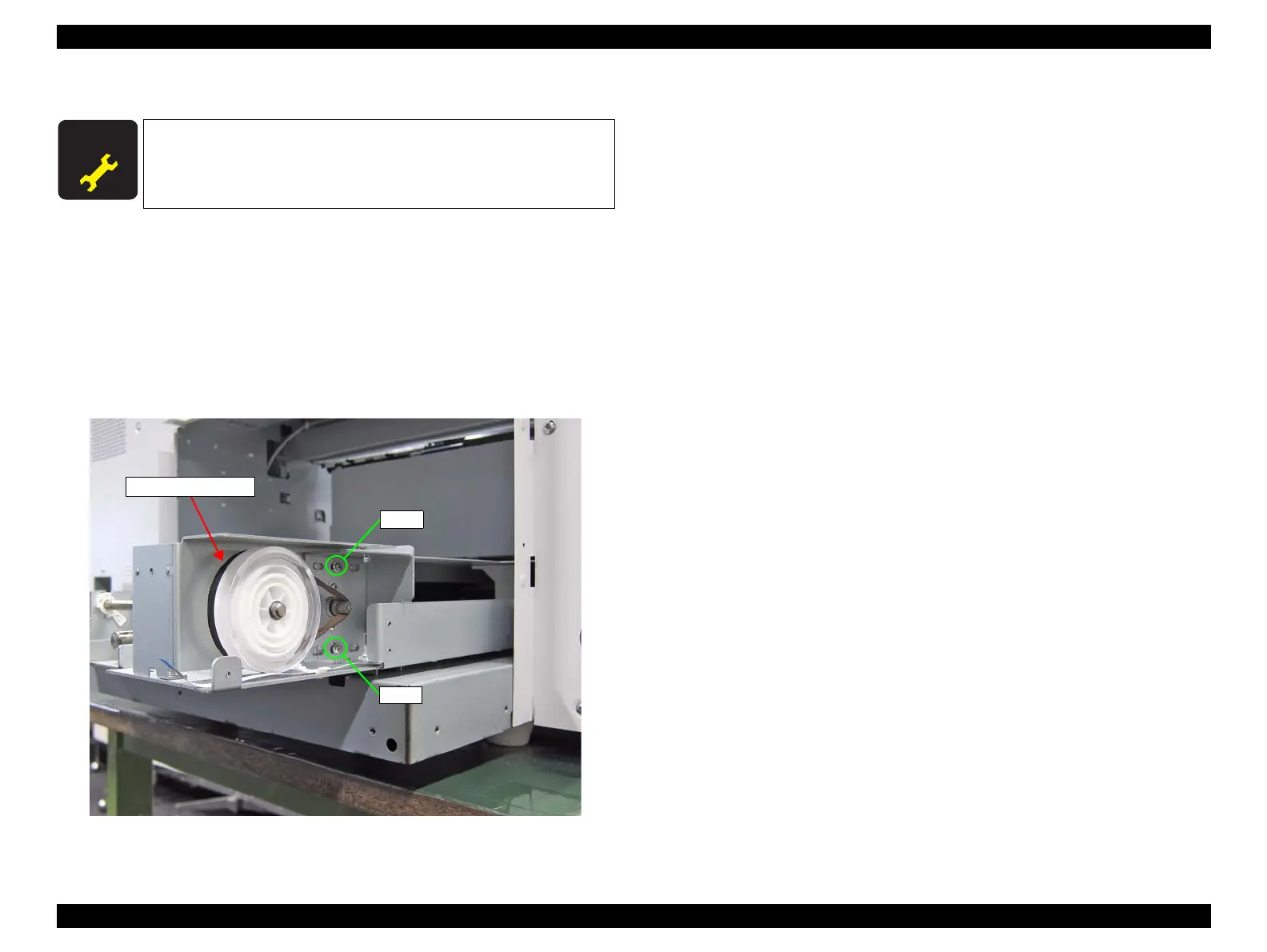

Figure 3-152. Removing the TF TIMING BELT
A D J U S T M E N T
R E Q U I R E D
When replacing this part, refer to “4.1.2 Adjustment Items and
the Order by Repaired Part” (p194) and make sure to perform the
specified operations including required adjustment.
To Next Page
