SC-F2000 Revision C
MAINTENANCE Lubrication 296
Confidential

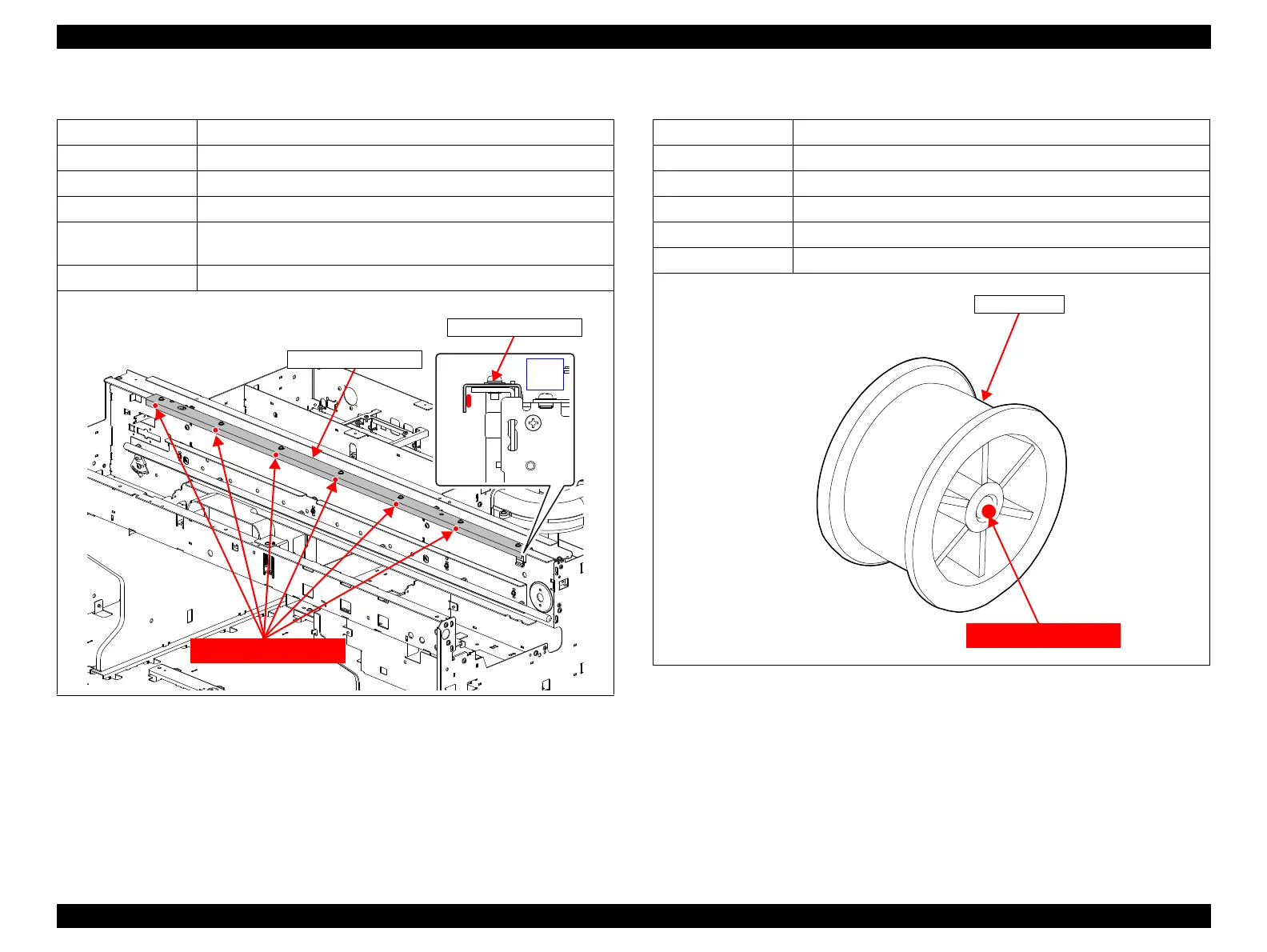

[Lubrication 5] [Lubrication 6]
Part Name Sub Shaft Guide Plate
Lubricants (Part Code) G-84 (1516265)
Amount φ 2mm × 4 mm × 6 points
Lubrication Tool φ 2 mm injector
Lubrication Manner
Lubricate inside of the Sub Shaft Guide Plate, then spread the lubricant
entirely with a waste cloth.
Note Be careful not to apply the lubricant beyond the specified point.
Sub Shaft Guide Plate
Side
view
Lubrication Points
Sub Shaft Guide Plate
Part Name Driven Pulley
Lubricants (Part Code) G-71 (1480655)
Amount φ 2 mm × 3 mm
Lubrication Tool φ 2 mm injector
Lubrication Manner Apply G-71, then insert the Driven Pulley Shaft.
Note Be careful not to apply the lubricant beyond the specified point.
Driven Pulley
Lubrication Point
To Next Page
