3.4.3.16 LEFT IC COVER SENSOR
1. Open the LEFT IC COVER.
2. Disengage the two hooks using flat-blade screwdriver or a similar tool, and
remove the LEFT SENSOR COVER.

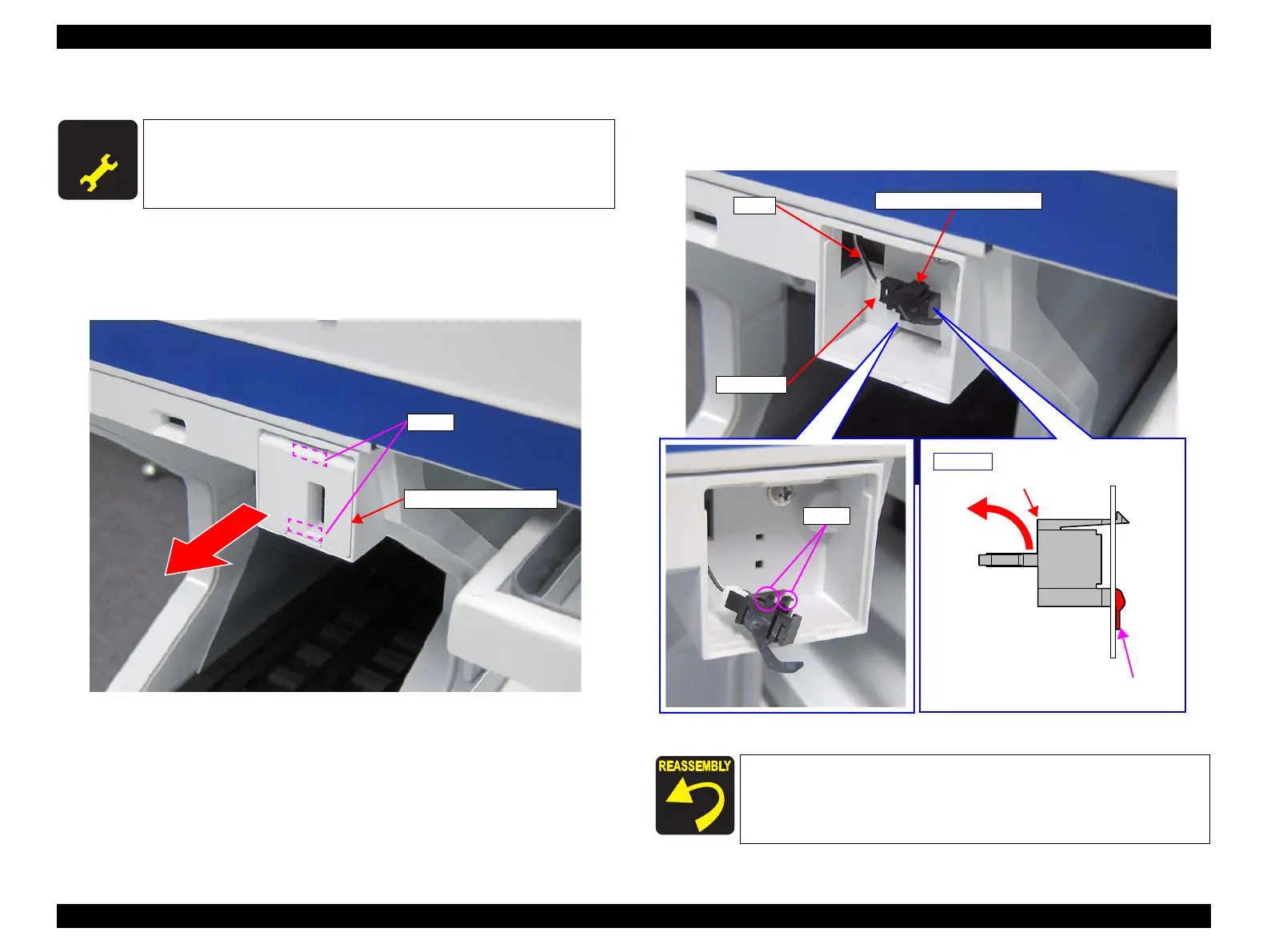

Figure 3-33. Removing the LEFT SENSOR COVER
3. Disengage the two hooks, and remove the LEFT IC COVER SENSOR in the
direction of the arrow.
4. Disconnect the cable from the connector of the sensor.
Figure 3-34. Removing the LEFT IC COVER SENSOR
A D J U S T M E N T
R E Q U I R E D
When replacing/removing this part, refer to “4.1.2 Adjustment
Items and the Order by Repaired Part” (p194) and make sure to
perform the specified operations including required adjustment.
LEFT SENSOR COVER
Hooks
Engage the lower hook first when attaching the LEFT IC COVER
SENSOR
(See Figure 3-34).
Hooks
LEFT IC COVER SENSOR
Connector
Cable
Side view
Hook (lower)
LEFT IC COVER SENSOR
