4.4.9 Foot
1. Remove the Printer Mechanism. (Refer to 4.4.4 Lower Housing / Printer
Mechanism (p.98))
2. Remove the six foot at the backside of the Lower Housing.

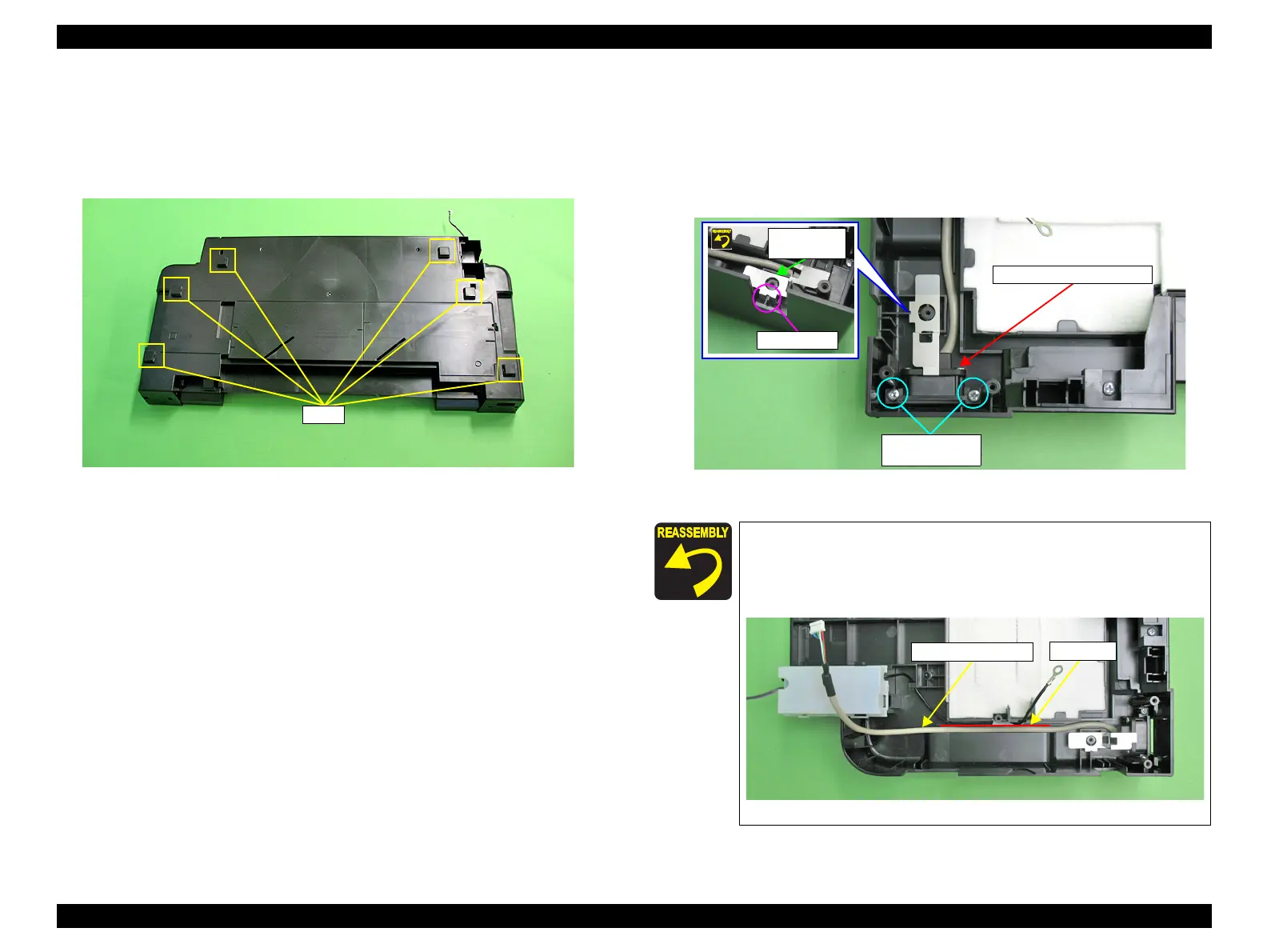

Figure 4-103. Removing the Foot
4.4.10 PictBridge Holder Assy
1. Remove the Printer Mechanism. (Refer to 4.4.4 Lower Housing / Printer
Mechanism (p.98))
2. Remove the two C.B.P. M3 x 8 screws that secure the PictBridge Holder Assy and
remove the PictBridge Holder Assy.
Figure 4-104. Removing the PictBridge Holder Assy
Foot
 Match the positioning slit of the Grounding Plate with the tab
of the Lower Housing as shown in Figure 4-104
 Route the PictBridge cable through the groove of the Lower
Housing as shown below.
Figure 4-105. Routing the PictBridge Cable
PictBridge Holder Assy
4) C.B.P. M3x8
(6±1 kgf.cm)
Grounding
Plate
Slit and tab
PictBridge cable Groove
