EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Disassembly And Assembly Disassembling the Printer Mechanism 91

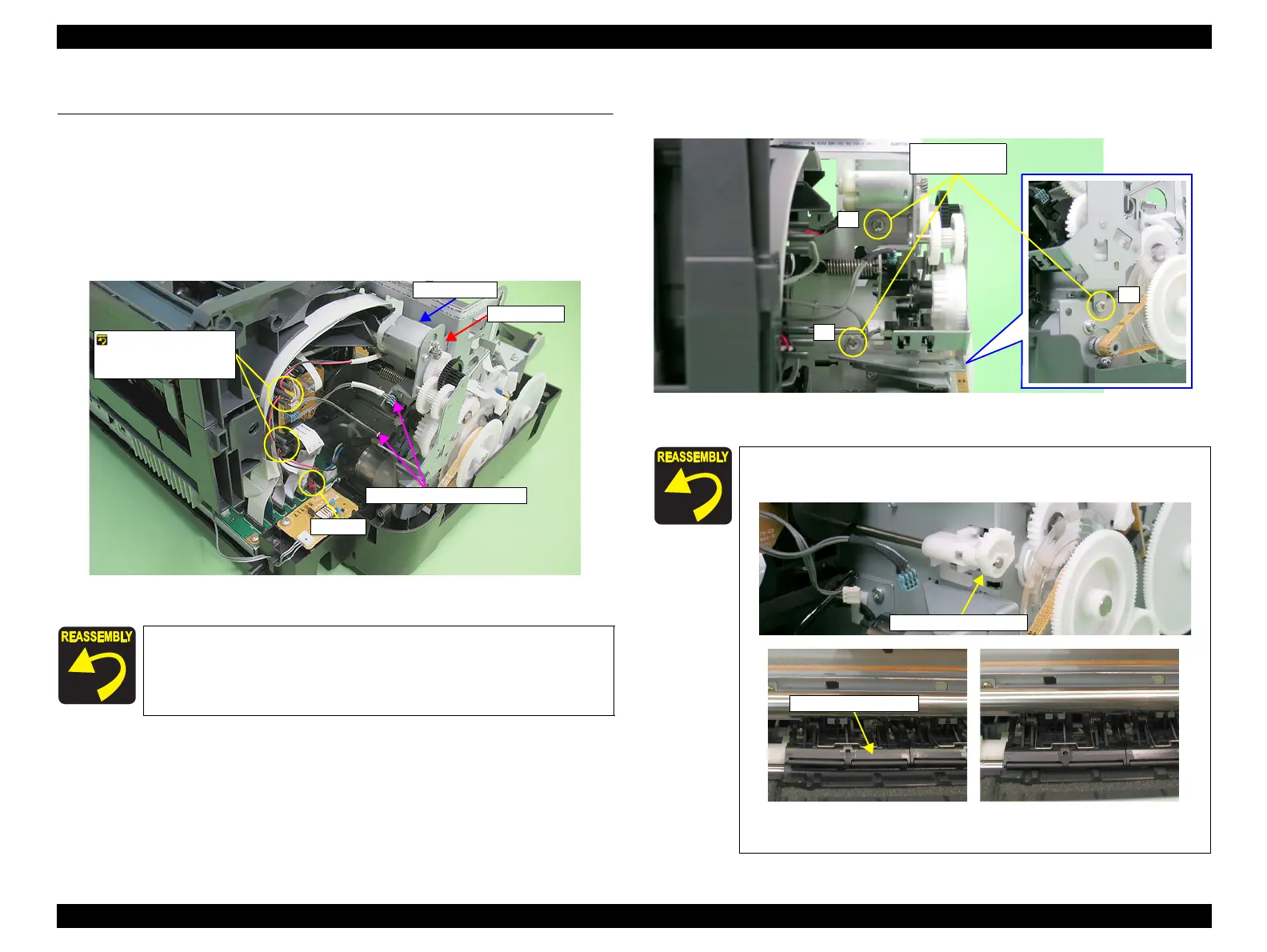

4.4 Disassembling the Printer Mechanism
4.4.1 APG Assy
1. Remove the Upper Housing / Printer Cover. (p.83)
2. Disconnect the APG Motor connector cable from connector CN18 (red) on the
Main Board, and Remove the cable from the ASF Assy.
3. Disconnect the cables from the two APG Sensor connectors.
Figure 4-40. Disconnecting the Cables
4. Remove the three C.B.S. M3 x 6 screws that secure the APG Assy, and remove the
APG Assy from the Main Frame.
Figure 4-41. Removing the APG Assy
Referring to Figure 4-40, correctly route the APG connector cable.
Hook the APG Motor
cable on the two tabs
of the ASF Assy.
APG Assy
APG Motor
APG Sensor connectors
CN118
 When installing the APG Assy, confirm the FLAG Release Assy
is not in the released state (with the Upper Paper Guide up).
Figure 4-42. Reinstalling the APG Assy
3
1
2
2) C.B.S. M3x6
(8±1 kgf.cm)
FLAG Release Assy
Released
Not Released
Upper Paper Guide

Epson Stylus Photo R2000 Series Specifications

General

Print Technology	Inkjet
Max Print Resolution	5760 x 1440 optimized dpi
Number of Ink Colors	8
Borderless Printing	Yes
Operating Systems	Windows, Mac OS
Ink Type	UltraChrome Hi-Gloss 2
Ink Colors	Cyan, Magenta, Yellow, Red, Orange, Matte Black, Photo Black, Gloss Optimizer
Ink Droplet Size	1.5 picoliters
Connectivity	USB, Ethernet, Wi-Fi
Media Sizes Supported	4" x 6", 5" x 7", 8" x 10", 11" x 14", 13" x 19"
Media Types Supported	Plain paper, photo paper, fine art paper, canvas
Interface	USB, Ethernet
