EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Disassembly And Assembly Removing the Housings 82
4.2.6 Decoration Plate Left/Right
1. Remove the Rear Housing. (p.79)
2. Remove the Front Decoration Plate Left/Right. (p.79)
3. Release the three hooks on the front of the Decoration Plate Right and lift the plate
a little to release the tab and the four guide pins on the upper side, then remove the
Decoration Plate Right.
4. In the same way, remove the Decoration Plate Left.

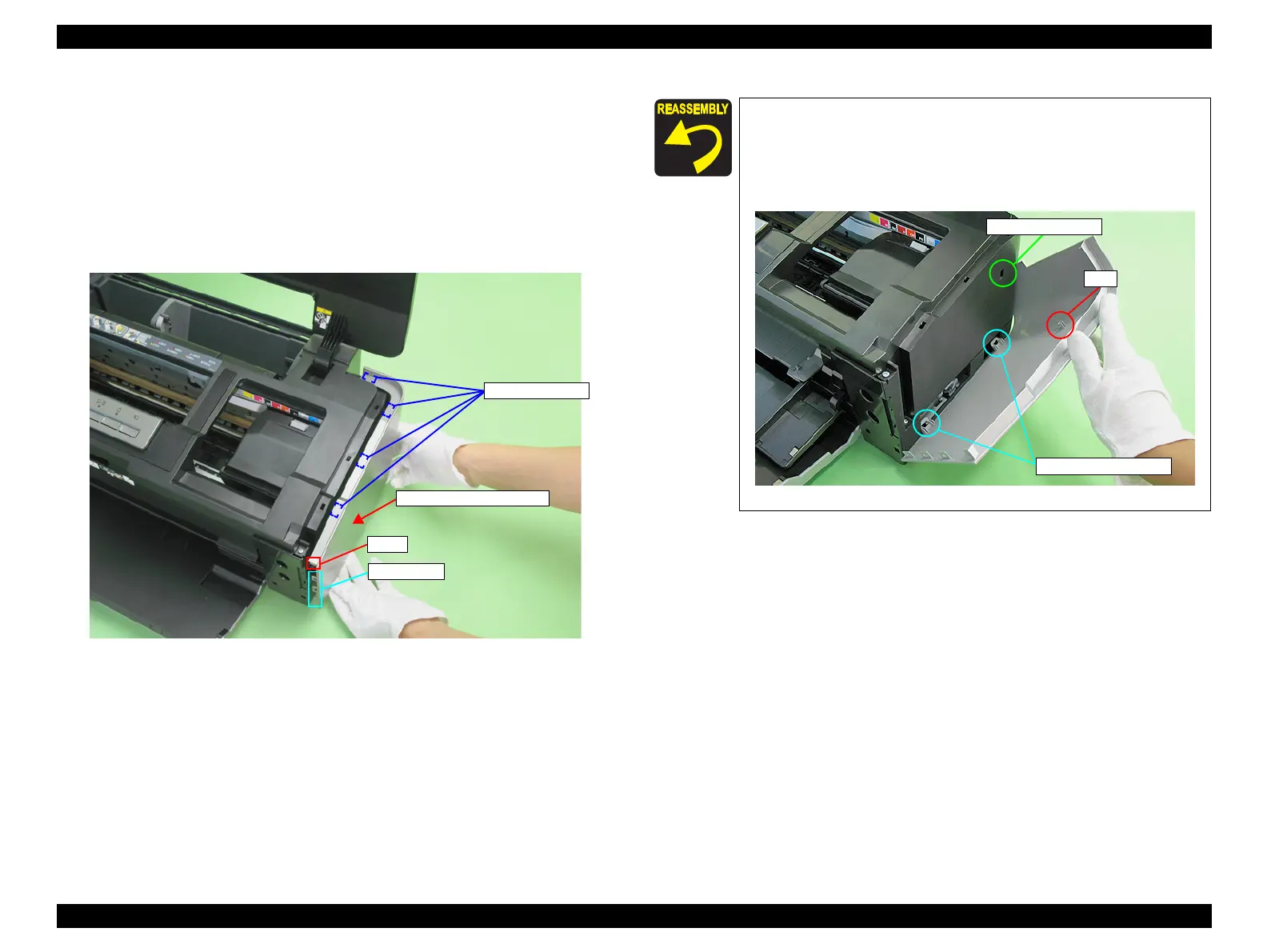

Figure 4-16. Removing the Decoration Plate Left/Right
Decoration Plate Right
Hook (x3)
Tab
Guide pin (x4)
When installing the Decoration Plate L/R, first align the hooks of
the Decoration Plate L/R (two each) with the ribs of the Lower
Housing (two each on the left/right), and then align the tab inside
the Decotrative Plate L/R (one each) with the positioning hole on the
Upper Housing (one each on the left/right).
Figure 4-17. Reinstalling the Decoration Plate Left/Right
Tab
Hooks and Ribs
Positioning hole
