EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Disassembly And Assembly Disassembling the Printer Mechanism 128
4.4.17 FLAG Release Assy
1. Remove the APG Assy. (p.91).
2. Remove the Release Holder Assy. (p.127)
3. Remove the guide pin on the Driven Release Holder from the Main Frame using
tweezers, and slide the Driven Release Holder to the left as viewed from the front
of the Printer Mechanism.
4. Release the three tabs on the Driven Release Holder from the Main Frame, and
remove the FLAG Release Assy.

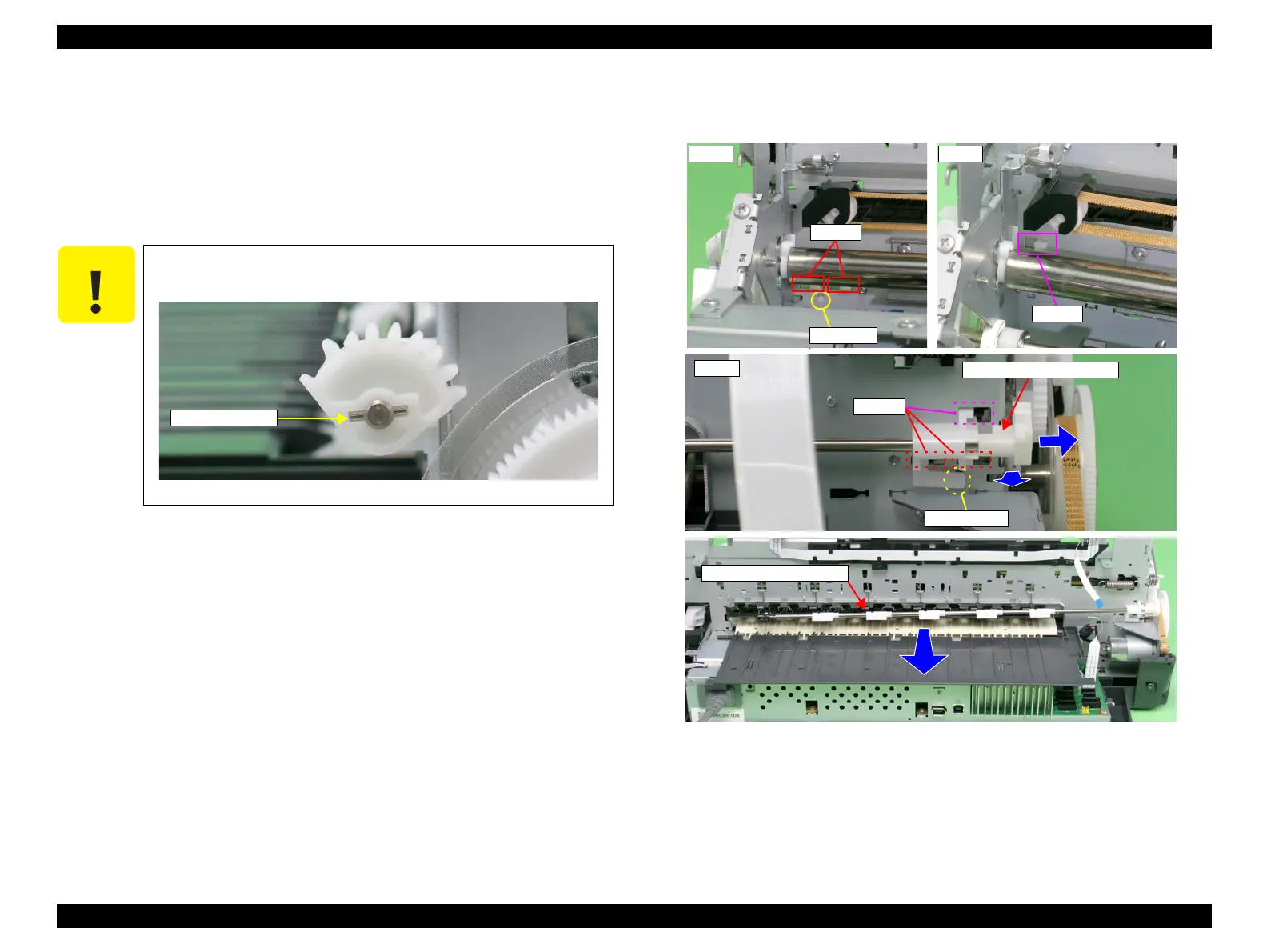

Figure 4-151. Removing the FLAG Release Assy
C A U T I O N
In the following procedure, Parallel Pin 1.5 may drop off when the
Driven Release Holder is slid. Be careful not to lose it.
Figure 4-150. Parallel Pin 1.5
Parallel Pin 1.5
Guide pin
Tabs
Front
Driven Release Holder
Rear
Guide pin
Tabs
Tab
Front
FLAG Release Assy
