EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Disassembly And Assembly Removing the Housings 83
4.2.7 Upper Housing / Printer Cover
1. Remove the Decoration Plate Left/Right. (p.82)
2. Remove the Panel Unit. (p.80)
3. Open the Front Cover and CDR Tray Base. (Refer to 4.1.6 Locking/Unlocking the
Carriage and Opening/Closing the CDR Tray Base (p.75))
4. Remove the seven C.B.P. M3 x 10 screws that secure the Upper Housing.
5. Remove the Upper Housing while pulling out the CDR Sensor cable and the Panel
FFC through the cutout of the Upper Housing.

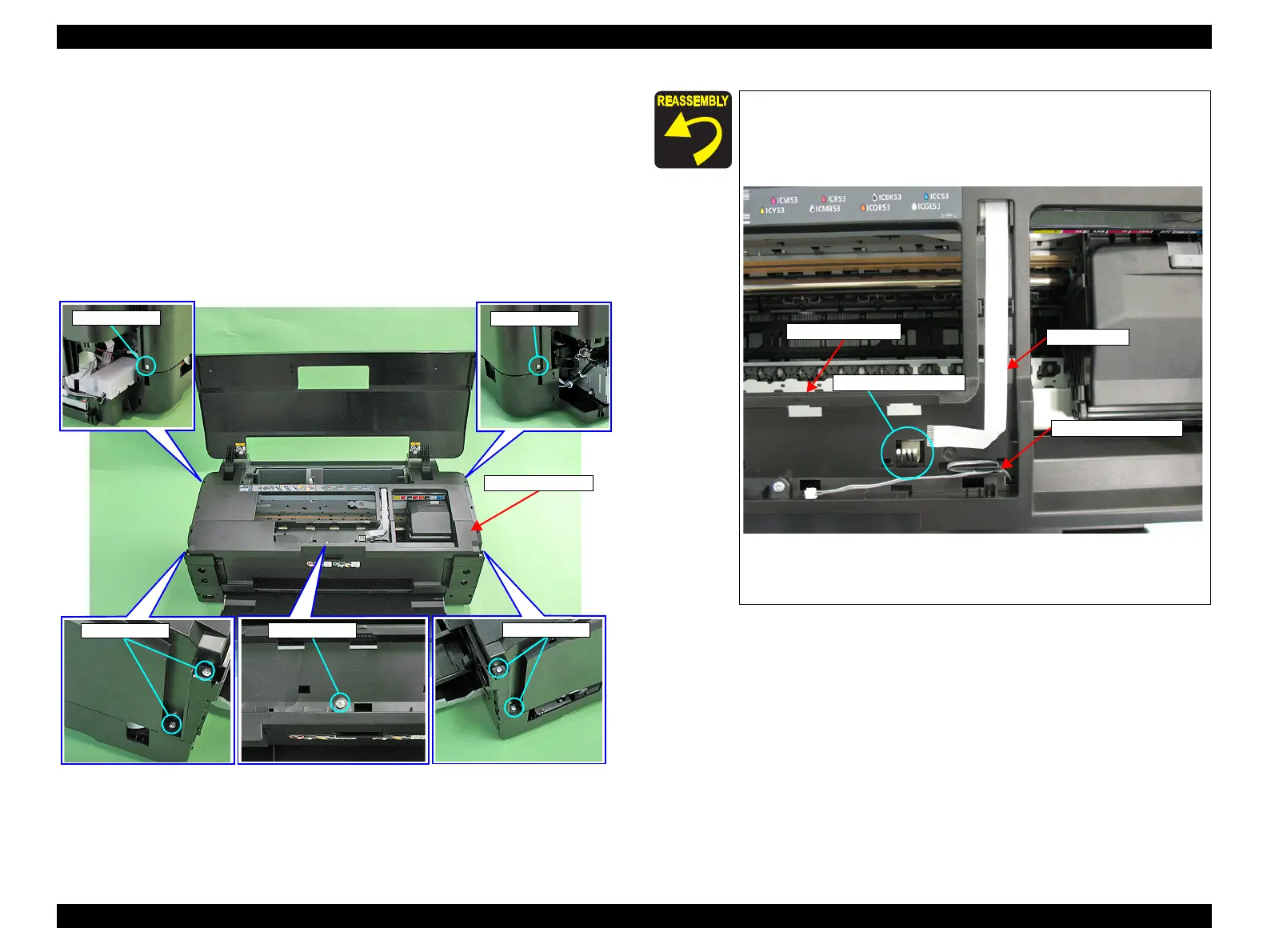

Figure 4-18. Remove the Upper Housing
C.B.P. M3x10
C.B.P. M3x10
C.B.P. M3x10
C.B.P. M3x10
C.B.P. M3x10
Upper Housing
 Route the Panel FFC and CDR Sensor cable correctly as shown
in the following Figure.
 Install the Upper Housing so that the Grounding Plate properly
protrudes through the cutout of the Upper Housing.
Figure 4-19. Routing Panel FFC and CDR Sensor Cable
 Tighten the screws in the order shown in Figure 4-18.
CDR Sensor cable
Panel FFC
Upper Housing
Grounding Plate

Epson Stylus Photo R2000 Series Specifications

General

Print Technology	Inkjet
Max Print Resolution	5760 x 1440 optimized dpi
Number of Ink Colors	8
Borderless Printing	Yes
Operating Systems	Windows, Mac OS
Ink Type	UltraChrome Hi-Gloss 2
Ink Colors	Cyan, Magenta, Yellow, Red, Orange, Matte Black, Photo Black, Gloss Optimizer
Ink Droplet Size	1.5 picoliters
Connectivity	USB, Ethernet, Wi-Fi
Media Sizes Supported	4" x 6", 5" x 7", 8" x 10", 11" x 14", 13" x 19"
Media Types Supported	Plain paper, photo paper, fine art paper, canvas
Interface	USB, Ethernet
