Disassembly And Assembly Removing the Housings 84
REMOVING THE PRINTER COVER
1. Remove the Upper Housing / Printer Cover. (p.83)
2. Remove the two C.B.P. M3 x 10 screws that secure Printer Cover Holder Left/
Right.

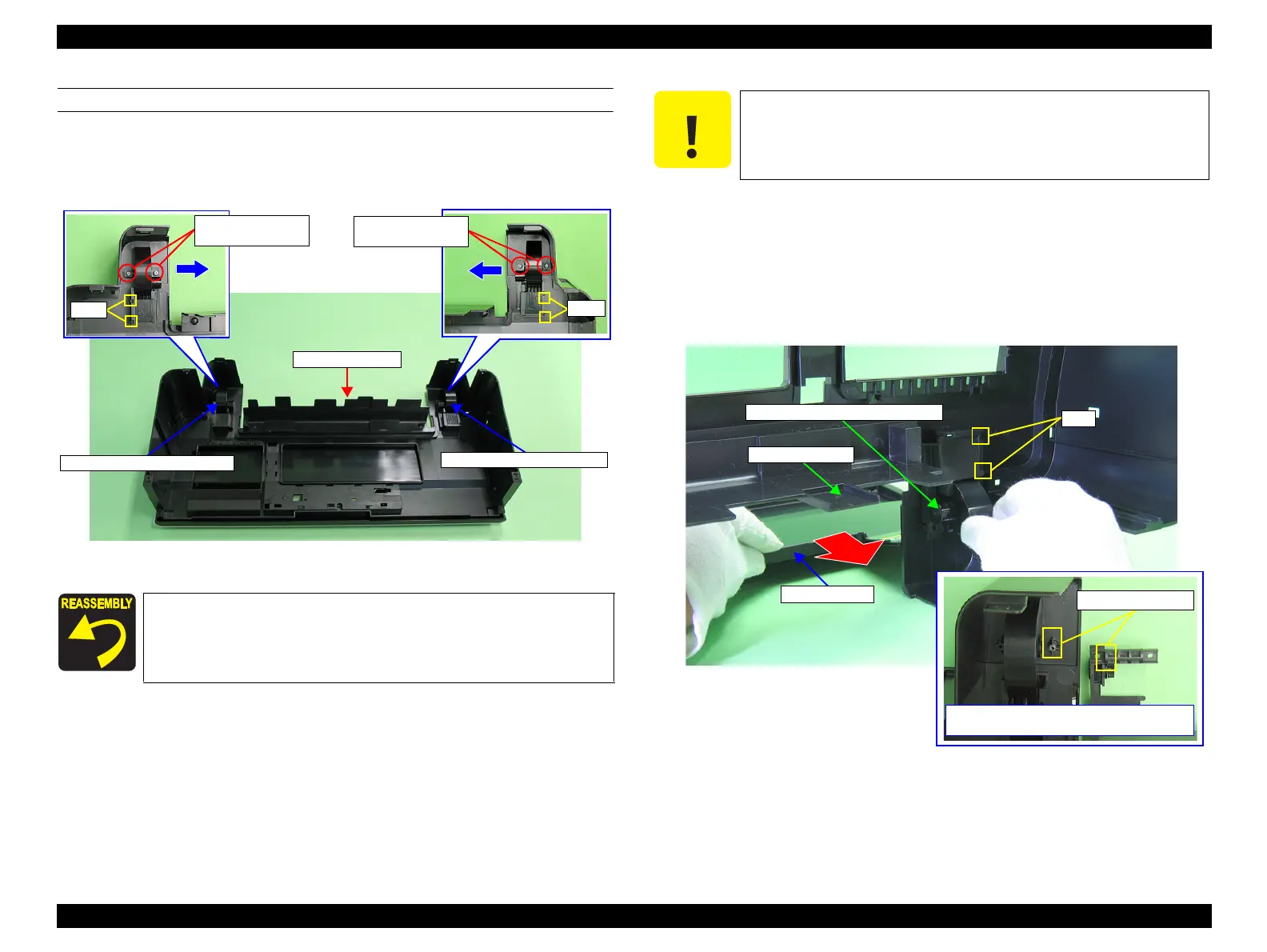

Figure 4-20. Removing the Printer Cover Holder Left/Right
3. Remove the Printer Cover Holder Right following the steps below.
3-1. Open the Printer Cover and place the Upper Housing with its backside
down.
3-2. Pull the Printer Cover in the direction of the red arrow so as to prevent the
parts of the Printer Cover Holder Right and Upper Housing shown below
from interfering.
Figure 4-21. Removing the Printer Cover (1)
Insert the tabs (two each on the left/right) shown in Figure 4-20 into
the holes on the Upper Housing.
Tabs
Tabs
1) C.B.P. M3x10
(6±1 kgf.cm)
1) C.B.P. M3x10
(6±1 kgf.cm)
Upper Housing
Printer Cover Holder Right
Printer Cover Holder Left
C A U T I O N
Be careful not to damage the surface in step 3 and later.
Printer Cover Holder Right
Printer Cover
Upper Housing
Interfering Parts of Printer Cover Holder
Right and Upper Housing.
interfering part
Tab

Epson Stylus Photo R2000 Series Specifications

General

Print Technology	Inkjet
Max Print Resolution	5760 x 1440 optimized dpi
Number of Ink Colors	8
Borderless Printing	Yes
Operating Systems	Windows, Mac OS
Ink Type	UltraChrome Hi-Gloss 2
Ink Colors	Cyan, Magenta, Yellow, Red, Orange, Matte Black, Photo Black, Gloss Optimizer
Ink Droplet Size	1.5 picoliters
Connectivity	USB, Ethernet, Wi-Fi
Media Sizes Supported	4" x 6", 5" x 7", 8" x 10", 11" x 14", 13" x 19"
Media Types Supported	Plain paper, photo paper, fine art paper, canvas
Interface	USB, Ethernet
