EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Disassembly And Assembly Disassembling the Printer Mechanism 94
4.4.3 Printhead / CSIC Assy
1. Remove the Upper Housing / Printer Cover. (p.83)
2. Release the Carriage Lock, and move the Carriage Unit to the center.
(Refer to 4.1.6 Locking/Unlocking the Carriage and Opening/Closing the CDR
Tray Base (p.75))
3. Open the Ink Cartridge Cover.
4. Cut the Hinge, Cover Cartridge with a nipper or a similar tool and remove the
upper part of the Hinge, Cover Cartridge.
5. Remove the Ink Cartridge Cover from the Carriage Unit.
6. Disengage the hook from the lower part of the Hinge, Cover Cartridge using a pair
of Tweezers and remove the lower part of the Hinge, Cover Cartridge.

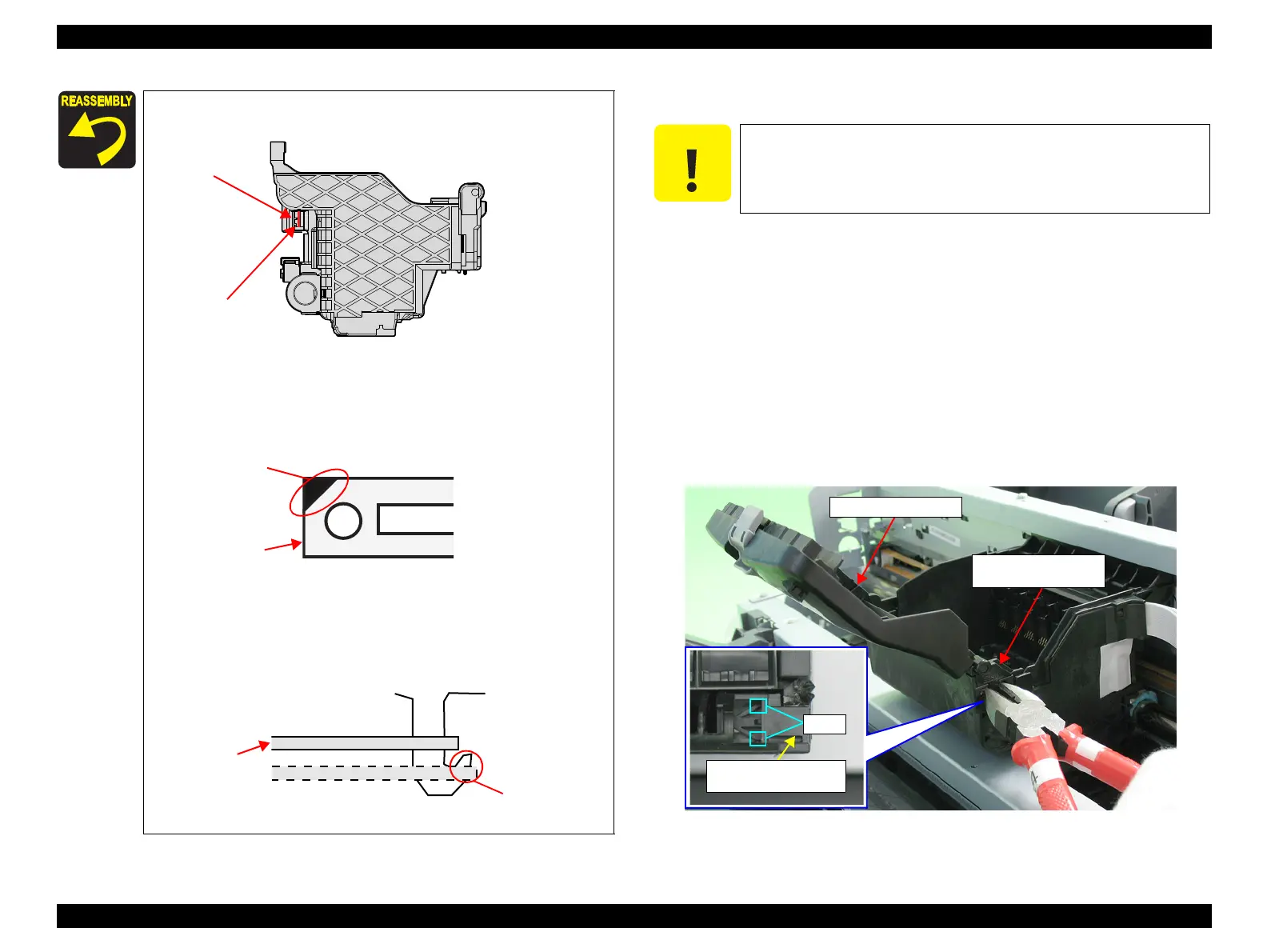

Figure 4-51. Removing the Hinge, Cover Cartridge
 Pass the CR Scale through the slot on the CR Encoder.
Figure 4-48. Reinstalling the CR Scale (1)
 Set the left end of the CR Scale with the black mark facing
upwards.
Figure 4-49. Reinstalling the CR Scale (2)
 Place the right end of the CR Scale correctly so that it is not
hooked onto the Right CR Shaft Mounting Plate.
Figure 4-50. Reinstalling the CR Scale (3)
CR Encoder
CR Scale
CR Scale
Black Mark
CR Scale
Hooked Portion
OK
NG
C A U T I O N
So as not to damage the FFC, do not use any tools with the sharp
ends when removing the Cable Holder.
Hinge, Cover Cartridge
lower part
Hook
Ink Cartridge Cover
Hinge, Cover
Cartridge upper part

Epson Stylus Photo R2000 Series Specifications

General

Print Technology	Inkjet
Max Print Resolution	5760 x 1440 optimized dpi
Number of Ink Colors	8
Borderless Printing	Yes
Operating Systems	Windows, Mac OS
Ink Type	UltraChrome Hi-Gloss 2
Ink Colors	Cyan, Magenta, Yellow, Red, Orange, Matte Black, Photo Black, Gloss Optimizer
Ink Droplet Size	1.5 picoliters
Connectivity	USB, Ethernet, Wi-Fi
Media Sizes Supported	4" x 6", 5" x 7", 8" x 10", 11" x 14", 13" x 19"
Media Types Supported	Plain paper, photo paper, fine art paper, canvas
Interface	USB, Ethernet
