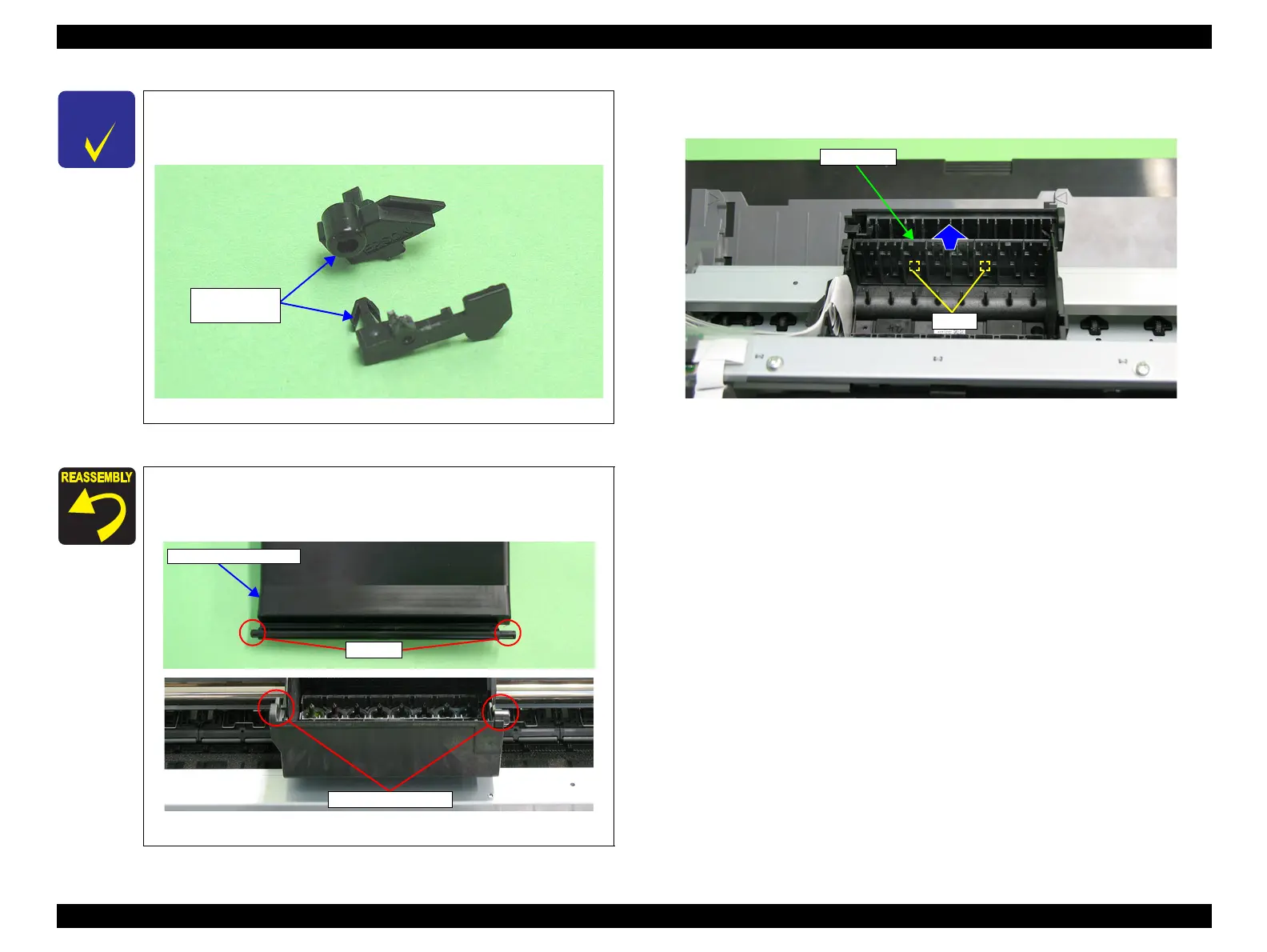

7. Disengage the two hooks that secure the Ink Guide and remove the Ink Guide from
the Cartridge Unit.
Figure 4-54. Removing the Ink Guide
C H E C K
P O I N T
The Hinge, Cover Cartridge can not be removed without damaging
it. Whenever replacing the Printhead, the Hinge, Cover Cartridge
must be also replaced with a new one.
Figure 4-52. Hinge, Cover Cartridge
Engage the two dowels of the Ink Cartridge Cover with the
installation holes on the Carriage Unit and Hinge, Cover Cartridge
(one each).
Figure 4-53. Reinstalling the Ink Cartridge Cover
Hinge, Cover
Cartridge
Dowels
Ink Cartridge Cover
Dowels
Installation holes
Ink Guide
Hook
