4.6.4 CDR Sensor
1. Remove the Paper EJ Frame Assy / Front Cover / CDR Tray Base. (p.114)
2. Disengage the two hooks that secure the CDR Sensor and remove the CDR
Sensor.

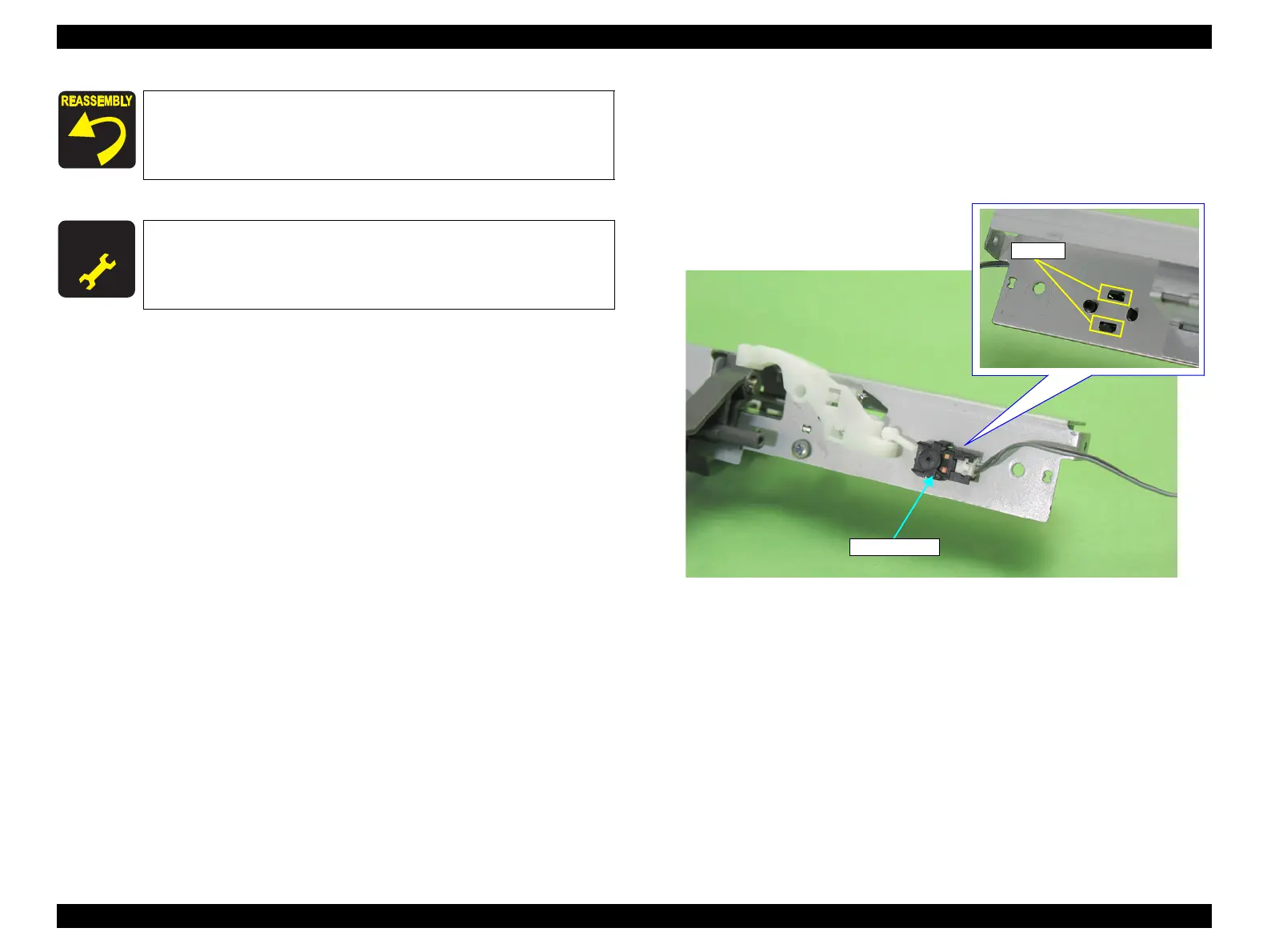

Figure 4-170. Removing the CDR Sensor
Make sure that the FFC is routed as shown in Figure 4-169
A D J U S T M E N T
R E Q U I R E D
After replacing or removing the Ink Mark Sensor and the PW Sensor,
always make the required adjustments referring to the following.
•“Chapter 5 Adjustment (p.139)”
Hooks
CDR Sensor
