9.2.3 Ink Cartridge
Describes the specification of the ink cartridge.
Product numbers of the EPSON ink cartridges
9.2.4 Operation Buttons & Indicators (LEDs)
Operation Buttons
This printer has the following six operation buttons.
Indicators (LEDs)
Thirteen indicators (LEDs) are provided to indicate settings or printer status.
Note "*": See Table 9-5 "Indicators (LEDs) Function" for the LED status at error occurrence.

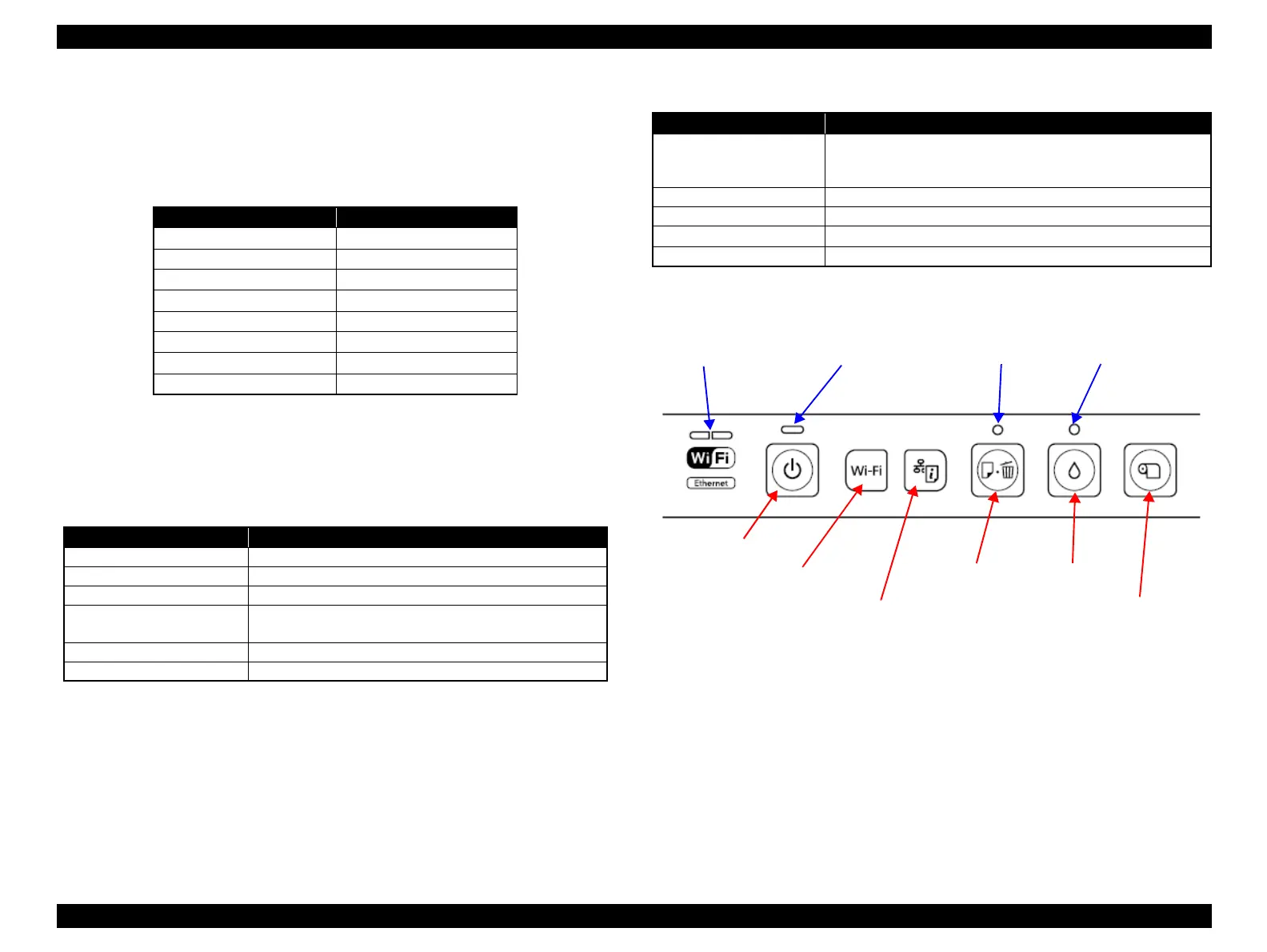

Figure 9-2. Button & Indicators (LEDs)
Table 9-1. Product No. of Ink Cartridges
Color Code
Photo Black T3**1
Matte Black T3**8
Cyan T3**2
Magenta T3**3
Yellow T3**4
Orange T3**9
Red T3**7
Gloss Optimizer T3**0
Table 9-2. Operation Buttons
Button Function
Power Turns the power ON/OFF.
Paper Feeds or ejects paper.
Ink Runs a sequence of ink cartridge replacement or cleaning.
Roll Paper Prints the cutting line on the roll paper or feeds the paper
backwards out of the printer.
Network status sheet Prints the network status sheet.
Wi-Fi Adjust setting for connection to wireless LAN.
Table 9-3. Indicators (LEDs)
LED Function
Power LED (Blue) Lights at power-on.
Flashes during some sequence is in progress.
Flashes at high speed during power-OFF sequence.
Ink LED (Orange) Lights or flashes when an ink-related error occurs.*
Paper LED (Orange) Lights or flashes when an paper- or CDR-related error occurs.*
Cartridge LED (Orange) x 8 Indicates an ink-related error of each ink cartridge.*
Network LED (Blue) Lights or flashes during network sequence.
Power Button
Wi-Fi Button
Network status sheet Button
Paper Button Ink Button
Roll Paper Button
Network LED (Blue)
Power LED
Paper LED
Ink LED
