Epson Stylus Photo R2000 Series User Manual

EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Disassembly And Assembly Disassembling the Printer Mechanism 127
4.4.16 Release Holder Assy
1. Remove the APG Assy. (p.91)
2. Release the PE Sensor connector cable from the five tabs on the Release Holder
Assy.
3. Remove the three C.B.S. M3 x 6 screws that secure the Release Holder Assy.
4. Remove the three lower tabs of the Release Holder Assy from the Main Frame
with a flathead screwdriver, and remove the Release Holder Assy upwards.

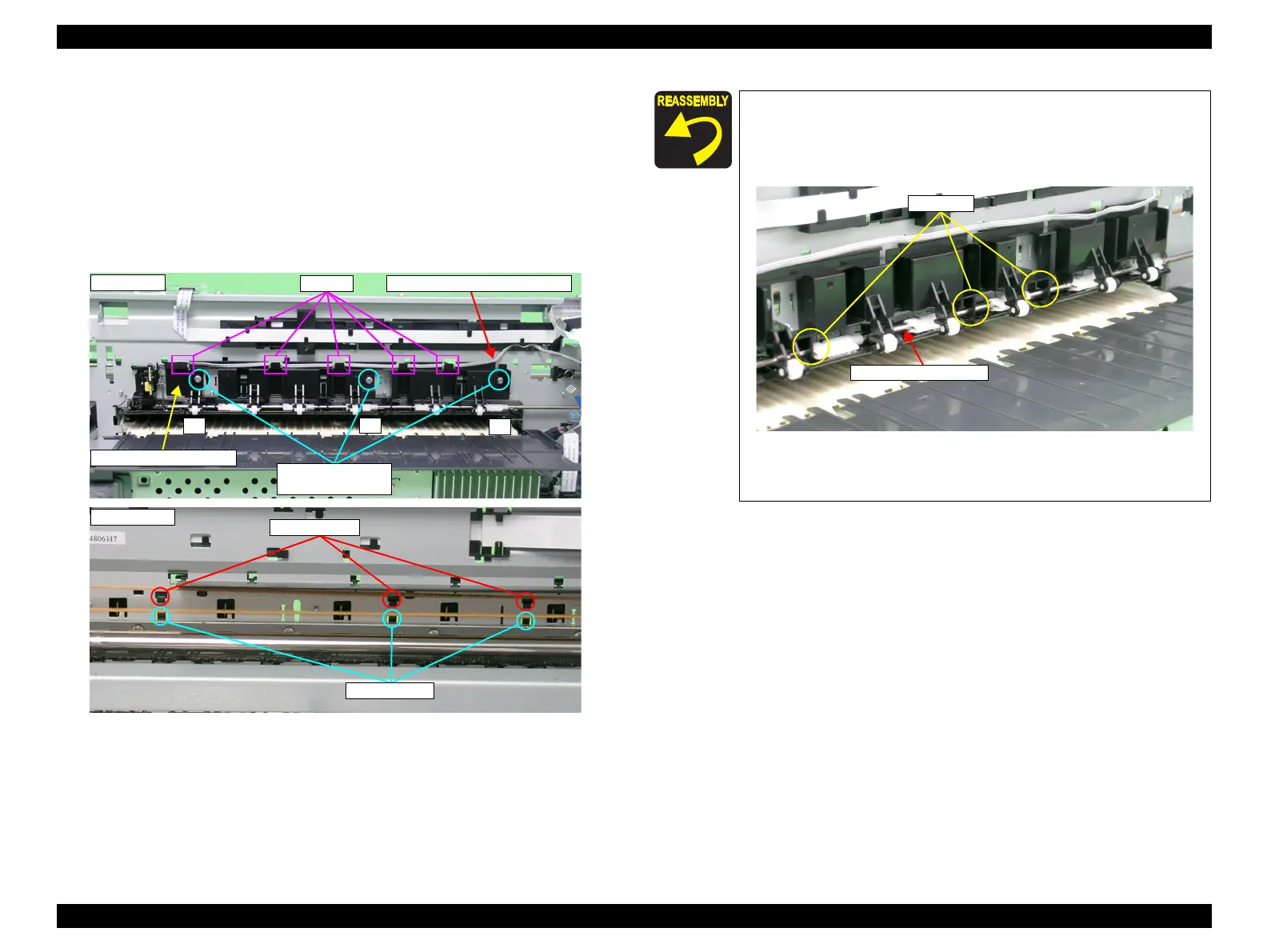

Figure 4-148. Removing the Release Holder Assy
2) C.B.S. M3x6
(8±1 kgf.cm)
1
2
3
PE Sensor connector cableTabs
Release Holder Assy
Rear side
Upper Tabs
Lower Tabs
Front side
 Align the three upper tabs on the Release Holder Assy with the
positioning holes on the Main Frame. See Figure 4-148.
 Fit the FLAG Release Shaft by the bushings on the Release
Holder Assy.
Figure 4-149. Reinstalling the Release Holder Assy
 Tighten the screws in the order shown in Figure 4-148
Bushings
FLAG Release Shaft

Epson Stylus Photo R2000 Series Specifications

General

Print Technology	Inkjet
Max Print Resolution	5760 x 1440 optimized dpi
Number of Ink Colors	8
Borderless Printing	Yes
Operating Systems	Windows, Mac OS
Ink Type	UltraChrome Hi-Gloss 2
Ink Colors	Cyan, Magenta, Yellow, Red, Orange, Matte Black, Photo Black, Gloss Optimizer
Ink Droplet Size	1.5 picoliters
Connectivity	USB, Ethernet, Wi-Fi
Media Sizes Supported	4" x 6", 5" x 7", 8" x 10", 11" x 14", 13" x 19"
Media Types Supported	Plain paper, photo paper, fine art paper, canvas
Interface	USB, Ethernet
