EPSON Stylus Photo R1900/R2880/R2000/R2000s/SC-P400 Series Revision I
Disassembly And Assembly Overview 76
C A U T I O N
When moving the Carriage Unit with the Front Cover and CD- R
Tray Base opened, turn the PG CAM (Right) beforehand so that
PG++ points downwards to release the PG in order to prevent
interference between the Paper EJ Frame Assy and Carriage Unit.

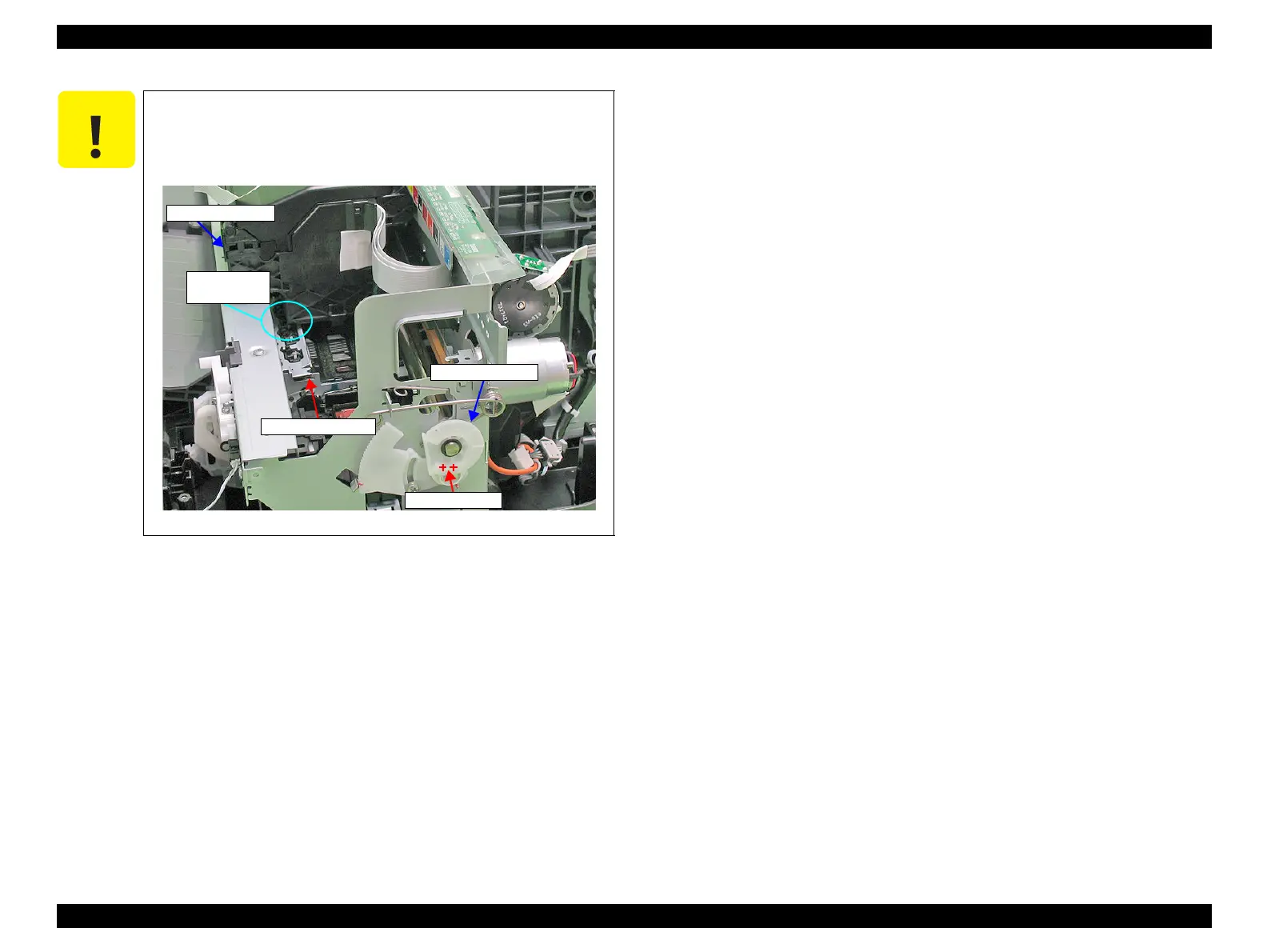

Figure 4-5. Interference between the Frame and Carriage Unit
PG++ position
PG Cam (Right)
Paper EJ Frame
Point of
Interference
Carriage Unit
