Chapter B: System setup & tuning ETEL Doc. - Operation & Software Manual # DSC2P 903 / Ver. F / 3/6/05

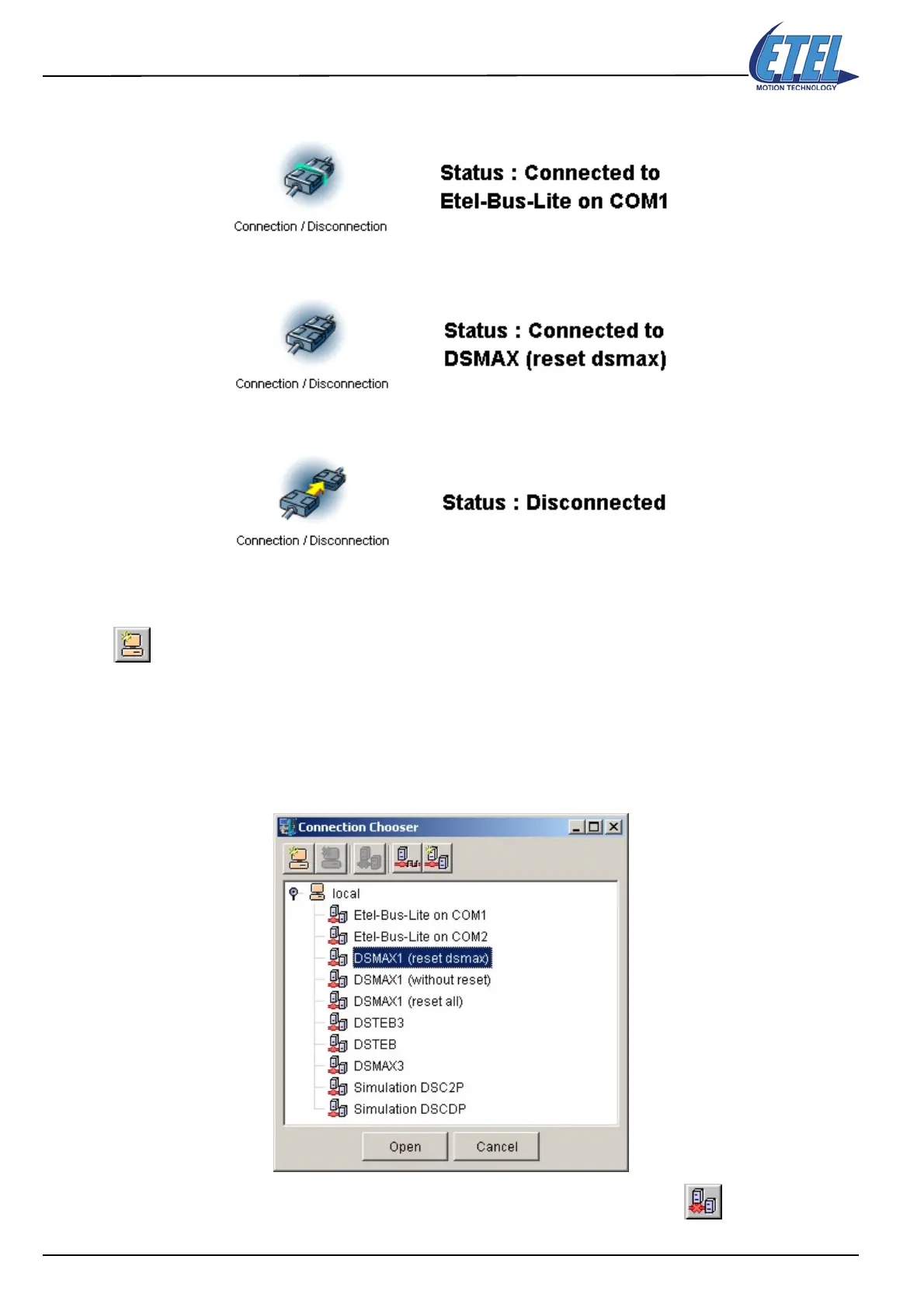

4°a The Main Menu window (in the background) appears. Status: Connected to .... appears on the window's
upper right corner:
4°b The Main Menu window (in the background) appears. Status: Connected to .... appears on the window's
upper right corner:
If the Connection Chooser window does not disappear, the communication is not established and Status:
Disconnected appears next to the Connection/Disconnection icon:
In this case, check the port selected on your PC (and your connection with the DSMAX if present), and retry to
set up the communication!
This button is used to connect a 'remote host' (PC, e.g).
To go back to the Connection Chooser window from the Main Menu window, click on the button Connection/
Disconnection, as shown above (or from any other tool, except the Download Wizard), click on File in the menu
bar and select Connection Chooser. (shortcut: Ctrl-E).
If you go back to the Connection Chooser window, DSMAX1 (reset DSMAX) is in bold, indicating that the
DSMAX1 communication is running:
To stop the DSMAX1 (reset DSMAX) communication, click on the following button:
