8.4.3 Digital oscilloscope
The two-channel digital oscilloscope allows the user to view the value versus time of any M, K or X register
(M = monitoring, K = parameter, X = user variable). The register's type (ex: M), number (ex: 6), and name (ex:
theoretical position with SET/scal/map) and unit (ex:
µ m) are also displayed.

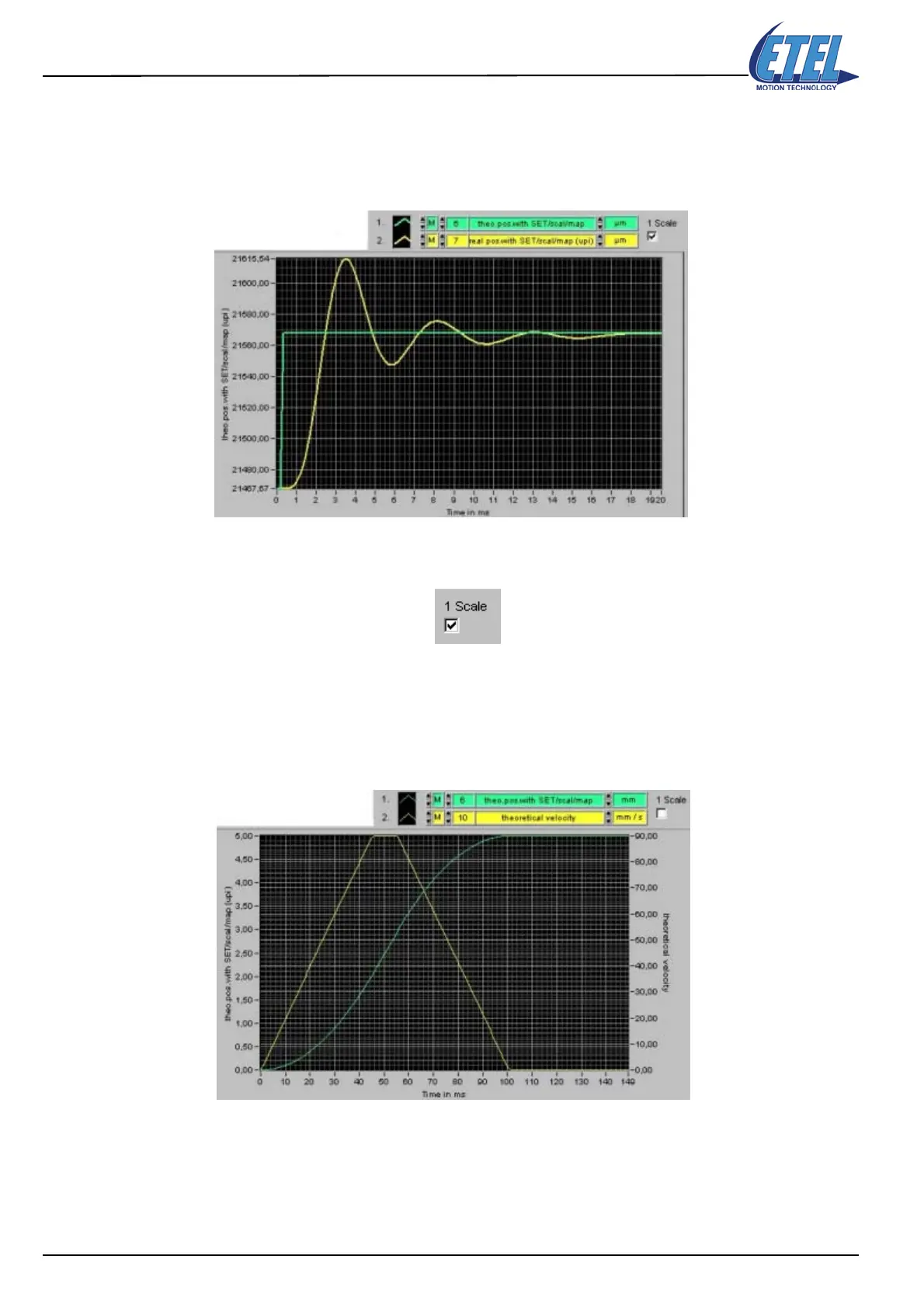

The Single scale display is
selected by default:
To measure the two registers displayed, it is possible to have a dual scale by unticking the box above.
In this window, the Dual scale mode is selected. The 2nd scale is on the right side of the Scope:
