8.6 Editor tool
The Editor tool is used to communicate with the controller. It allows the user to create (write), open or modify
the sequences / registers (*.par, *.seq, or *.txt files) and to download them into the controller. It allows the user
to also upload the sequences / registers present in the controller. All commands and the registers syntax are
described in this ’Operation & Software Manual’.

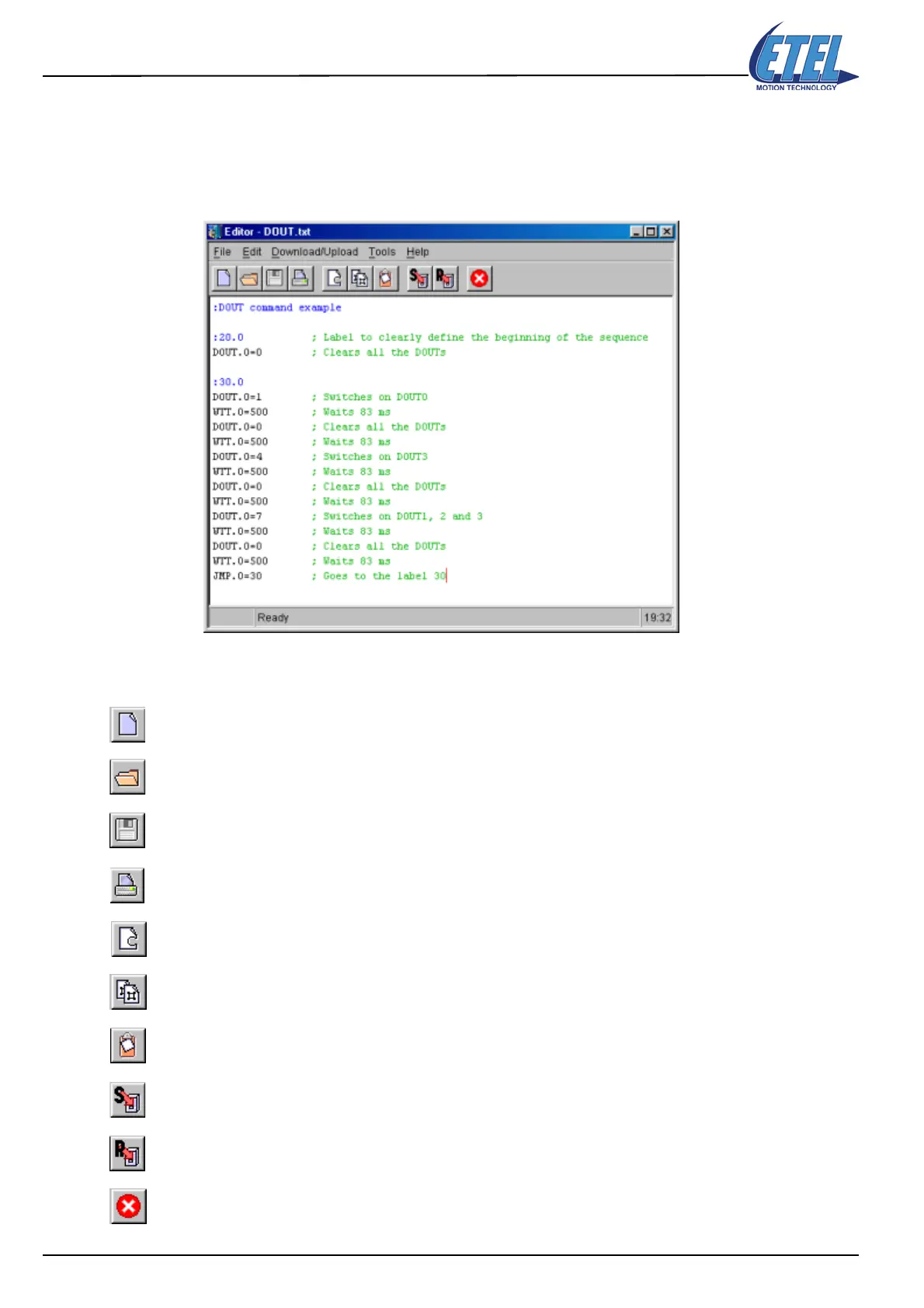

8.6.1 The icons bar
New blank editor window.
Open a text file (.txt) in the editor window.
Save the editor window contents.
Print the editor window contents.
Cut the selected text on the editor.
Copy the selected text on the editor.
Paste the last text selection on the editor.
Download the Sequence present on the editor window into the controller.
Download the Registers present on the editor window into the controller.
The 'emergency stop' button (similar to HLO command) stops the progression of the user's
sequence and switches off the power in the motor phases. It is used in case of emergency
(unexpected motor noise, e.g.). The Esc key on your keyboard has the same effect.
