Chapter B: System setup & tuning ETEL Doc. - Operation & Software Manual # DSC2P 903 / Ver. F / 3/6/05
8.3.1 Drive selection

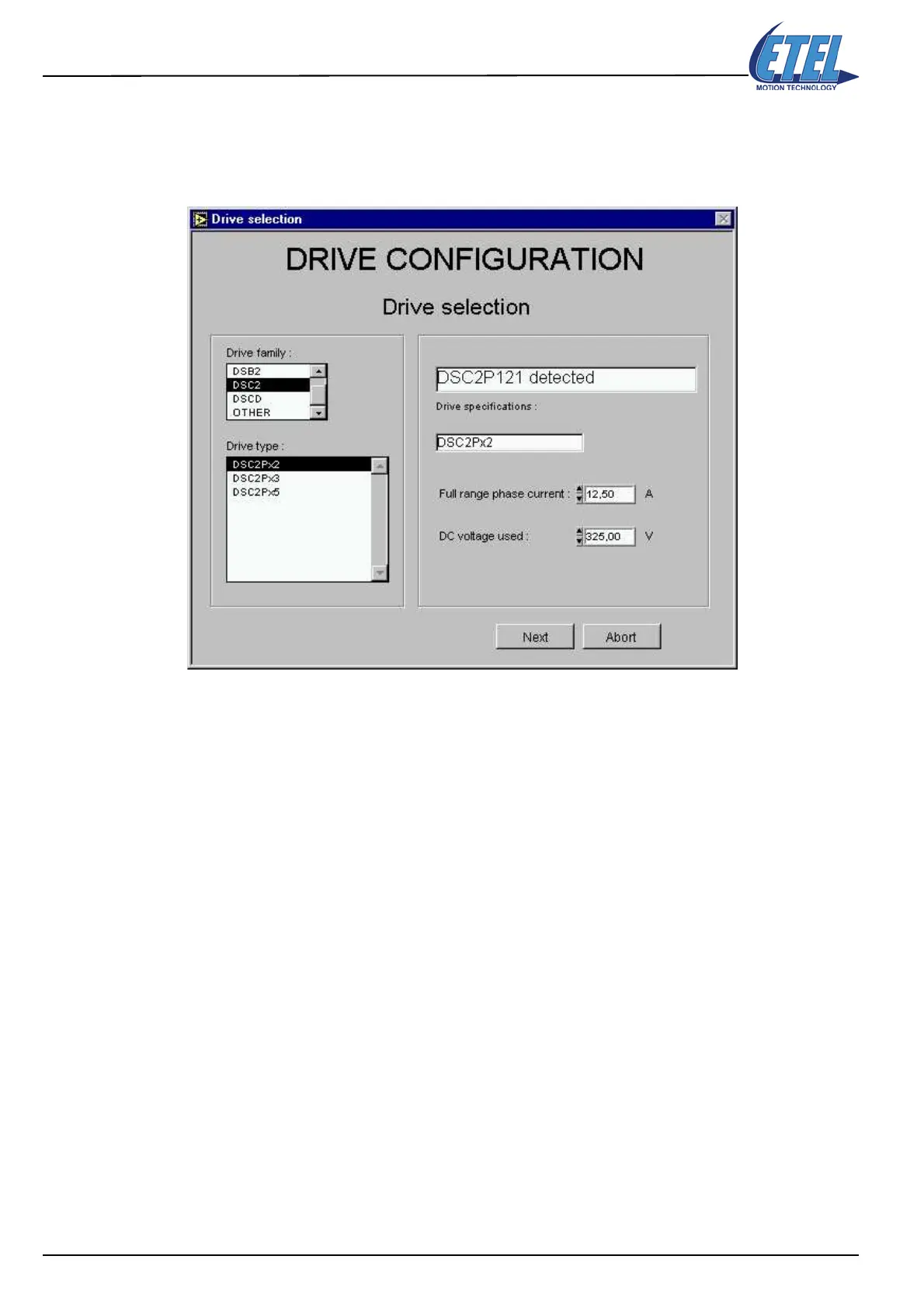

ETT detects automatically which controller type is connected to the DSMAX (with the TEB). The drive type
(here: DSC2Px2) and its main specifications (bus voltage = 325 VDC / Max. measurable current = 12.5 A) are
displayed:
• Check that all data fits to your controller's characteristics.
• Click on the NEXT button and the next window will appear.
Remark: Full range phase current (measurable) Peak current
DSC2Px2 12,5 [A] 11 [A] for 2 [sec] (with 3-phase motor)
DSC2Px3 25 [A] 21 [A] for 2 [sec] (with 3-phase motor)
DSC2Px5 66,67 [A] 56 [A] for 1[sec] (with 3-phase motor)
...
DSCDPx2 12,5 [A] 11 [A] for 2 [sec] (with 3-phase motor)
...
The DC voltage used value will influence the phasing parameters (K90 to K98 and K101).
