mixEr
For the machines dispensing instant drinks,
disassemble the parts:
1. detach the tubes from the connections of
mixers
2. turn the mixer fastening ring nut counter-
clockwise and remove the mixer
Pay special attention when re-closing it
completely during re-assembly;
3. separate the instant powder funnel, the
powder deposit drawer and the water
funnel
4. disassemble the impellers: pull slightly to
release them.
2
3
2

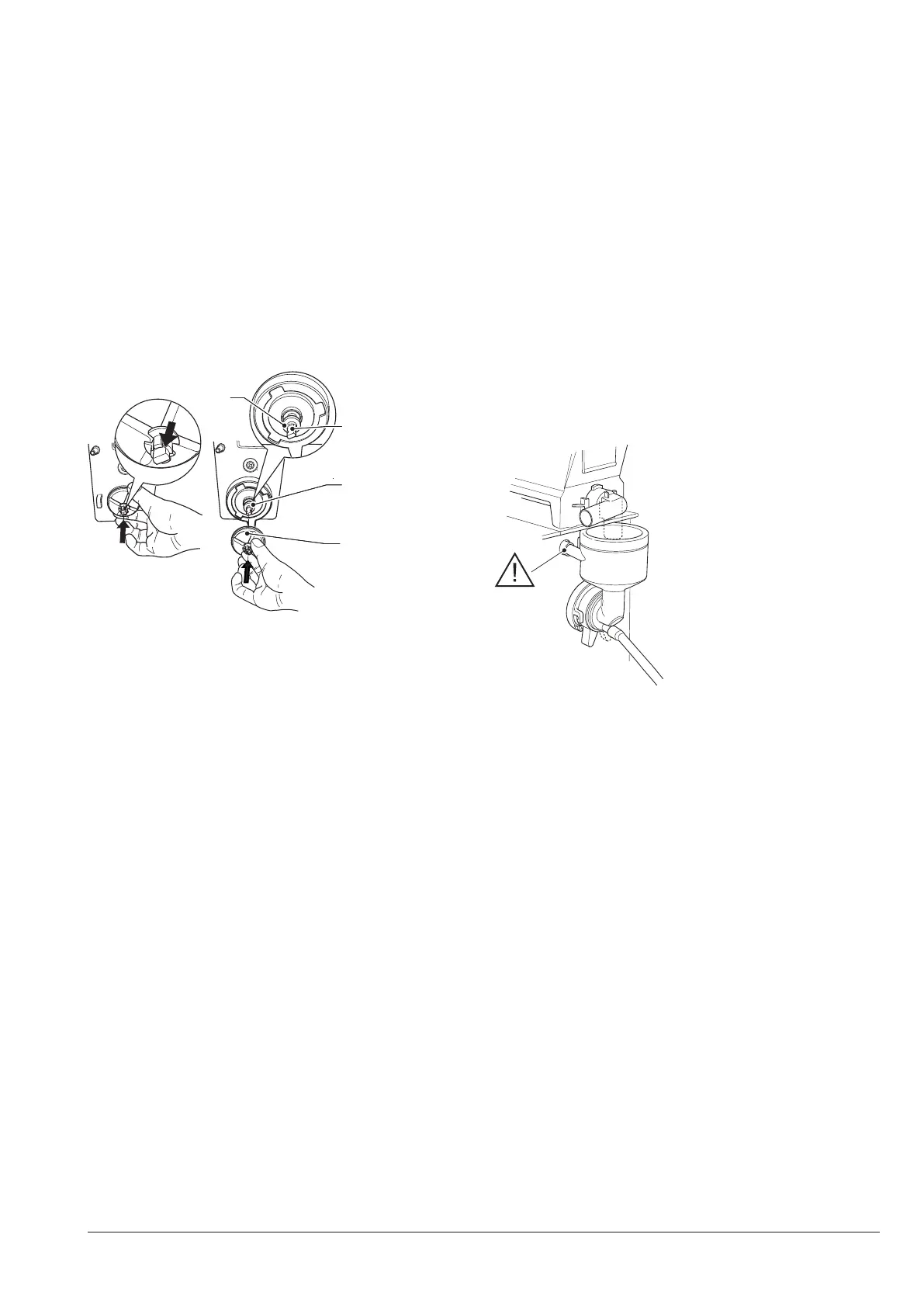

Fig. 43
1. Impeller
2. Stuffing gasket
3. Shaft undercut
5. dip the components into a canister with
the sanitising solution you have prepared
before for about 20 minutes;
Wash all the components by using
sanitising products (observe the dosage
recommended by the producer). Make
sure that all visible residues and films are
mechanically removed. Use pipe clean-
ers and brushes, if necessary.
6. check the state of wear of the seal gas-
ket on the whipper motor shaft.
If it is worn, torn and no longer elastic,
replace it.
7. reassemble the powder deposit draw-
ers and the powder funnels after having
carefully rinsed and dried them up;
8. re-position the mixer.
Make sure that the water funnel is prop-
erly inserted.
Fig. 44
9. rotate the ring nut intended to fasten the
water funnel clockwise to secure the
mixer to the machine
After having reassembled the parts, act
as follows, any way:
Wash the mixers and add some drops of
the sanitising solution into the various fun-
nels. Then rinse abundantly to remove any
residue of the solution in use.
