EVOCA Opera Touch - Hydraulic Circuit Diagram

02-2023 6095 00
HYDRAULIC CIRCUIT
2
1
3
6
4
7
8
5
9
10
11
12
13

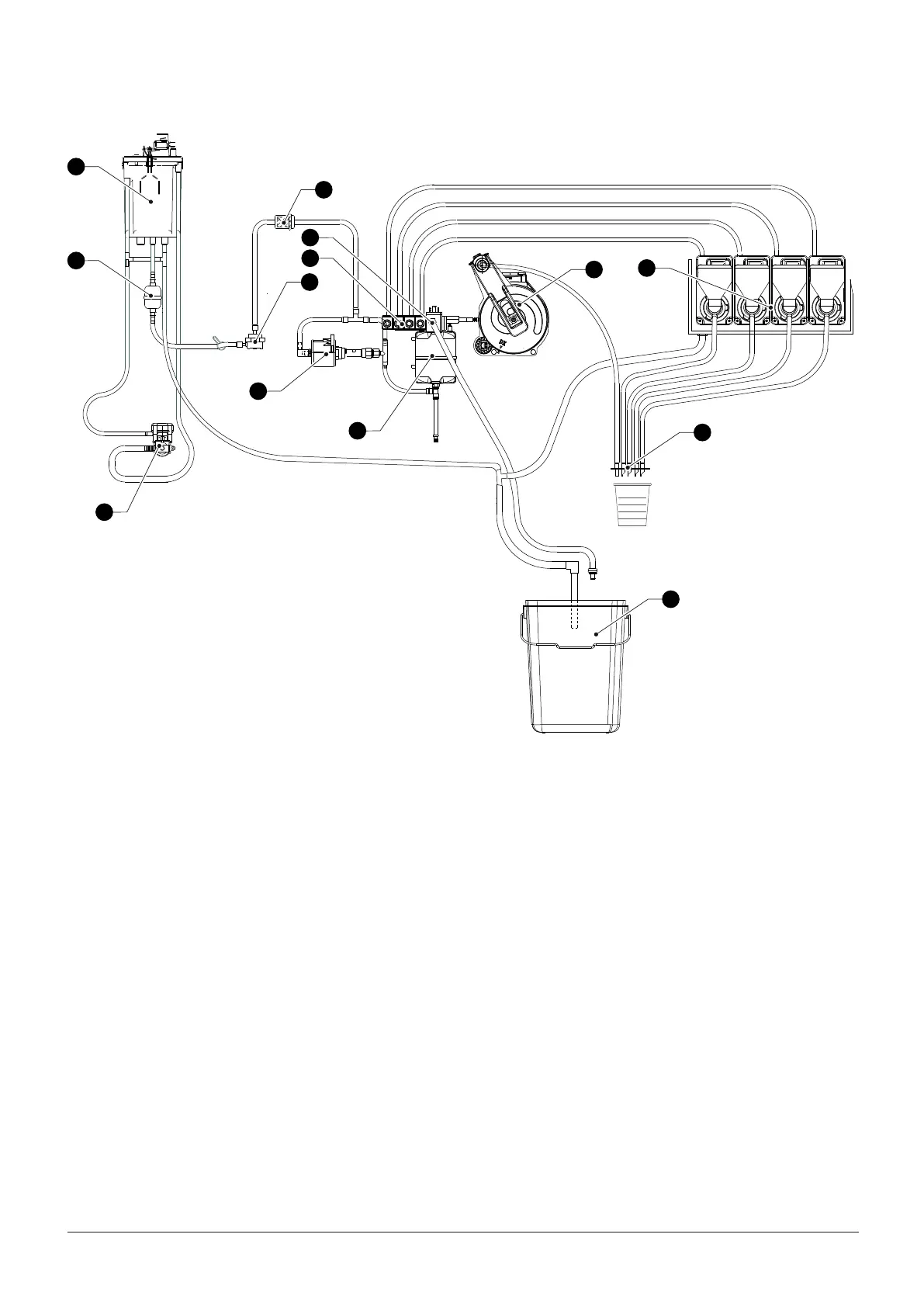

Fig. 1
1. air-break
2. mechanical filter
3. water inlet solenoid valve
4. volumetric counter
5. pump
6. dampening filter (models with automatic grinding regulation only)
7. espresso solenoid valve
8. instant solenoid valves
9. boiler
10. brew unit
11. mixer
12. nozzles
13. liquid waste bucket
