profiles (QP1 through QP4 or QP8) that allow access, within the bandwidth and priority constraints
defined by the QoS profile. An access rule intended to deny access from one endpoint to another is
implemented in the EPICenter Policy Manager using the “blackhole” QoS profile.
IP-based QoS policies (or Access List policies) are supported on Extreme devices running ExtremeWare
5.0 or later— all i-series devices, and non-i-series devices running ExtremeWare 5.0x. This means that all
devices in the scope for an IP policy must be running ExtremeWare 5.0 or later.
Source Port Policies
A Source Port policy identifies traffic originating from a specific port on an Extreme switch, and assigns
that traffic to a QoS profile. In the policy definition, you specify as endpoints the specific ingress ports
from which the traffic will originate. As shown in Figure 75, a source port policy is always uni-
directional and implements Source Port QoS on the traffic flow from the specified source port.

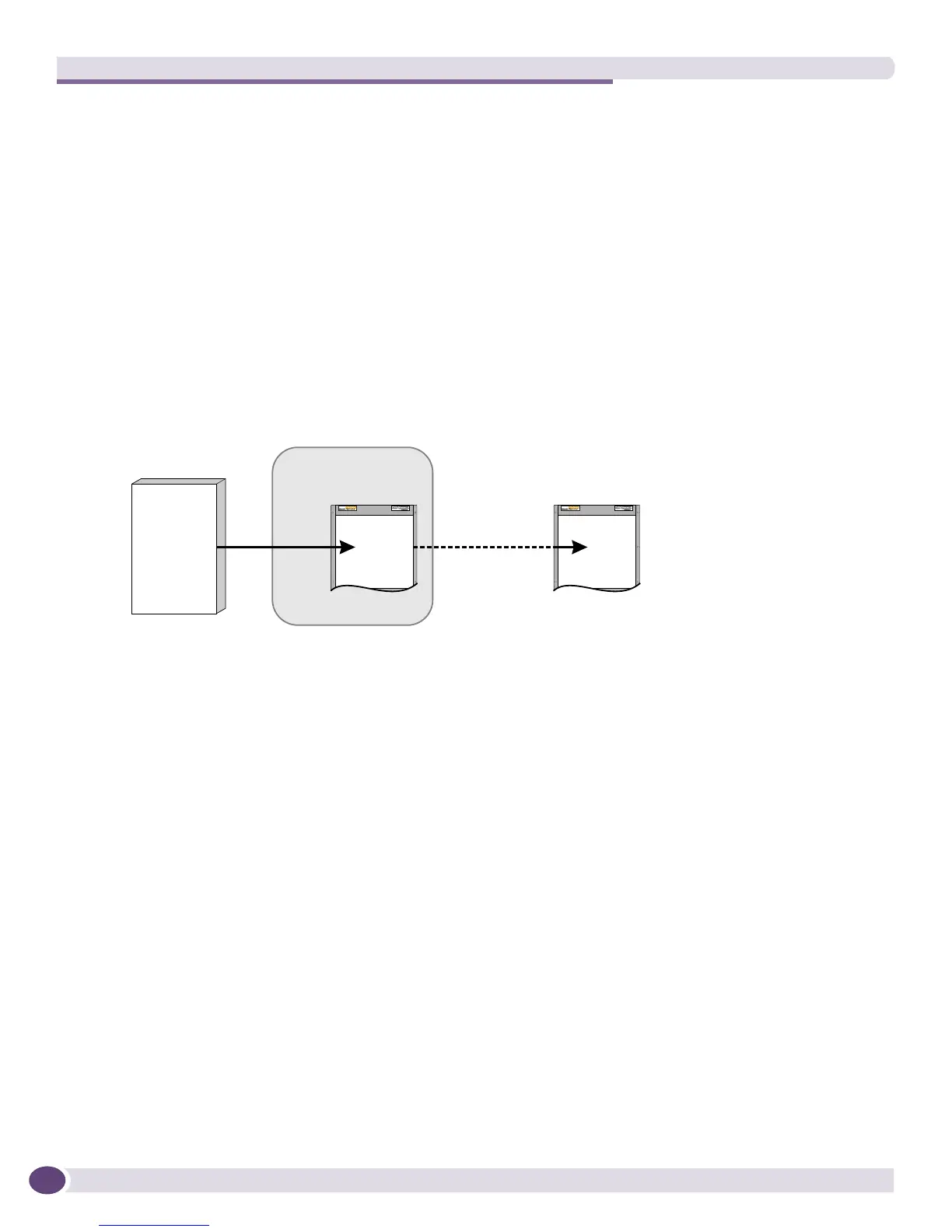

Figure 75: Source Port policy
You can specify multiple source ports in a single policy, and you can specify them by providing higher-
level resources such as a host name, user name, or a group, as long as the resources can be mapped by
the Policy Manager to a port on a switch. If you specify a group, only the resources within the group
(and its subgroups) that map to source ports will be used as policy endpoints.
In the case of source port QoS, the endpoint specification and the scope are theoretically redundant,
because the endpoint specification effectively defines the scope of the policy. However, you must
specify both the endpoint and the policy scope. If there are devices in the policy scope (for example,
when the scope resource is a group) that are not related to the ports specified as endpoints. These will
not be affected by the source port policy definition. For more details, see “Policy Access Domain and
Scope” on page 172.
Unlike IP QoS, a Source Port QoS rule is implemented only on the device where the source port resides.
However, you can enforce QoS throughout the network using 802.1Q tagging—specifically by explicit
packet marking using 802.1p or DiffServ. If the switch ports used for output use 802.1Q tagging, the
QoS profile assignment will be carried via the 802.1p priority bits to the next switch. On i-series chipset
devices, you can also enable DiffServ examination and replacement to observe and carry the QoS setting
with the packet between switches. The use of 802.1p priority bits is enabled when you enable tagging,
which you can do using the EPICenter VLAN Manager applet. DiffServ examination must be enabled
using the ExtremeWare CLI or through ExtremeWare Vista. See the ExtremeWare Software User Guide for
versions 6.0 or later for details on using 802.1p and DiffServ.
Source port QoS policies are supported on Extreme devices running ExtremeWare 5.0 or later— all i-
series devices, and non-i-series devices running ExtremeWare 5.0. This means that the endpoints used to
define Source Port policies must be on devices running ExtremeWare 5.0 or later.
XM_018
Server
Policy scope
IP address QP2 QP2
(802.1p tag)
