EAPS Protocol Monitoring and Verification
EPICenter Concepts and Solutions Guide
89

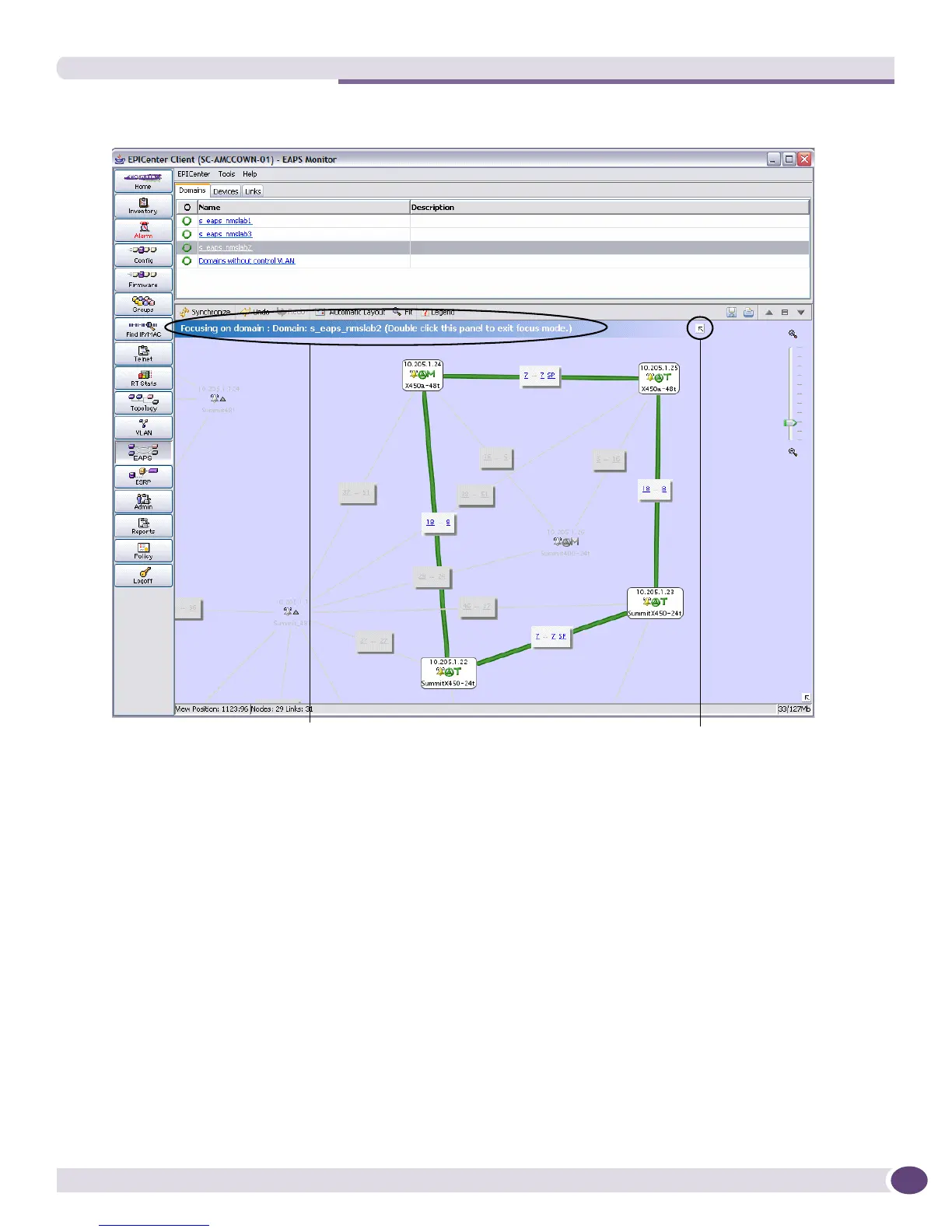

Figure 39: Focus mode on a domain
The blue bar at the top of the Viewport indicates that Focus Mode is in effect, and specifies the domain
that is currently in focus.
Exiting Focus Mode
To exit focus mode, double-click the blue Focus Mode indicator bar, or click the small boxed arrow at
the right end of the Focus mode bar.
EAPS Detail Status Displays
In addition to the EAPS Map, the EAPS Monitor provides a number of detailed status displays
concerning EAPS domains, devices and links.
The three tabs at the top of the EAPS Monitor main view (above the Viewport) basic status for the
EAPS domains by EPICenter, for all devices on the map, and for all links detected and shown on the
map. The Online Help or the EPICenter Reference Guide provide definitions of the fields and columns in
these tables.
Indicates Focus Mode is in effect
Exit Focus Mode
