DTP CrossPoint 84 Series Matrix Switchers • Operation 32

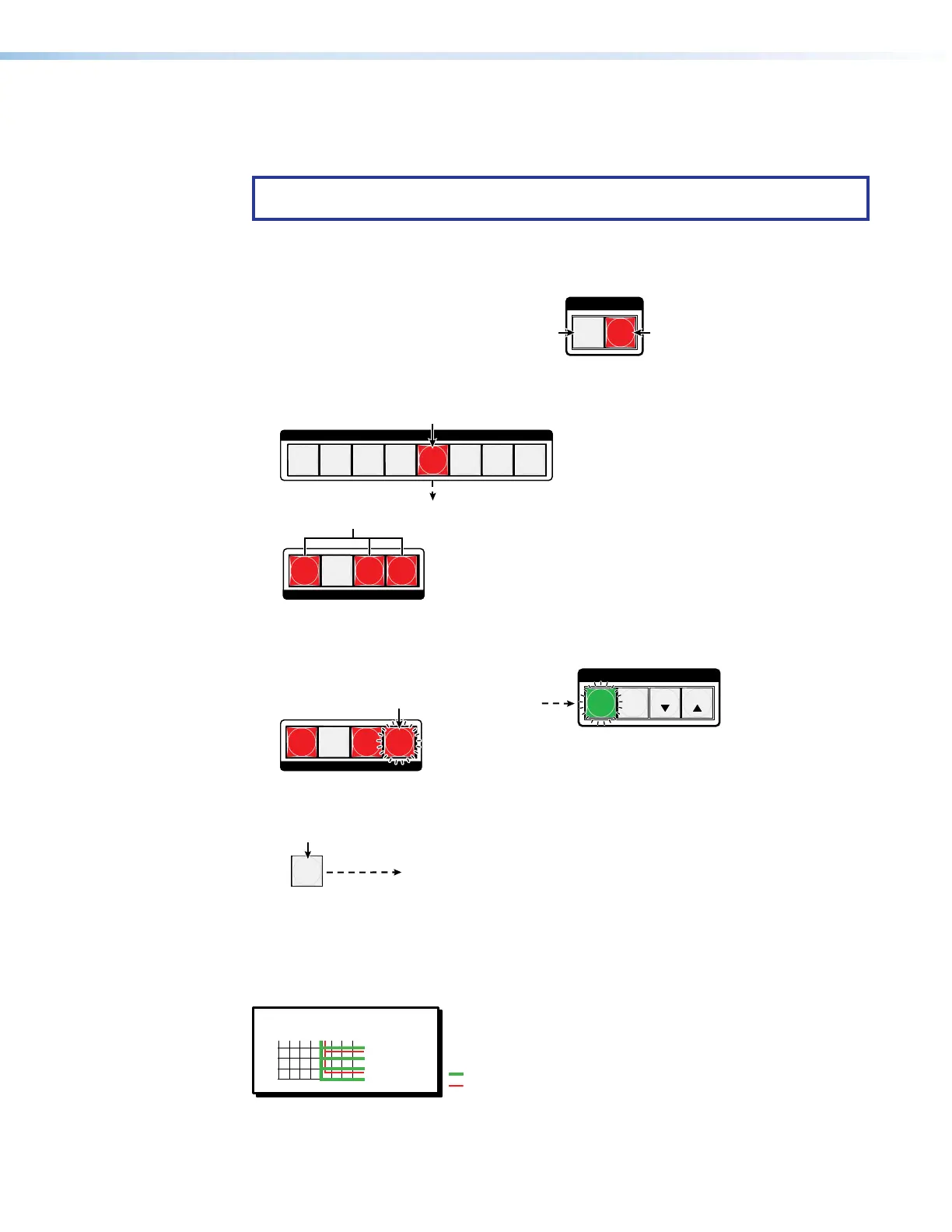

Example 3: Remove a tie from a set of ties
In the following example, an existing tie is removed from the current configuration. The
example shows the front panel indications that result from your actions.
NOTE: This example assumes that you have performed example 1 on page 31 and
example 2 on the previous page.
1.
Clear all selections
: Press and release the Esc button.
2.
Select audio only for the tie
: Press and release the Video button and the Audio
button as necessary to light Audio only.
I / O
VIDEO AUDIO
Press the Video button to toggle on and off.
The button is unlit or background illuminated when deselected.
Press the Audio button to toggle on and off.
The button lights red when selected.
3. Select an input: Press and release the input 5 button.
1
2
3
4
1
2
3
4
5
6
7
8
INPUTS
OUTPUTS
The Output 2 button does not light to indicate the tie
created in example 2 because that tie is video only.
The Output 1, Output 3, and Output 4 buttons light
red to indicate the audio ties created in example 1.
Press the button.
The button lights red.
4. Select the output: Press and release the Output 4 button.
C O N T R O L
PRESET ENTER
ESCVIEW
1
2
3
4
OUTPUTS
Press the button.
The button blinks red to indicate the pending change:
the audio input will be untied.
The Enter button blinks
green to indicate the need
to confirm the change.
5. Confirm the change: Press and release the Enter button.
ENTER
All input buttons and output buttons
return to unlit or background illumination.
Press the Enter button
to confirm the change.
The Enter button returns to
unlit or background illumination.
The current configuration (see figure21) is now:
• Video — Input 5 video is tied to output 1, output 2, output 3, and output 4.
• Audio — Input 5 audio is tied to output 1 and output 3.
Input
Output
1
3
4
2
5
Video
Audio
Figure 21. Final Configuration, Example 3
