DTP CrossPoint 84 Series Matrix Switchers • Operation 34
Example 4: Viewing video and audio, audio only, and video only ties
The following example shows viewing the video and audio, audio only, and video-only ties
in the current configuration. The steps show the front panel indications that result from your
action.
NOTE: This example assumes that you have performed example 1 on page 31,
example 2 on page 32, and example 3 on page 33.
1. Clear all selections: Press and release the Esc button.
2. Select View-only mode: Press and release the View button.
The View button lights red.

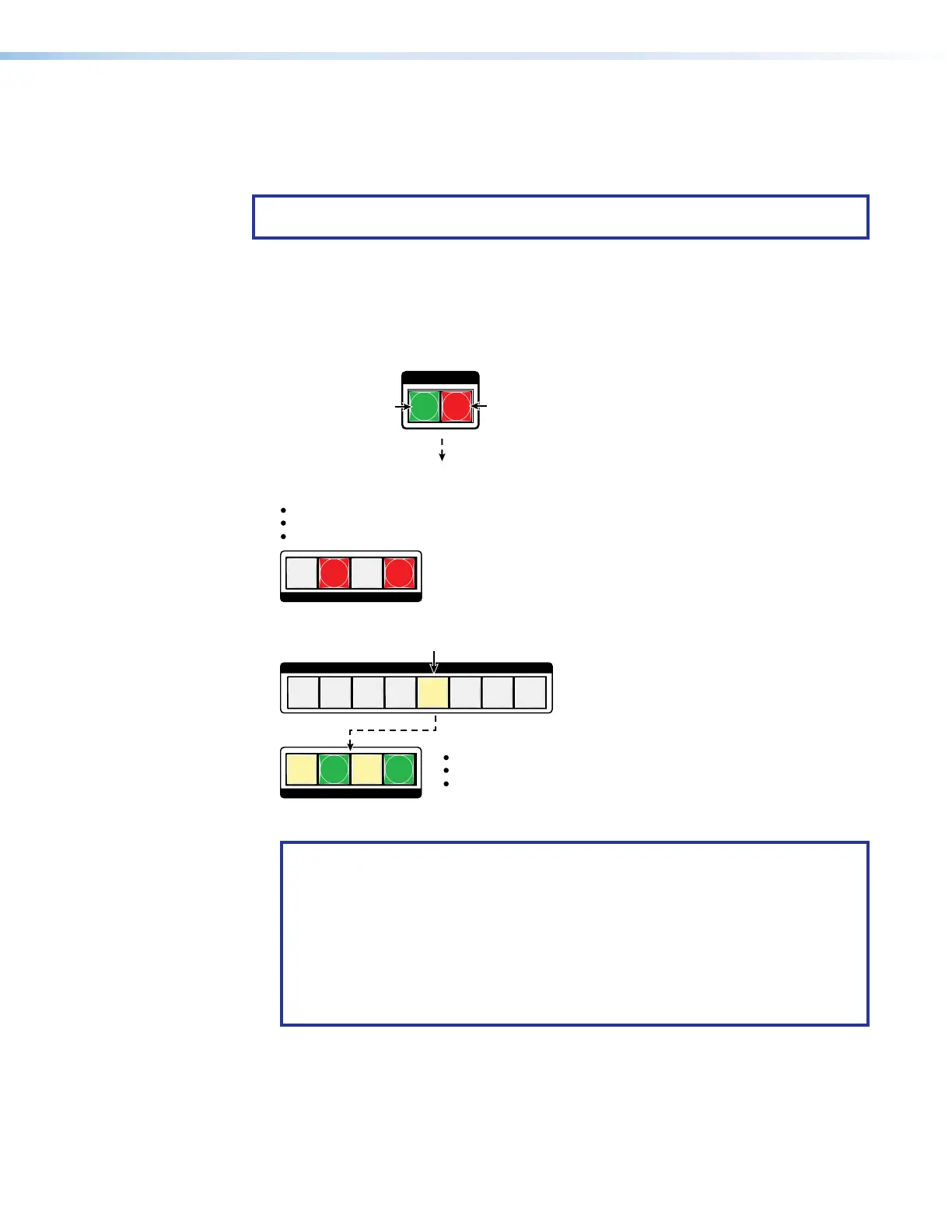

3. Select video and audio for viewing: Press and release the Video button and the
Audio button as necessary to light both.
I / O
VIDEO AUDIO
1
2
3
4
OUTPUTS
Until you select an input, the buttons for all untied outputs
light the appropriate color:
Amber if no inputs are tied (not shown in this example)
Green if no video inputs are tied (only audio is tied)
Red if no audio inputs are tied (only video is tied).
Press the Audio button
to toggle on and off.
The button lights red
when selected.
Press the Video button
to toggle on and off.
The button lights
green when selected.
4. Select an input: Press and release the Input 5 button.
1
2
3
4
5
6
7
8
INPUTS
1
2
3
4
OUTPUTS
The output buttons for outputs that are not tied to Input 5 are
either unlit or background illuminated.
The output buttons for outputs that are tied to Input 5
light or blink the appropriate color:
Amber for audio and video ties (audio follow)
Green for video ties (audio breakaway)
Red for audio ties (audio breakaway, not shown in this example)
Press the button. It lights amber.
NOTE: You can also view a set of ties by selecting a tied output. Demonstrate this
as follows:
• Note the number of a lit output button, then press and release the output
button for an untied (unlit or background illumination) output.
• Observe that all of the untied outputs light.
• Then press the output button that you noted previously.
• Observe that the selected output button, the tied input button (Input 5), and
the output buttons light for all of the outputs that are tied to the input.
