12 Eyecon 9420 & 9430 Instruction Manual
Introduction
2 Introduction
2.1 Video training
Visit eyeconvpc.com and go to Support or Click/Copy this URL into your browser to
see the full list of training videos for the Eyecon 9420: https://www.youtube.com/
watch?v=ysdKd1Q1iME&list=PLl-hAOdLOPokPO52rWfNTPbP0rK9RG_ap.
2.2 General description
Refer to the diagram below for part descriptions and field replaceable and non-field
replaceable parts.
2.2.1 Product identification
Each Eyecon has a specific part number and a unique serial number. Please refer to
Figure 2.1.

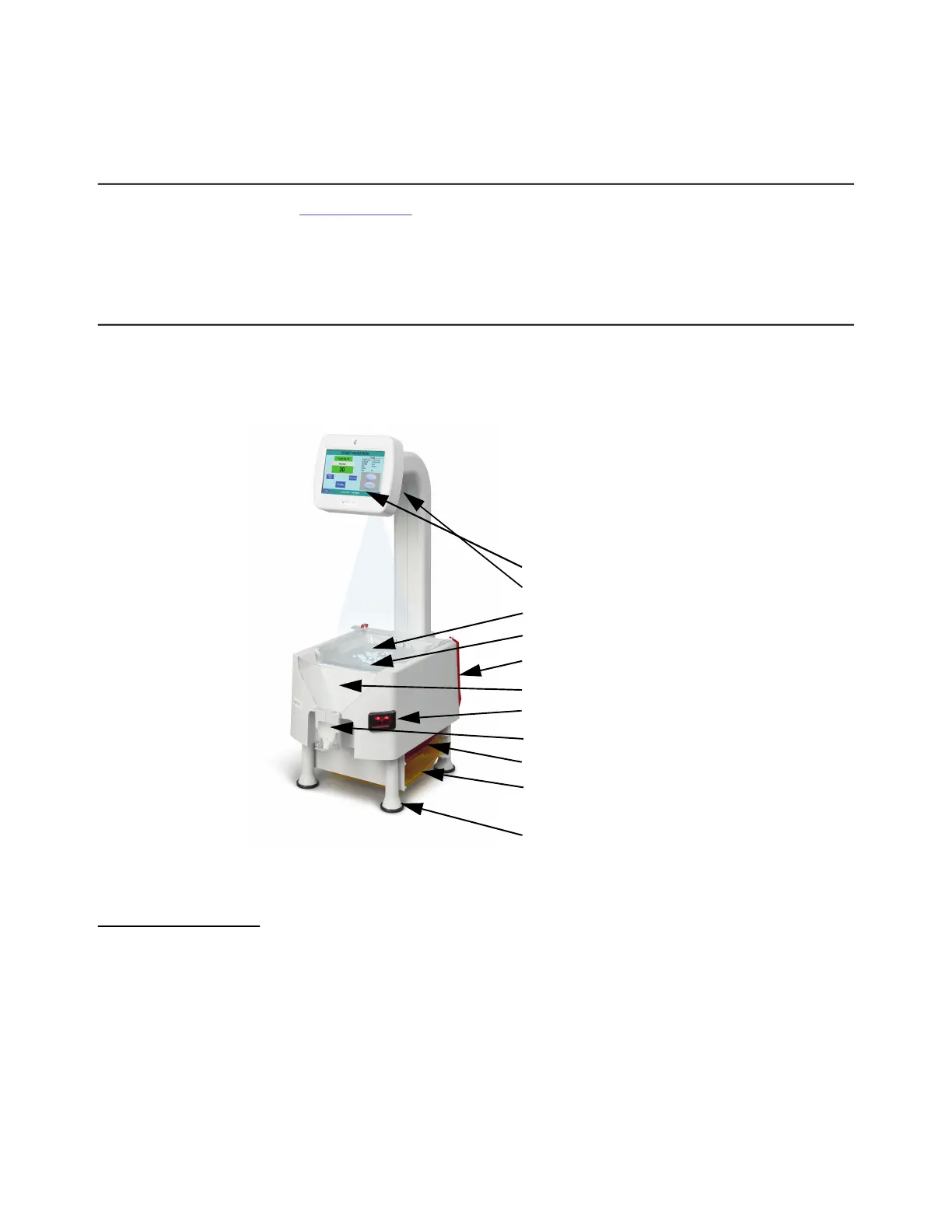

Figure 2.0 Eyecon 9420
Description Part Number
1 Touch Screen Interface N/A
2 Infra Red Camera N/A
3 Rapid Fill Platter AWT05-100243
4 Infra Red Emitter N/A
5 (2) Spatula AWT05-100232
6 Clear Funnel Face 249400-304A0
7 Barcode Scanner N/A
8 Funnel Slide Gate AWT05-100234
9 Penicillin Platter (Red)
AWT05-509563
Sulfa Platter (Yellow) AWT05-509564
Hazardous Platter (Blue) AWT05-059561
10 Leg Assembly 249400-304A0
