18 Eyecon 9420 & 9430 Instruction Manual
Introduction

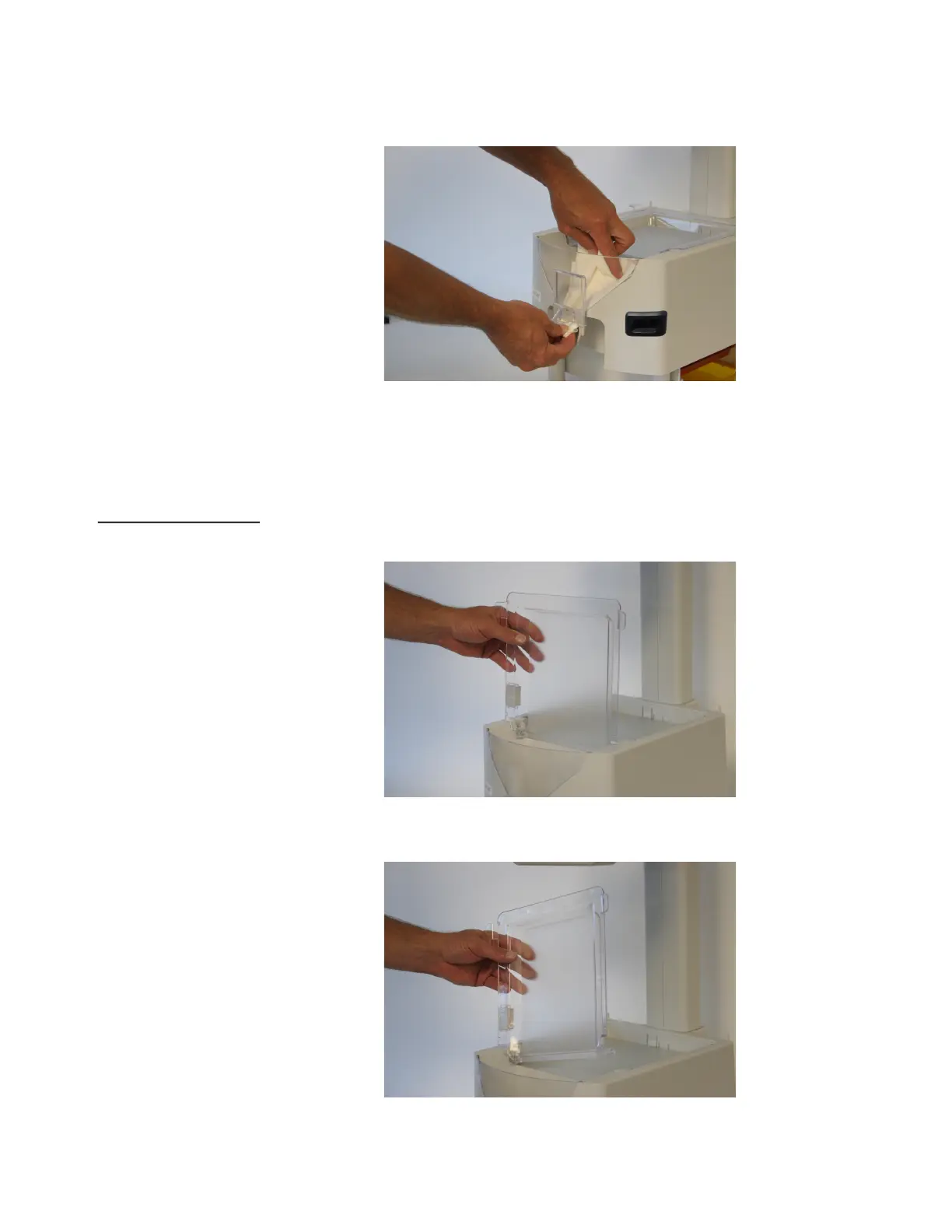

5. Reinstall the funnel gate by guiding it over the top of the rails on each side of
the funnel opening, sliding it down until it clicks past the retaining bump and
lowers to cover the opening.
6. The gate should drop freely on its own. If the funnel gate sticks, check for burrs
in the plastic on the edge of the housing slide rails. If any are found, carefully
scrape or file them off to improve the slide action.
2.7.2 Rapid fill counting tray
1. Lift the counting tray up to a vertical position.
2. Tilt the tray to the left, the right side should pull out of the enclosure.
