ST80/ST80L Flow Meter APPENDIX B – ADDITIONAL INFORMATION

Fluid Components International LLC 131

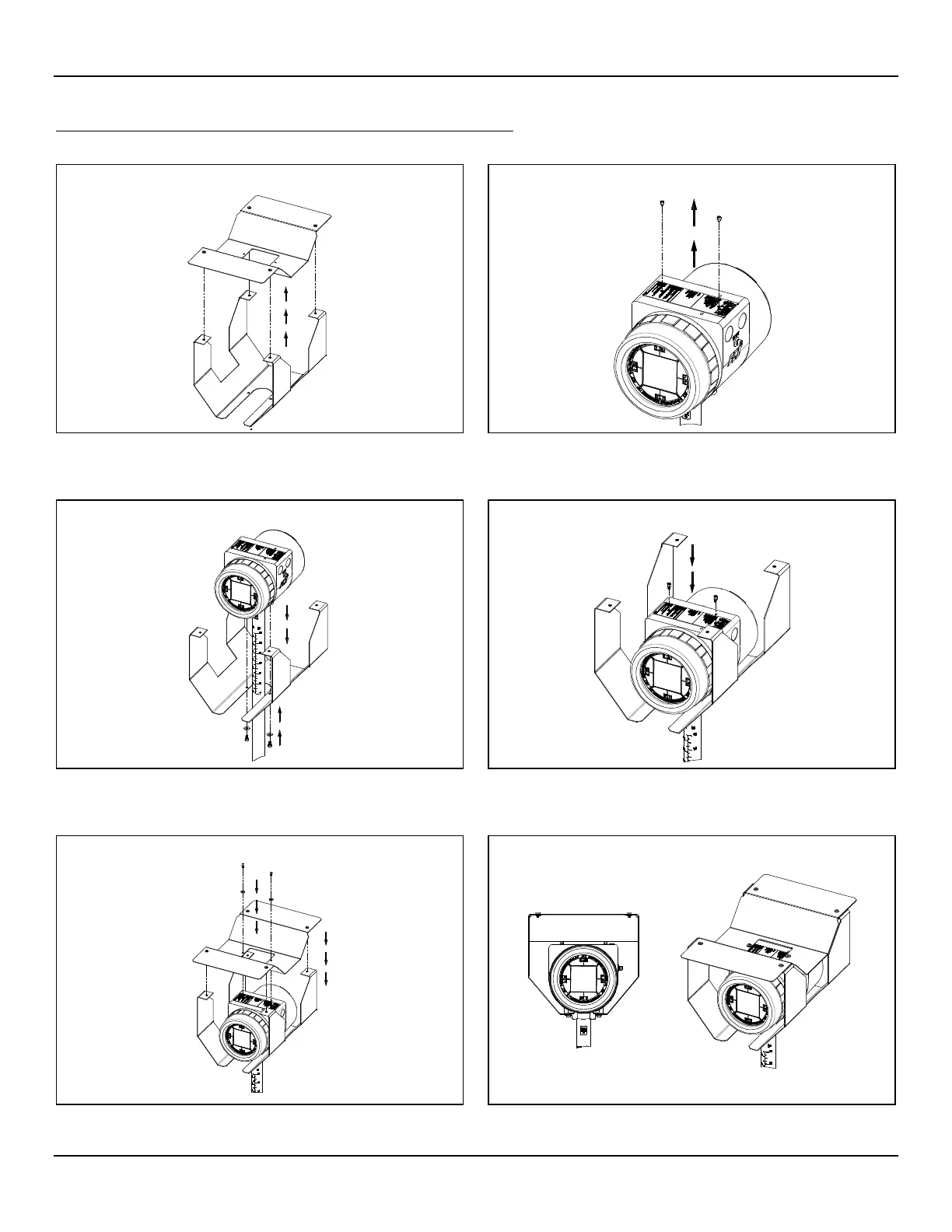

Instructions: Installing Sun Shield on ST80/ST80L Integral Enclosure

Remove top of sun shield assembly. Remove existing tag screws.

Secure tag using supplied hex standoffs.

Finished assembly – front and isometric views.Reinstall top portion of sun shield using supplied pan head screws and washers.

Attach enclosure to lower portion of sun shield using supplied screws & washers.

STEP 1 STEP 2

STEP 3 STEP 4

STEP 5 STEP 6

C01103-1-1

C01104-2-1

C01104-3-1

C01104-4-1

C01104-5-1

C01104-6-1
