OPERATION ST80/ST80L Flow Meter
32 Fluid Components International LLC

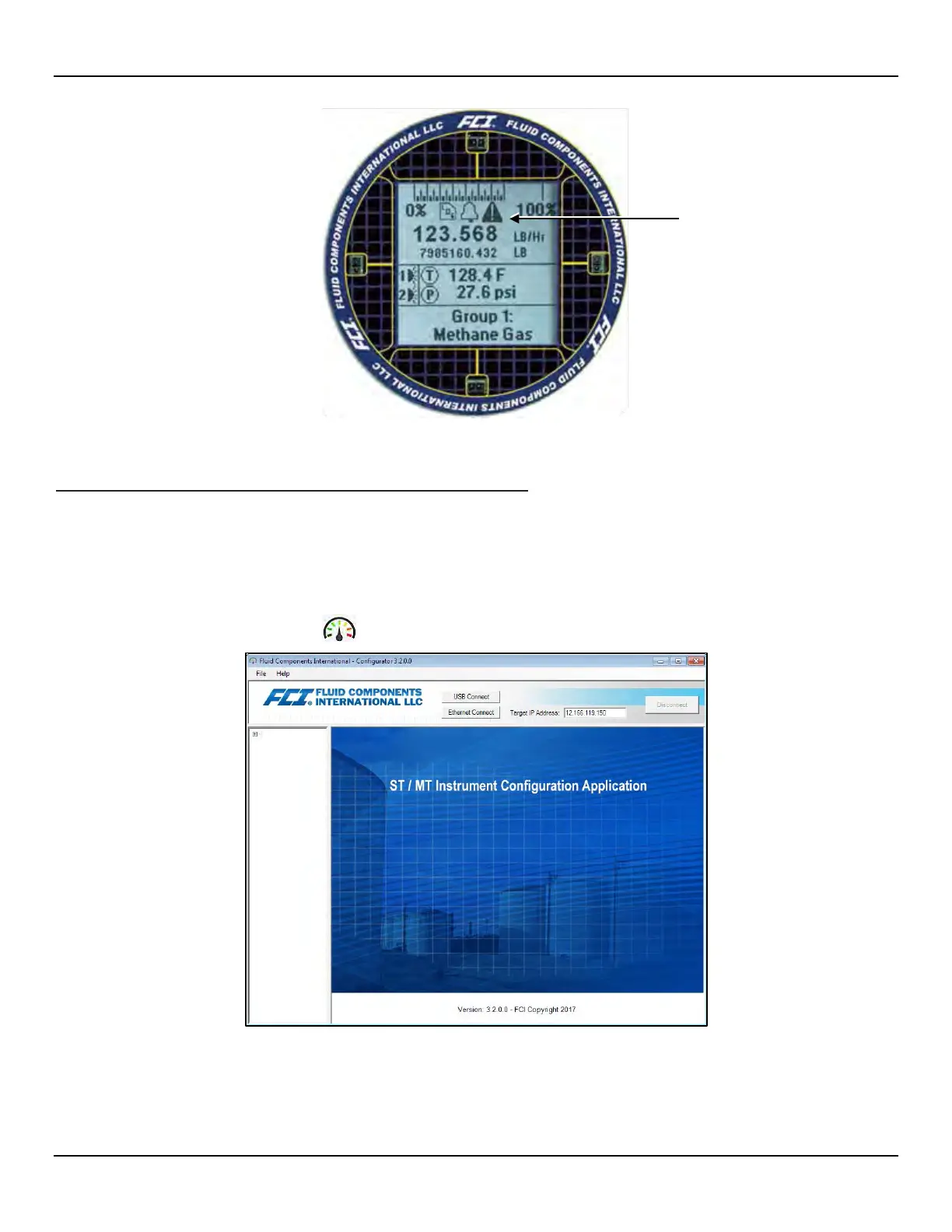

Figure 31 – Example Log, Alarm, and Logging Icons on the Optional Display
ST80/ST80L Configuration Software Application (User Password: 2772)
The ST80/ST80L configuration software application provides full access to instrument programming. However, this requires opening the electronics
enclosure and attaching a PC to the instrument’s USB service port. The ST80/ST80L configuration software application is intuitive, easy to use and
the preferred method for commissioning the instrument.
Use a passive, straight-through USB 2.0 cable with a type-A male connector on one end and a type-B square plug on the other end (as supplied with
the instrument). Connect the USB cable’s type-A connector to the computer’s USB port. Connect the other end of the cable to the instrument’s USB
receptacle (remove blind lid to access the USB service port). With instrument power ON, launch the application by double clicking the configuration
software’s icon on the PC's Windows desktop: An example of the configurator Welcome screen is shown below.
Figure 32 – The Configurator Welcome Screen
A local USB connection to the PC is the primary communication method—click USB Connect to activate this connection, which results in the display
of the Process Data screen as shown in the example in Figure 33 below.
Logging, Alarm, and Fault Icons
