ST80/ST80L Flow Meter INSTALLATION
Fluid Components International LLC 15
Remote Pipe Mounting
Refer to the figures below for remote transmitter pipe mounting details.

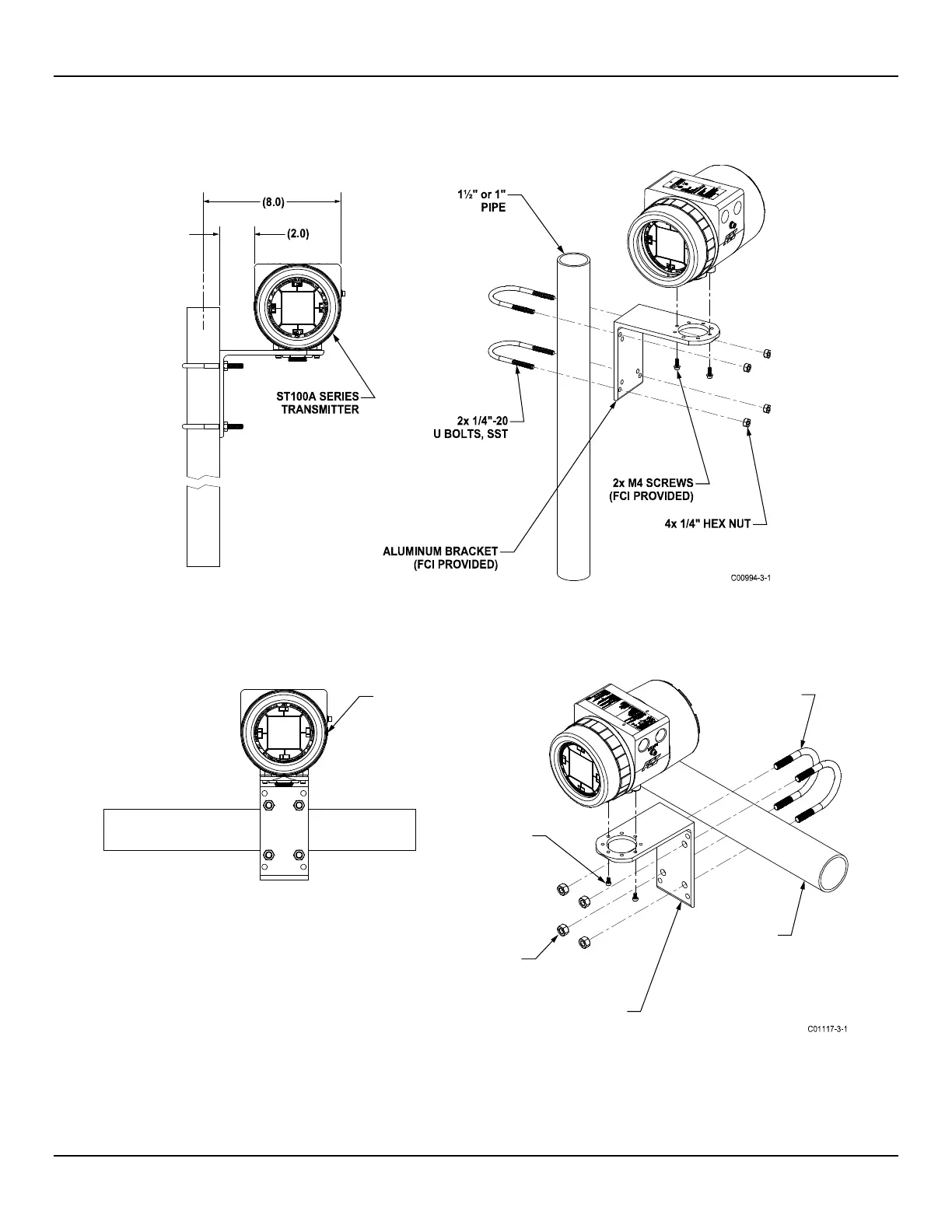

Figure 10 – Remote Installation, Mounting Bracket on 1" – 1½" Pipe
Figure 11 – Remote Installation, Mounting Bracket on 2" Pipe
2" Pipe
2x 3/16"-16
U BOLTS, SST
2x M4 SCREWS
(FCI PROVIDED)
ALUMINUM BRACKET
(FCI PROVIDED)
4x 3/16" HEX NUT
ST100A SERIES
TRANSMITTER
