FCI ST80 Series User Manual

OPERATION ST80/ST80L Flow Meter
34 Fluid Components International LLC
Click Get from Device. This displays the current date and the ST80/ST80L system time. If needed, set the correct date using the field's calendar
date picker and time using the field's spinner buttons. Click Send to Device to save the changes to the instrument.
Totalizer Setup
The flow totalizer function accumulates the instrument total flow, much like the odometer on an automobile. The engineering flow units must be set in
mass or volumetric units for the function to work. The totalized flow value is displayed directly below the indicated flow rate on the instrument display.
The totalizer is enabled and displayed by default. Use the ST80/ST80L configuration software to set up the totalizer (the totalizer cannot be
programmed via the HMI).

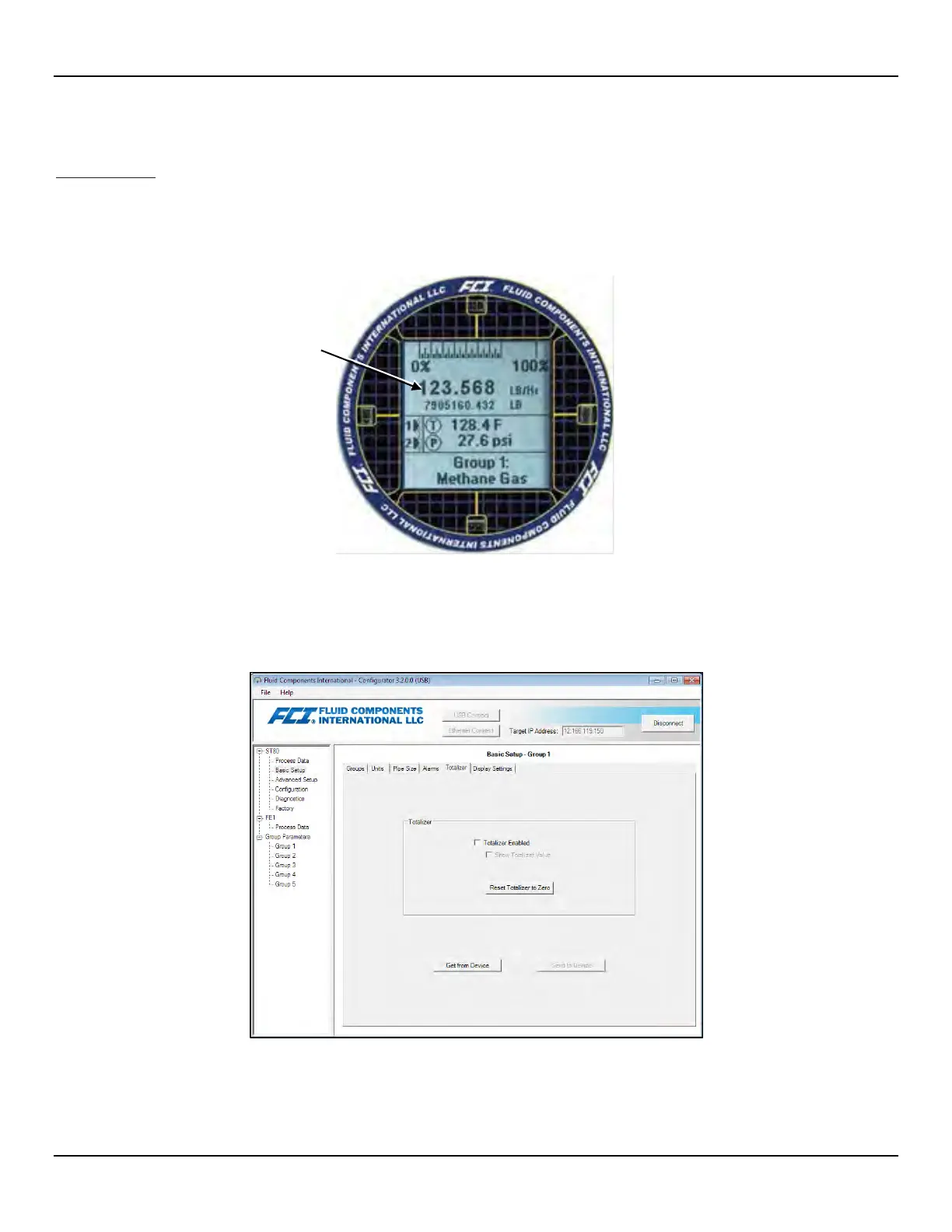

Figure 35 – Example Totalizer Display Showing Total Flow Value
Start the ST80/ST80L configuration software application. Click USB Connect on the home screen. Select the Basic Setup branch from the menu
tree on the window's left side. Select the Totalizer tab. Configure as desired (check/uncheck the check boxes). Click Send to Device to save the
changes to the instrument (enter the user level password 2772 when prompted). Click Get from Device to verify any changes.
Figure 36 – Totalizer Setup Screen
Total
Flow Value
