INSTALLATION ST80/ST80L Flow Meter
22 Fluid Components International LLC
HART Connections
Referencing Figure 14 connect the installation HART wiring to the J25 Phoenix connector. Similar to flow element connector TB1 the J25
connector is a detachable plug that plugs into the header socket on the board. Use the appropriate J25 connector terminals depending on
your application as shown in Figure 20 below. The connector plug accepts 28-16 AWG (0.14 mm
2
- 1.5 mm
2
) wire.

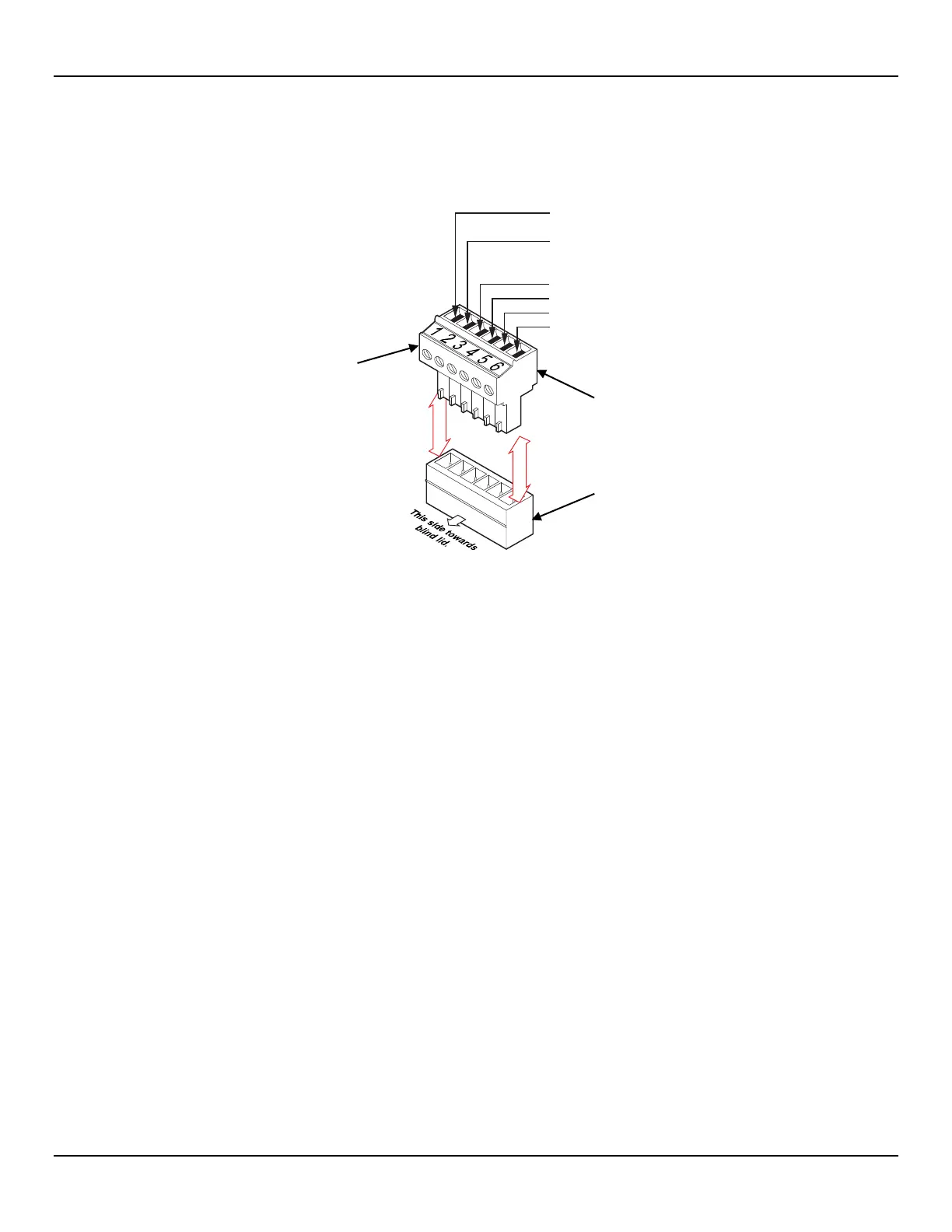

Figure 20HART and Ch. 1 & Ch. 2 4-20 mA Connections, J25
Single ConnectionThe instrument supplies power to the loop and controls the current as well. For this application connect HART+
to J25-1 (INT HART+) and HART- to J25-2 (CH1/INT HART RTN). This is the default 4-20 mA Ch. 1 output even if HART is not used.
Network (Multidrop) ConnectionThe instrument receives loop power from the network, and controls the current. For this
application connect external HART+ to J25-2 (EXT HART+) and external HART- to J25-4 (EXT HART RTN).
The block diagram in Figure 21 below shows the single connection and multidrop HART setups. Use a 250 1%, 0.3 W resistor as shown in the
diagram below only if the external HART interface/wiring does not have this resistance built-in (HART requires a minimum loop resistance of 230 Ω).
C
ABLING RECOMMENDATION
Use a shielded, twisted-pair instrument grade wire (min. 24 AWG for runs less than 5000 ft/1500 m; min. 20 AWG for longer distances). The RC
value of the wire (Total Resistance x Total Capacitance) must be less than 65 µs (not a concern for point-to-point topology with a run less than
328 ft/100 m). A cable designed for HART/RS-485 such as Belden 3105A is recommended for complex setups or particularly long runs or both.
Note:
The HART communications digital signals are superimposed on top of the channel #1 current loop (4-20 mA) output.
When HART communications is in use, the HART current loop channel #1 MUST be configured as FLOW to comply
with the HART protocol. The channel #1 current loop output is configured as FLOW by default at the factory.
C01459-1-1
6.
5.
4.
3.
2.
1.
Return (RTN)
Ext HART– (RTN)
Ch. 2 4-20 mA Return
Ch. 2 4-20 mA
Ch. 1 4-20 mA Return,
Int HART (RTN),
Ext HART+
Ch. 1 4-20 mA,
Int HART+
J25, MAIN BOARD
DETACHABLE
PLUG
HEADER
SOCKET
