FCI ST80 Series User Manual

APPENDIX B – ADDITIONAL INFORMATION ST80/ST80L Flow Meter
132 Fluid Components International LLC

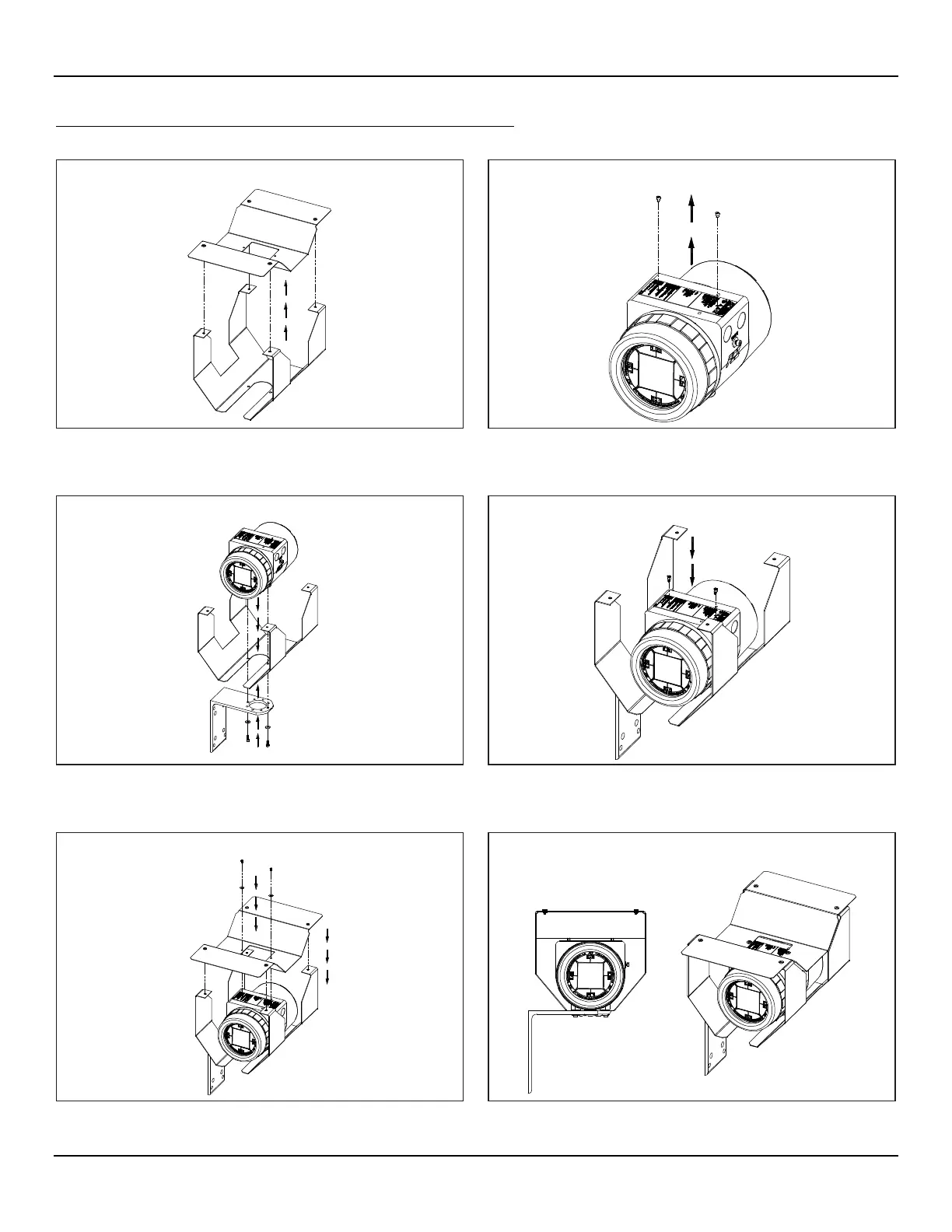

Instructions: Installing Sun Shield on ST80/ST80L Remote Enclosure
STEP 1
STEP 3
STEP 5
STEP 2
STEP 4
STEP 6
Remove existing tag screws.
Secure tag using supplied hex standoffs.
Finished assembly – front and isometric views.Reinstall top portion of sun shield using supplied pan head screws and washers.
Attach enclosure and lower portion of sun shield to remote bracket using
supplied screws & washers. (Choose bracket hole pair that provides best
instrument viewing angle in installed location.)
C01103-2-1
C01103-1-1
C01103-3-1
C01103-4-1
C01103-5-1
C01103-6-1
Remove top of sun shield assembl y.
