ST80/ST80L Flow Meter OPERATION
Fluid Components International LLC 29
Basic Setup Options, HMI
Figure 27 below summarizes the basic setup options using the optional HMI. Enter the HMI user password as required when changing a
setup parameter.
The setup options described in this section (except Language) can also be changed via the configuration software.
Refer to Basic Setup Options, Configuration Software on page 31.

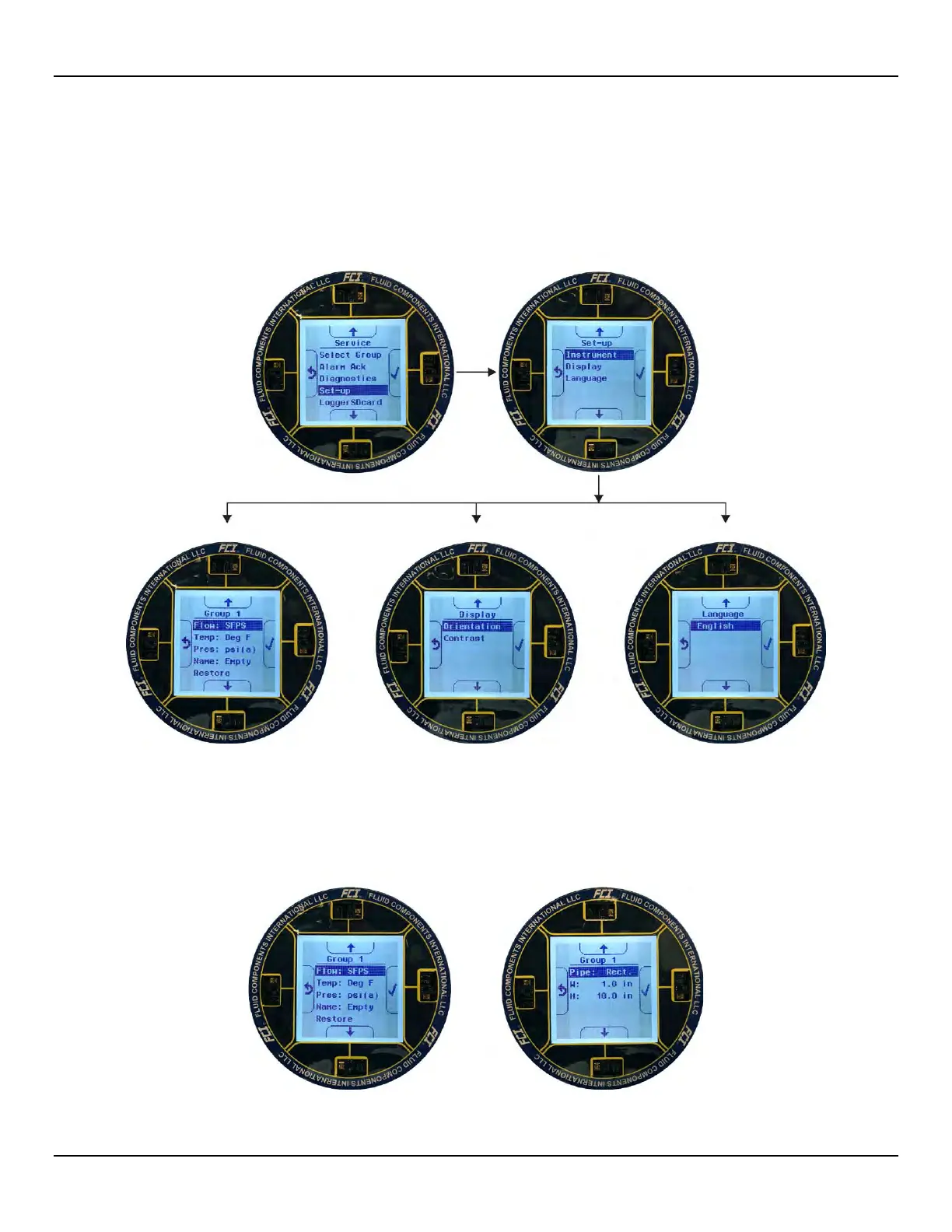

Figure 27 – Basic Setup Options, HMI
INSTRUMENT OPTIONS
Figure 28 below summarizes the Instrument options pertaining to the currently selected group (of which there are five). Enter the HMI user
password E#C as required when changing a setup parameter.
Figure 28 – Instrument Setup Options
Instrument Options (Top Scroll)
Instrument Options (Bottom Scroll)
To Next Page
