INSTALLATION ST80/ST80L Flow Meter
14 Fluid Components International LLC
Remote Electronics
A mounting bracket is supplied when the transmitter is ordered for remote mounting. The bracket mounting details are shown in Figure 9
below. Refer to the outline installation drawings in Appendix A for additional mounting details. The electronics can be easily mounted on a
wall or pipe. The mount bracket is designed for .25 inch or M6 mounting hardware. Securely mount the electronics to cement or structural
support columns or beams. Mounting to plaster is not recommended and does not meet system approval requirements.

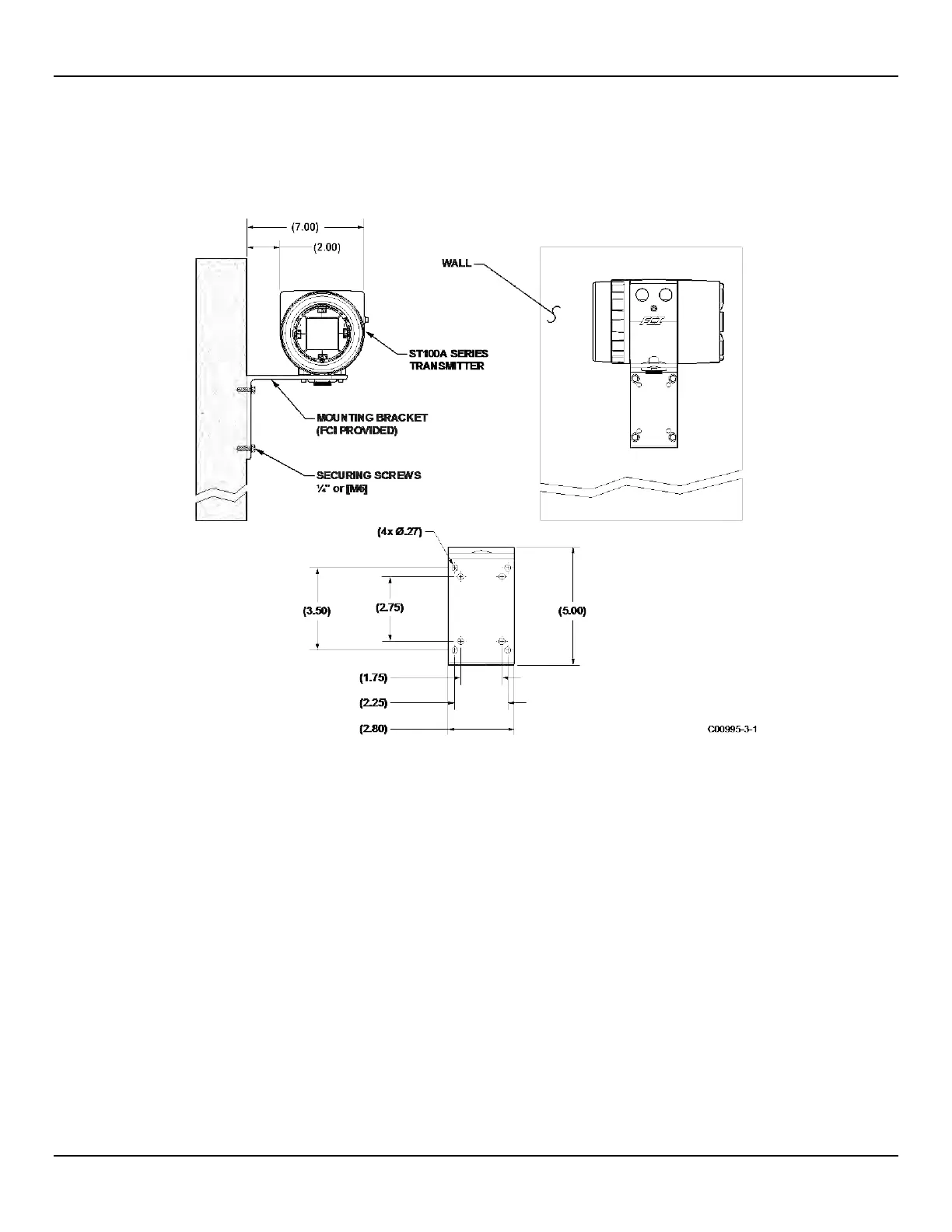

Figure 9 – Remote Installation, Mounting Bracket on Wall
