FIK-NIC Wiring Options Networking
FCP-300/FCP-300ECS Manual — P/N LS10145-002FK-E:A 3/12/2021 59
Fiber-Optic Multi-Mode Wiring between the Multiple Panels
The Fiber-optic cable between multiple panels is shown in Figure 5.8. Class A is shown with a dotted line.

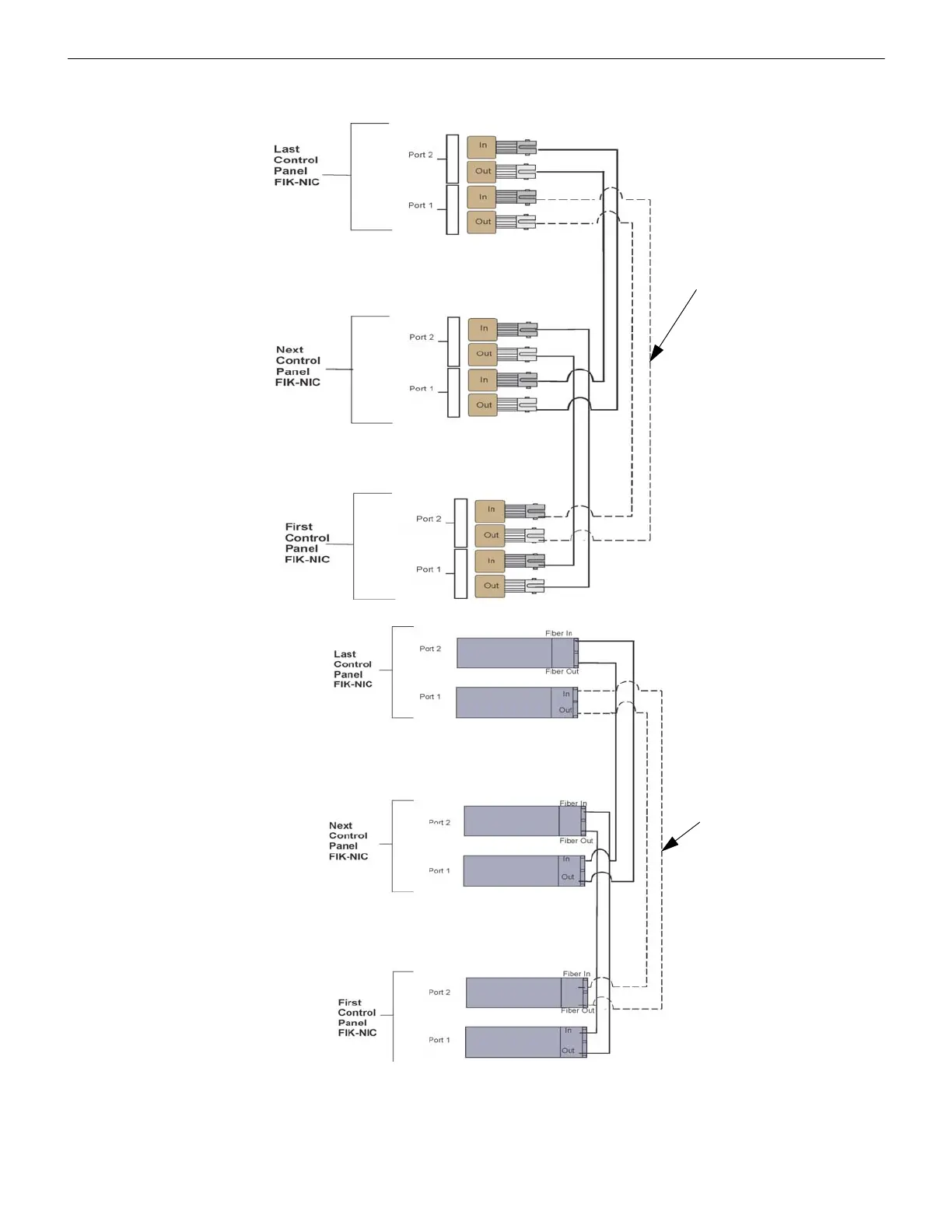

Figure 5.8 Fiber-Optic Wiring Multi-Mode Example
Figure 5.9 Fiber-Optic Wiring Single-Mode Example
Class A wiring
Class A wiring
