Multifunction Relay connection (ALARM and AUX)

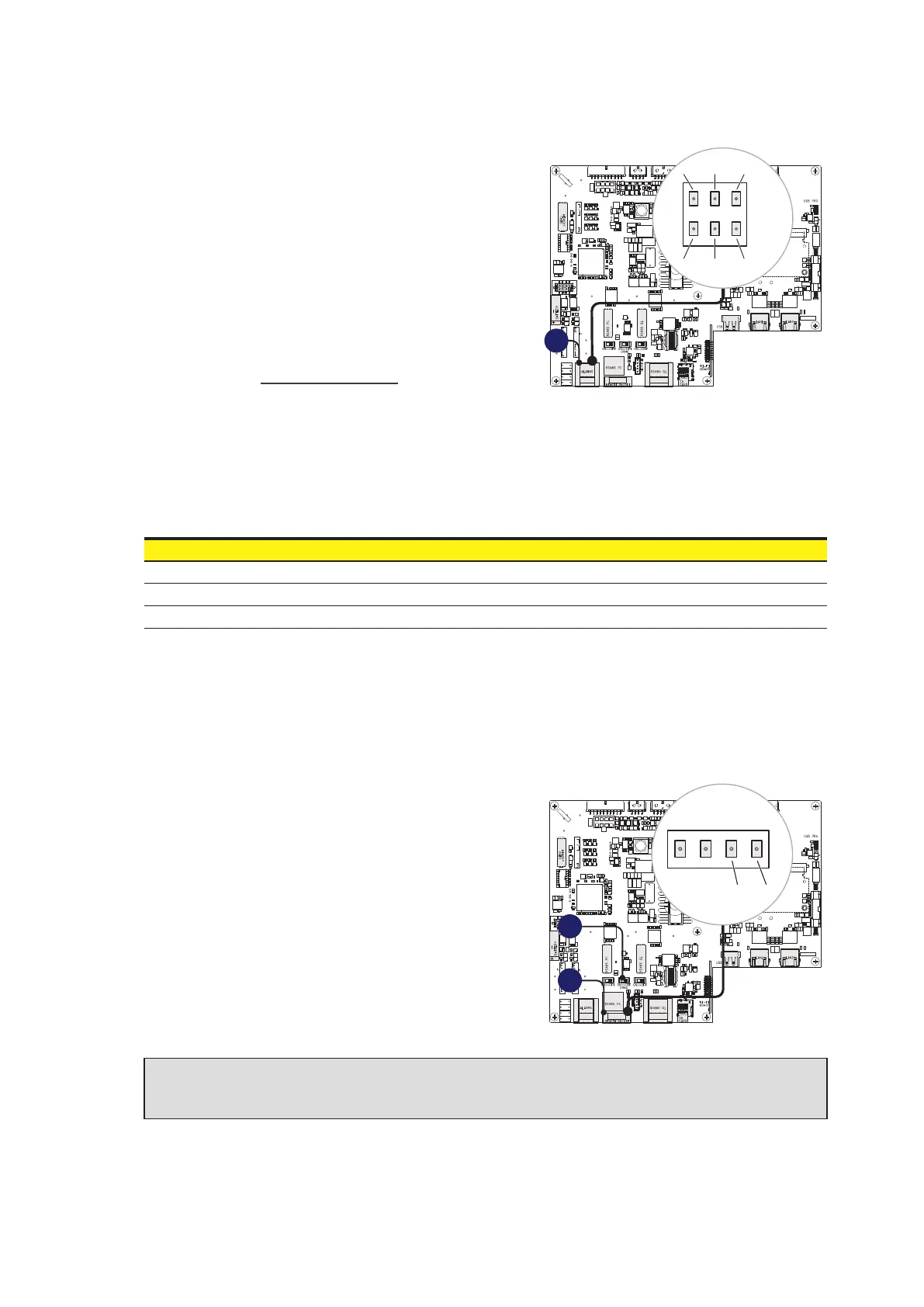

The inverter is equipped with 2 multifunction relays
terminal blocks (41) with configurable activation. It can be
connected with normally open contact (being connected
between the NO terminal and the common contact C) and
with normally closed contact (being connected between
the NC terminal and the common contact C).
This contact can be used in different operating
configurations that can be selected by accessing the
relevant section in the web user Interface “SETTINGS >
Digital Outputs” (“SETTINGS menu”).
Different types of devices (light, sound, etc.) can be connected to the relay, and they need to comply
with the following requirements:
Alarm terminal block requirements
Alternating current Maximum Voltage: 160 Vac / Maximum Current: 6 A
Direct current Maximum Voltage: 30 Vdc / Maximum Current: 3 A
Cable requirements Conductor cross-section: from 28 to 16 AWG
Demand Response Mode 0 (AS/NZS 4777.2)
Where requested by the AS/NZS 4777.2 standard, it’s
possible to use the Remote terminal block (42) for the
Demand Response Mode 0 (DRM0) functionality.
The function could be activated by setting the DRM0
activation switch (39) to “ON” position.
The terminals to be used to connect the inverter to the
distribution grid are R2 and RTN.
NOTE – D In case of the DRM0 function is activated without the proper wiring of the Remote
terminal block (42), the inverter will no longer be able to connect to the grid. For further
information regarding the DRM0 function refer to the AS/NZS 4777 standard.
