Lifting and transport
Transport and handling
Transport of the equipment, especially by road, must be carried out with means for protecting the
components (in particular, the electronic components) from violent shocks, humidity, vibration, etc.
LIFTING – U During handling, do not make any sudden or fast movements that could
create dangerous swinging.
Equipment weight
Device
Weight
(kg/lb)
Lifting
points
Holes for handles (optional) or
Eyebolts UNI2947 (not supplied)
Power module (01)
76.5 kg / 168 lbs 4 M8. Kit of handles (04) (to be ordered)
Wiring box (02)
76.8 kg / 169 lbs 4 M8. Kit of handles (04) (to be ordered)
Storage
ATTENTION – A DO NOT store the equipment (also valid for spare parts units) in a location
exposed to severe weather conditions (e.g. rain, snow or a high level of humidity). Always
comply with storage temperature indicated in “Characteristics and technical data”
paragraph in this manual.

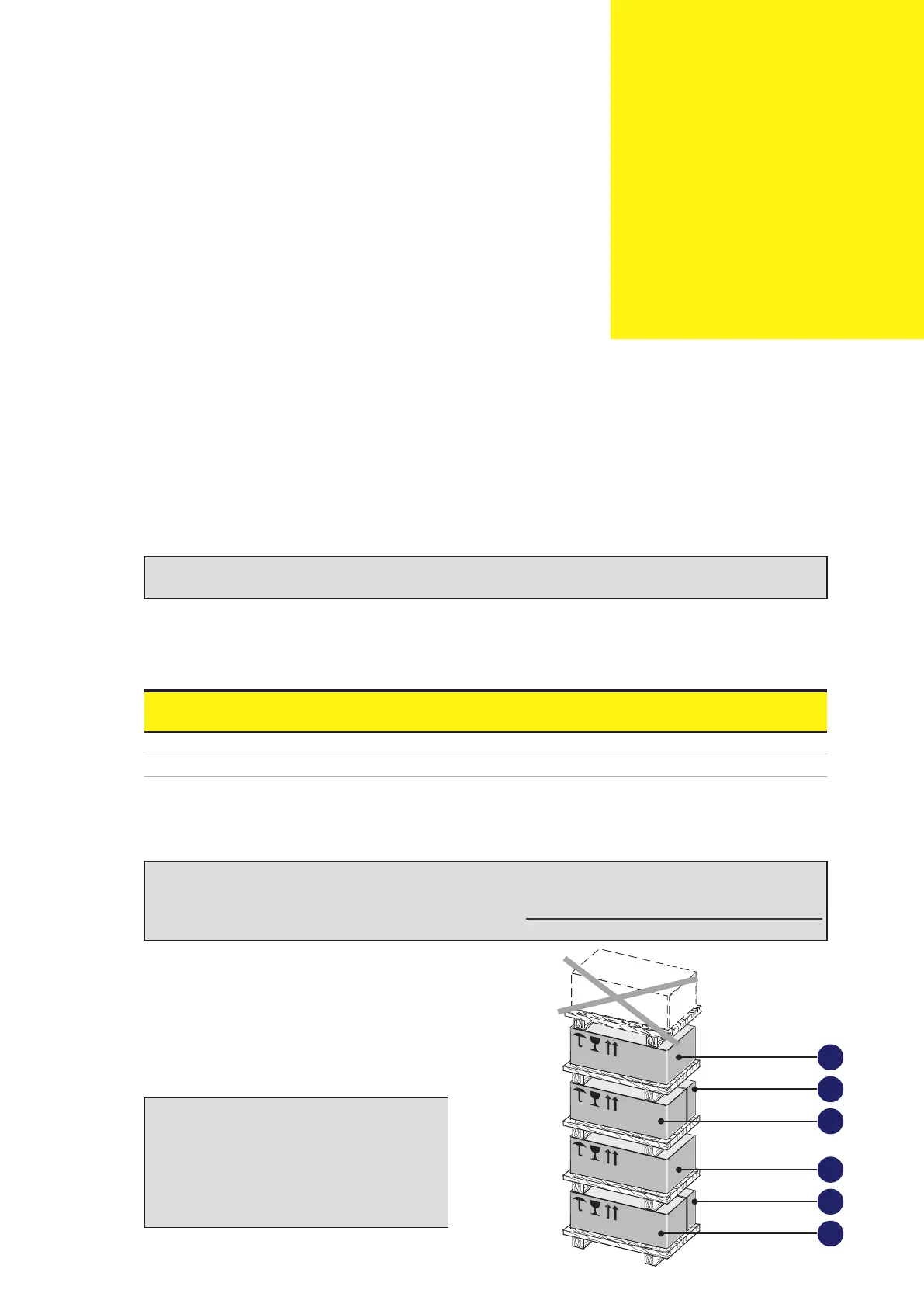

If the package with the power module part
is stored correctly, it can withstand a
maximum load of 2 stacked units (power
module+wiring box+bracket).
ATTENTION – A DO NOT stack the
package with equipment or products
other than those indicated.
ATTENTION – A Accessory
components that are in separate
packages can be piled separately.
02
02
03
03
01
01
