FIMER_PVS-175-TL A.1 Version_Product manual_EN_RevC-
F
87

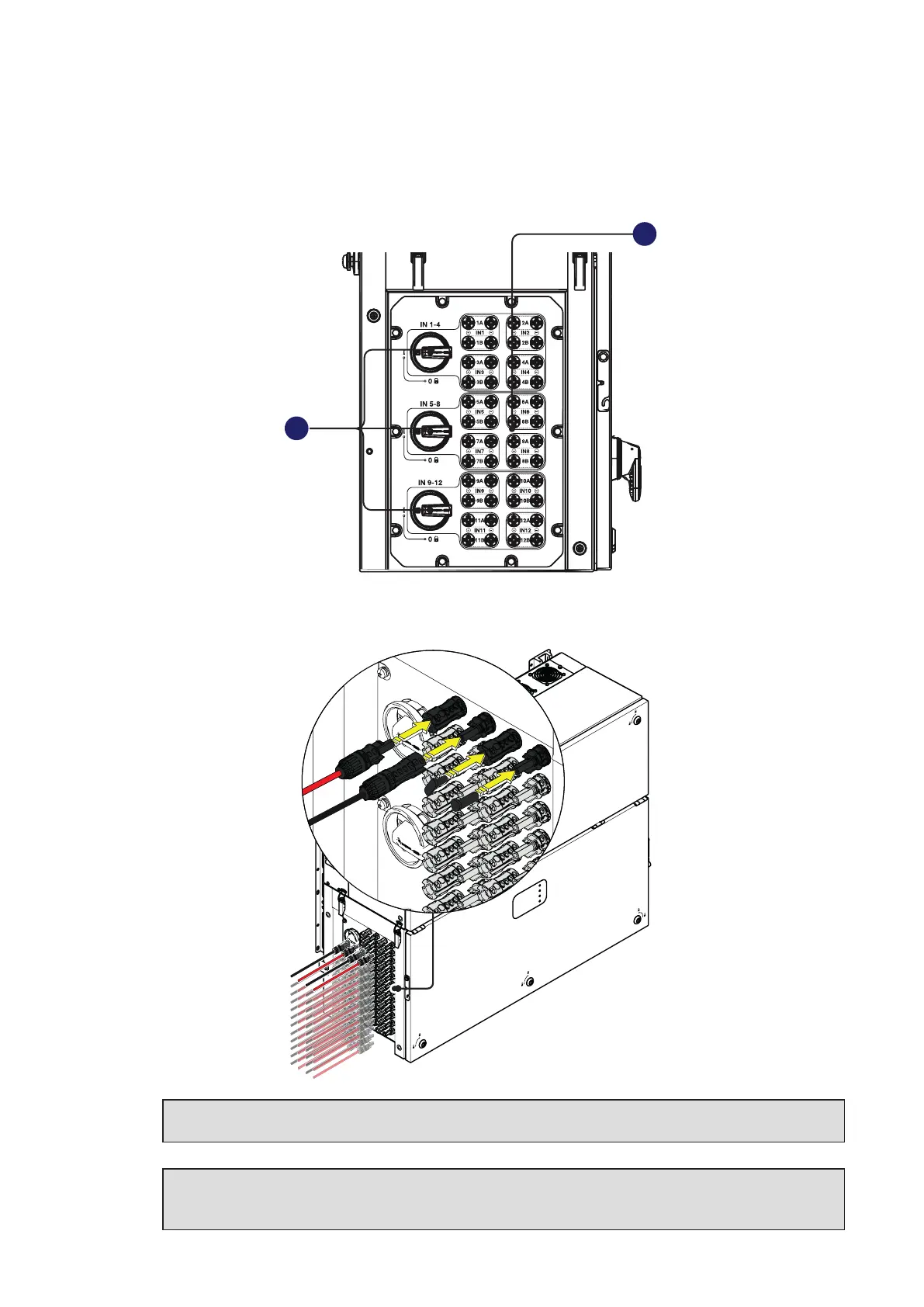

String connection
The input connectors are divided into 12 MPPTs (one MPPTs for each input channel) consisting of 2
pairs of quick fit connectors.
Each DC disconnect switches (19) are related to a group of four MPPTs.
18
19
• Connect all the strings required by the system, always checking the seal of the connectors.
PVS
ATTENTION – A the MC4 input quick fit connectors must be properly installed. After the
installation make sure the connectors are correctly locked through the clips.
ATTENTION – A If any string inputs is not required check that protective caps are installed
to the relative unused connectors. This is necessary for the inverter seal and to avoid any
damage to the unused connectors which may be used at a later time.
