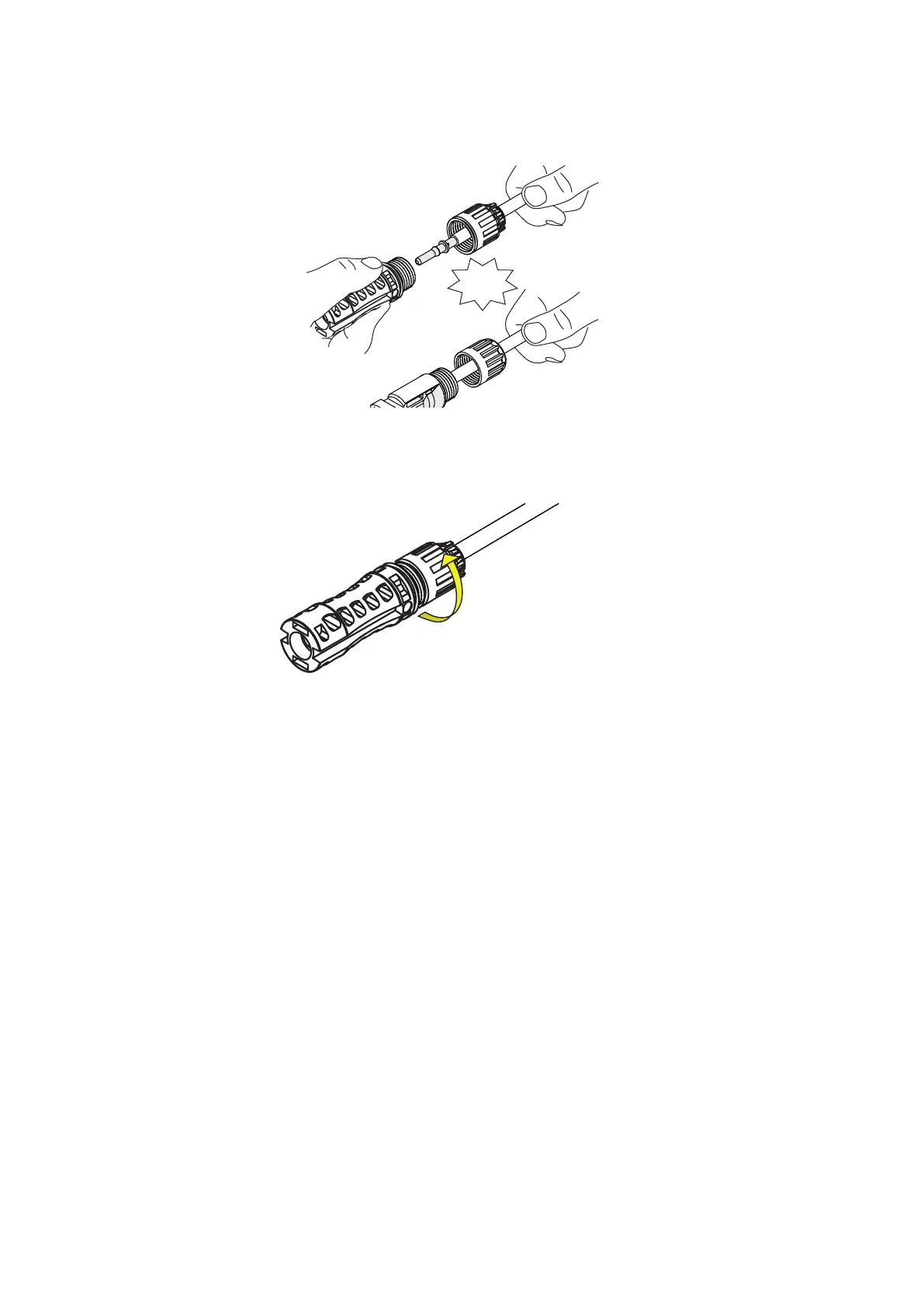

• Insert the crimped terminal contact into the insulator body of the connector, until you hear the click
indicating that the terminal is engaged inside the connector.
• Firmly tighten the cable gland using the relevant tool to finish the operation.
4.0 Nm for 4mm² cable section
3.5 Nm for 6mm² cable section
3.5 Nm for 10mm² cable section
