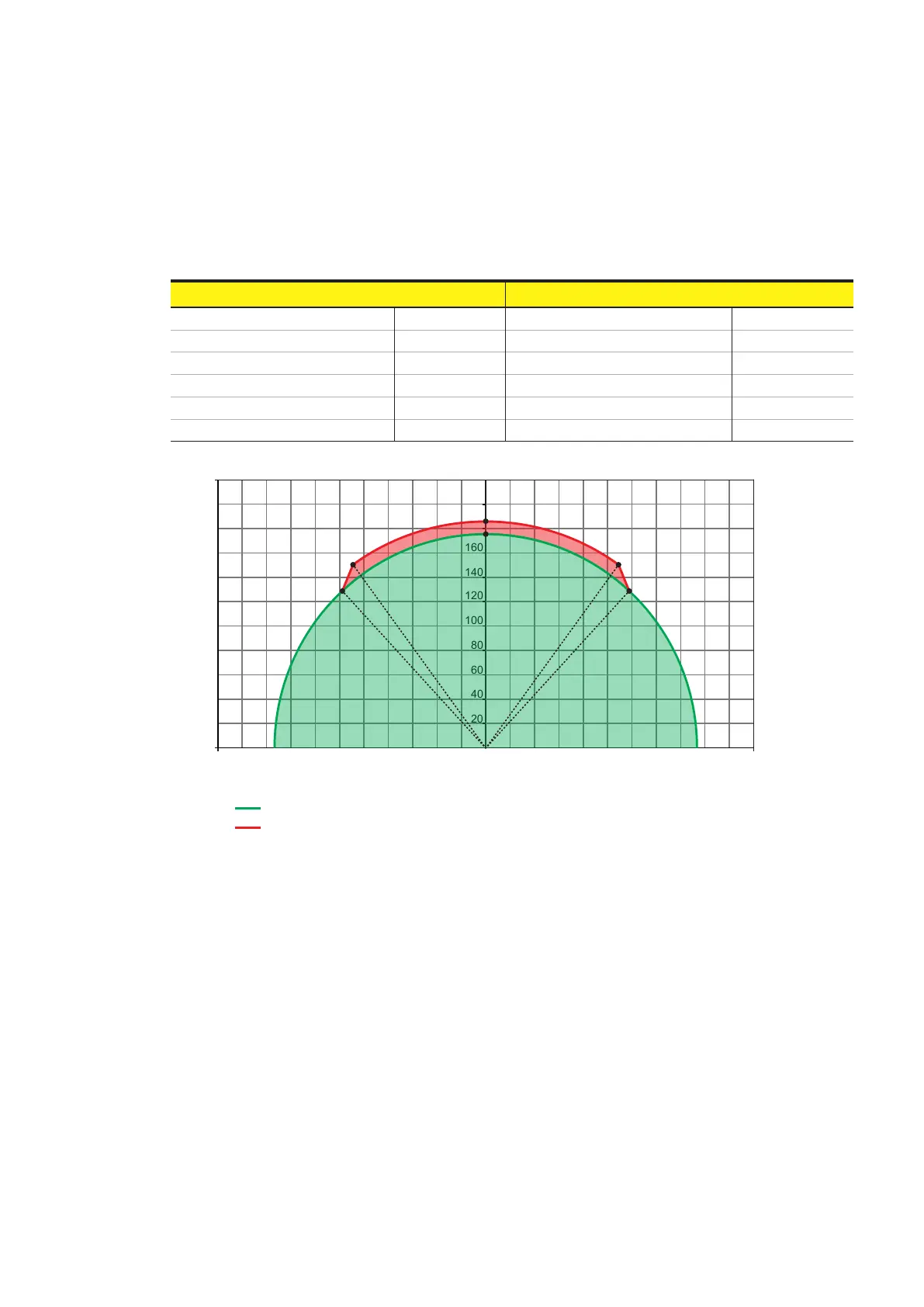

P-Q Capability
P-Q capability may be reduced to match the specific grid code requirements applicable in your country.
The following represents the maximum P-Q capability of the unit under the specified operating
conditions.
Ambient temperature up to 30 °C Ambient temperature up to 40 °C
Rated output voltage
(Un)
800 Vac Rated output voltage
(Un)
800 Vac
Nominal Active Power
(Pn)
185 kW Nominal Active Power
(Pn)
175 kW
Nominal Apparent Power
(Sn)
175 kVA Nominal Apparent Power
(Sn)
175 kVA
Nominal Reactive Power
(Qn)
175 kVAR Nominal Reactive Power
(Qn)
175 kVAR
Cosphi @ Smax -0 ... 1 ... 0+ Cosphi @ Smax -0 ... 1 ... 0+
Capability with grid voltage 1.0 x Un Capability with grid voltage 1.0 x Un
Q (%)
P (%)
PVS-175-TL (up to 40°C)
PVS-175-TL (up to 30°C)
-200 -180 -160 -140 -120 -100 -80 -60 -40 -20 0 +20 +40 +60 +80 +100 +120 +140 +160 +180 +200
20
40
60
80
100
120
140
180
200
160
cosphi = 0.8
cosphi = 0.715
