Quick fit connector disconnection procedure
WARNING – B Risk of electric shock! Do not disconnect PV connectors while under load!
Refer to “Inverter total de-energization and safe access” paragraph on this manual to
know all the necessary steps to safely disconnect the connectors!

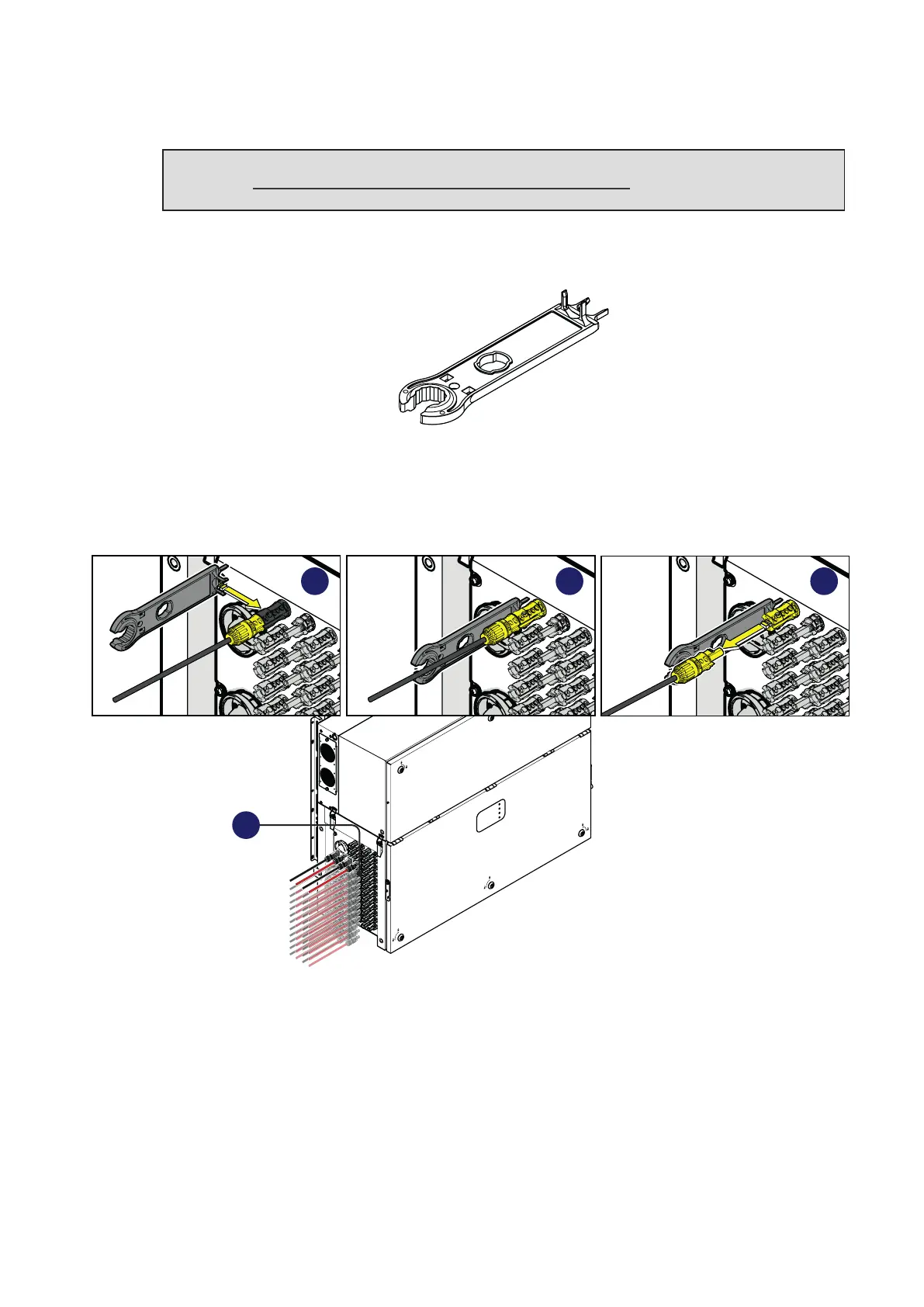

In order to disconnect the PV connectors (18) it is necessary to use the disconnection tool provided
with the “PVS-175 Installation Kit”.
• Insert the pins of disconnection tool in the coupled PV connectors as shown in the pictures (A) (B).
• Separate the two parts of PV connectors (C).
PVS
18
A B C
