Fimer PVS-175-TL - Overall Dimensions of the Inverter

FIMER_PVS-175-TL A.1 Version_Product manual_EN_RevC-
F
29
Tightening torques
AC interface connection point bolt (34) (MID-BULK) 3 Nm
Interface protective earth point nut (36) 3 Nm
Communication connector counterparts (41) (42) (43) 0.25 Nm
Cable gland clamping range
Single core AC cable gland (11) M40 22...32mm
PE cable gland (12) M32 18...25mm
Multi core AC cable gland (11) M63
37...53mm
Signal cable gland (13) PG16 10...14mm
Signal cable gland (13) PG21 13...18mm

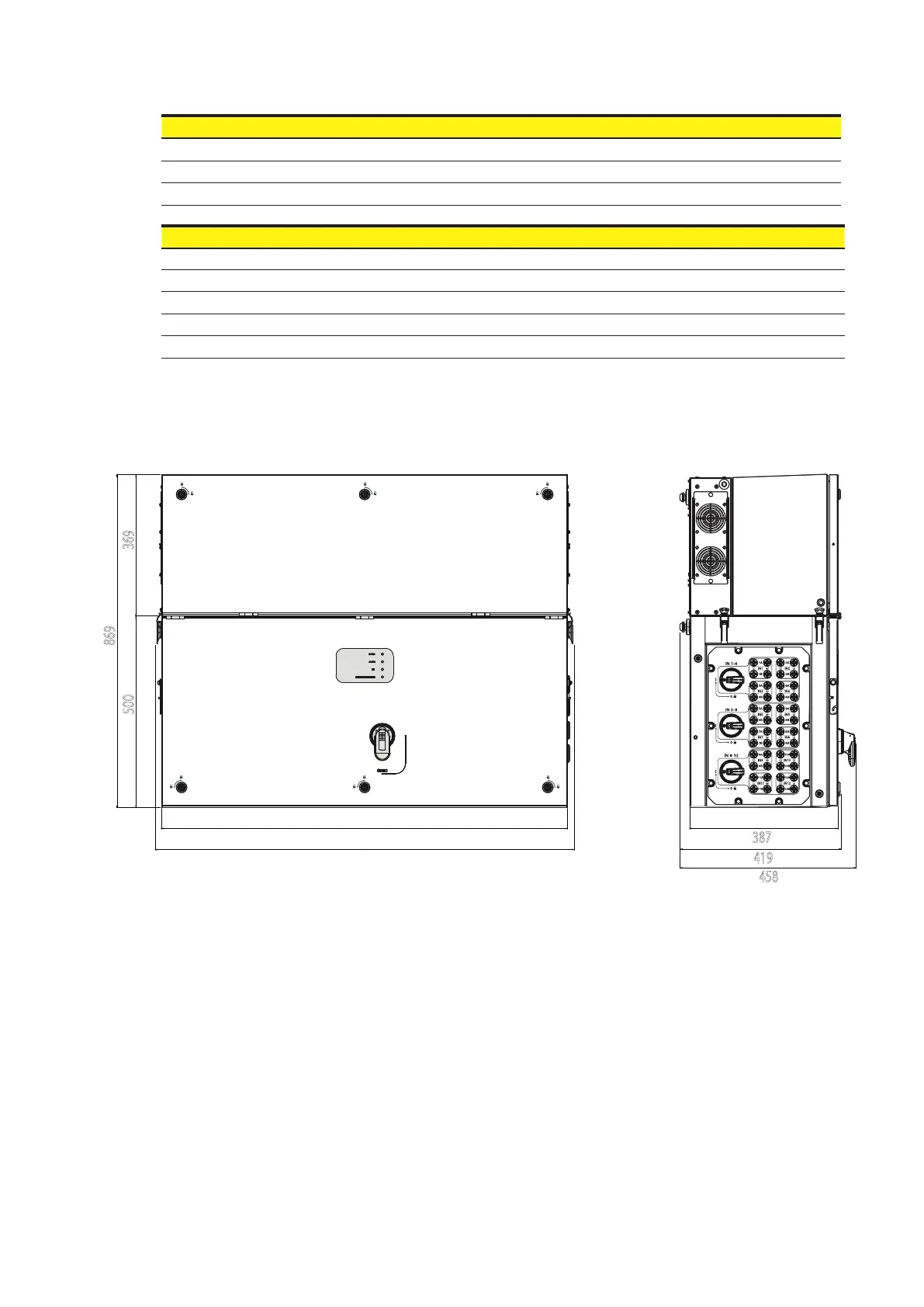

Overall dimensions of the inverter
The overall dimensions, not including the mounting bracket (03), are expressed in millimeters.
369
500
1060
1086
869
387
458
419
PVS-175
