Unpacking and checking
ATTENTION – A Packaging elements (cardboard, cellophane, staples, adhesive tape, straps,
etc.) may cause cuts and/or injuries if not handled with care. They should be removed with
the proper equipment.
NOTE – D The components of the packaging must be disposed on in accordance with the
regulations in force in the country of installation.
When you open an equipment package, check that the equipment is undamaged and make sure all
the components are present.
NOTE – D If any defects or damage are found, stop unpacking and consult the carrier, and
also promptly inform FIMER customer support.
Lifting
LIFTING – U Risk of injury due to the heavy weight of the equipment!
FIMER usually stores and protects individual components by suitable means to make their transport
and subsequent handling easier. Nonetheless, as a rule, it is necessary to turn to the experience of
specialised staff to take charge of loading and unloading components.
The power module (01) and the wiring box (02) must be lifted using the 4 handles (04) (to be ordered
separately) or alternatively using suitable lifting equipment.
ATTENTION – A The ropes and equipment used for lifting must be suitable for bearing the
weight of the equipment.
ATTENTION – A In case of manual lifting the number of required operators necessary to lift
the equipment must be in accordance to local regulations relating lifting limits per operator.
ATTENTION – A Do not lift several units or parts of the equipment at the same time, unless
otherwise indicated.
The handles (04) have to be mounted into the designated M8 threaded holes located on the enclosures.
If lifting with ropes, M8 eyebolts can be mounted in the same holes.
ATTENTION – A Handling and installation operations shall be performed only by using
the special tools and accessories provided with “PVS-175 Installation Kit” that have to be
ordered separately. The use of these equipment are mandatory to safely install the inverter.
Refer to “Kit of recommended spare parts” paragraph for further information.

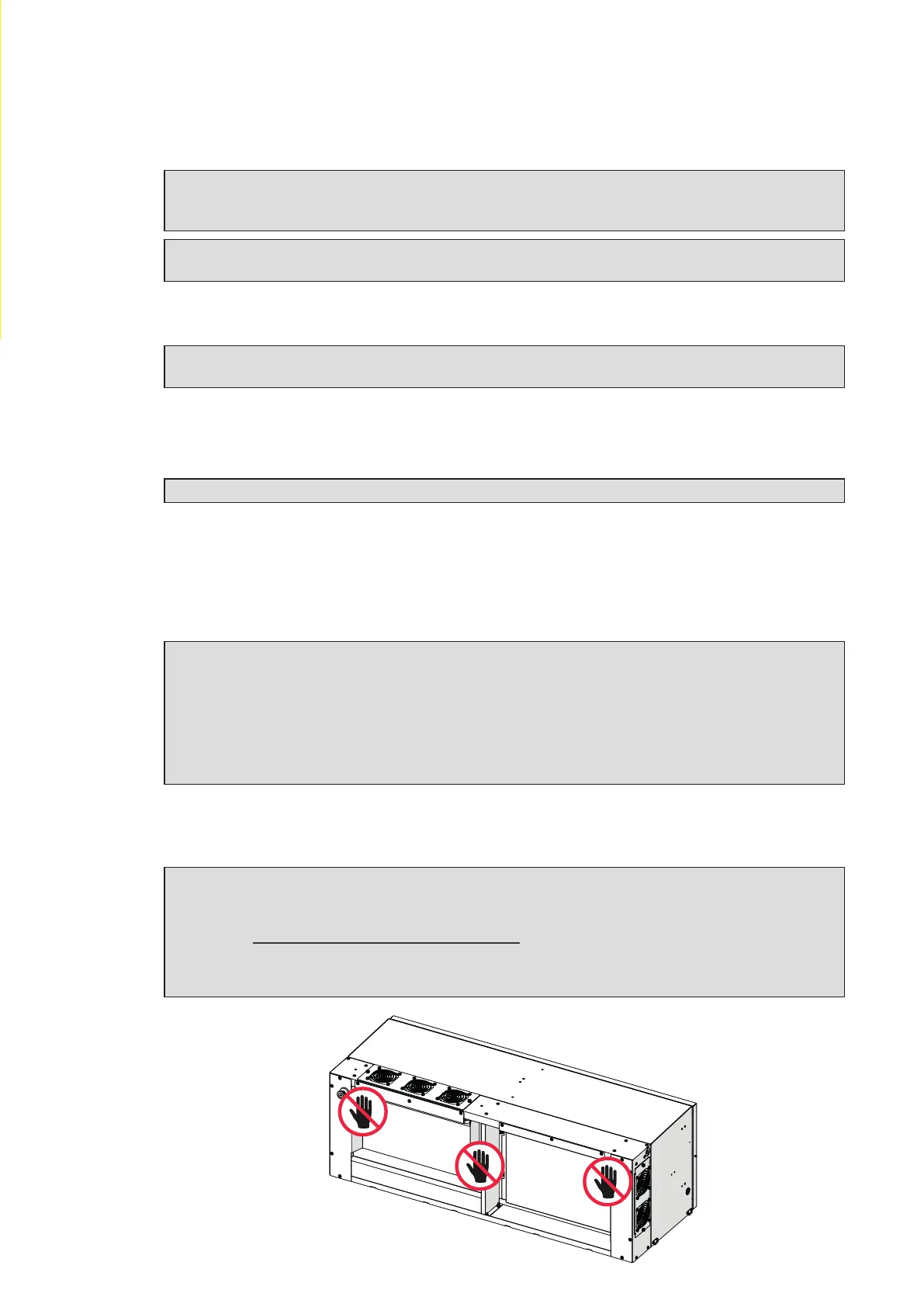

ATTENTION – A DO NOT grab the equipment from the rear flange! Risk of injury due to
cutting surfaces and risk of equipment damage. Always use proper lifting equipment!
