14.2.4.1 Measuring point specific profile correction
In special cases a measuring point specific profile correction can be used.
• Select the program branch Options.
• Press ENTER.
• Select a channel for which the profile correction is to be set.
• Select the menu item Special settings.
• Press ENTER until the menu item Profile correction is displayed.
•Select Off to deactivate the profile correction for the channel.
•Select Default to use the global setting from the program branch Special functions for the profile correction.
•Select Customized to use a measuring point specific profile correction.
• Press ENTER.
In case the list item Customized has been selected, the parameters of the measuring point specific profile correction will
now be displayed. The parameters of the profile correction are preferably transmitted to the transmitter via the service
interface but can also be entered here.
14.2.5 Advanced diagnosis
There are further diagnostic values available for the calculation channels. These can either be transmitted via the outputs
of the transmitter or defined as source of the event trigger.
14.3 SuperUser mode and SuperUser ext. mode
Some menu items that are not visible in the StandardUser or ExpertUser mode are now displayed.
In the SuperUser ext. mode it is not possible to carry out any plausibility test of the entered parameters.

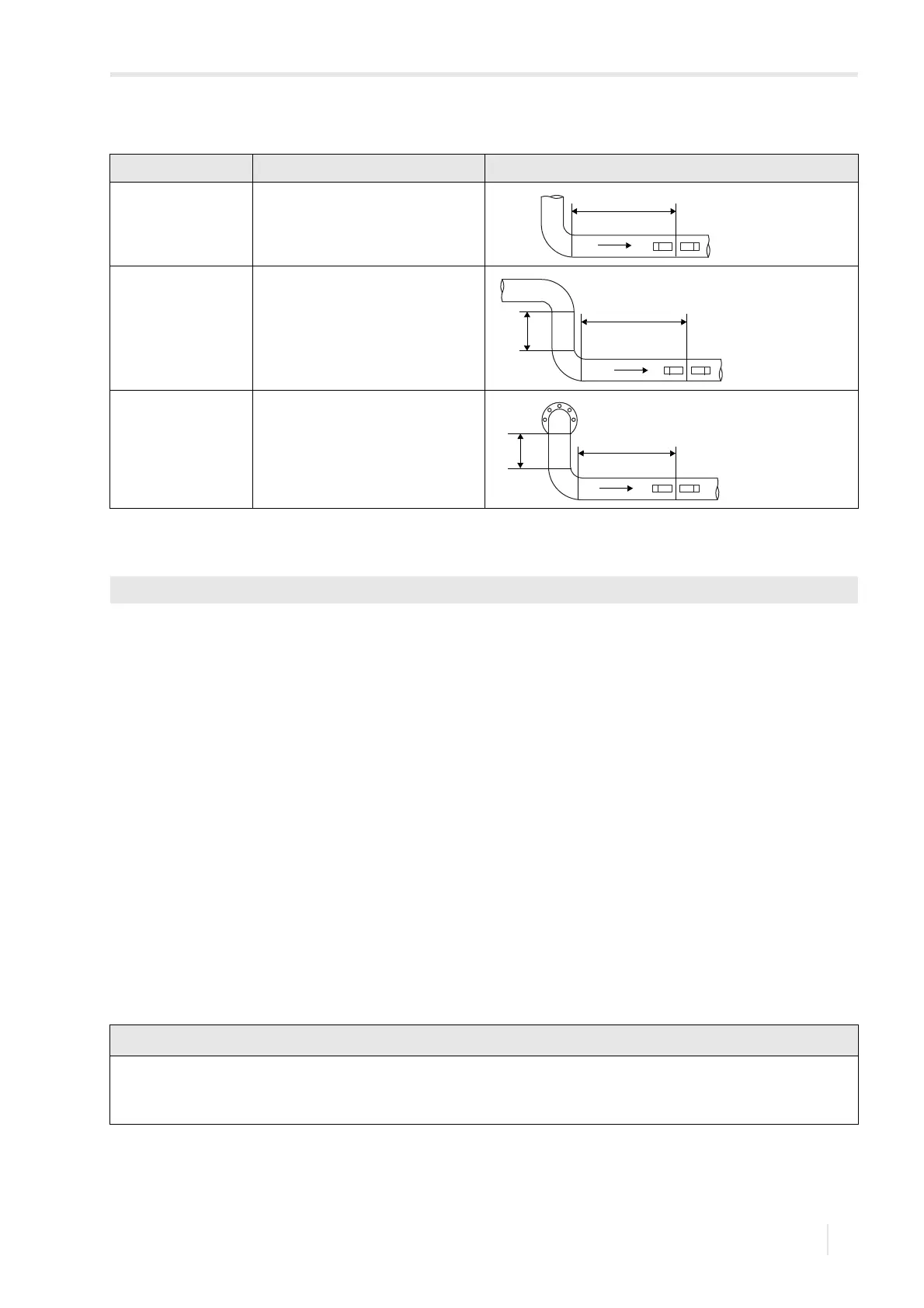

Tab. 14.2: Disturbance parameters
disturbance type further inputs description
90° elbow Disturbance distance (l)
Double elbow Disturbance distance (l
1
)
Dist. between elbows (l
2
)
Double elb. out
of plane
Disturbance distance (l
1
)
Dist. between elbows (l
2
)
Options\Special settings\Profile correction
Notice!
The SuperUser and SuperUser ext. mode is intended for experienced users with advanced application knowledge.
Changed parameters can affect the StandardUser mode and lead to wrong measured values or to a failure of the
measurement when setting up a new measuring point.
l
l
1
l
2
l
1
l
2
