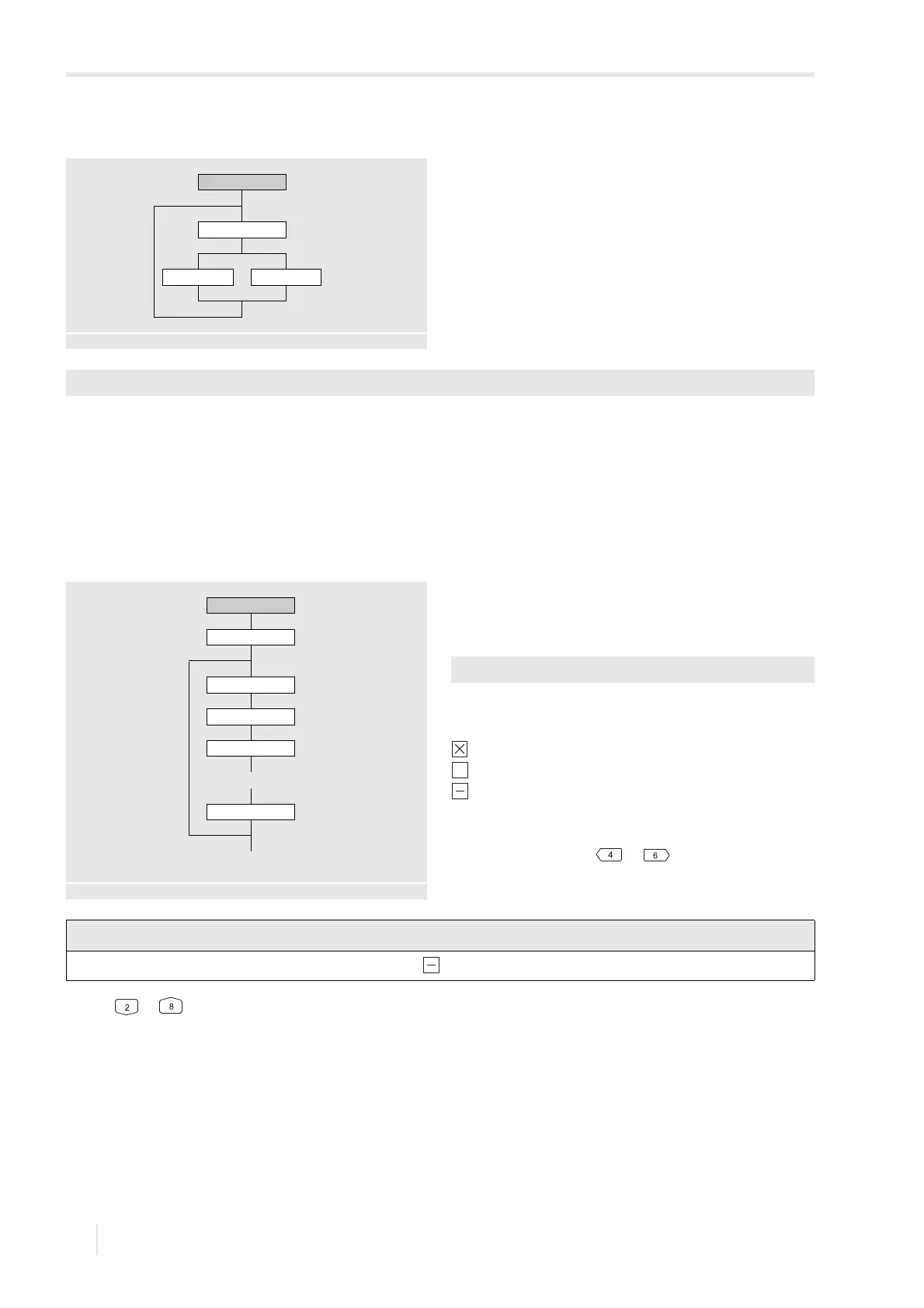

10 Measurement
10.4 Start of the measurement PIOX S72*
2022-05-15, UMPIOX_S72xV1-9EN
116
10.3.6.3 Switchable current outputs
If the transmitter has switchable current outputs, it has to
be defined how to switch them.
Select the menu item Current output in the program
branch Special functions.
Press ENTER.
•Select Active if the current outputs are to be switched to active.
Press ENTER.
All switchable current outputs are switched to active.
•Select Passive if the current outputs are to be switched to passive.
Press ENTER.
All switchable current outputs are switched to passive.
10.4 Start of the measurement
Select the program branch Measurement.
Press ENTER.
Activation of the channels
The channels for the measurement can be activated and
deactivated.
: the channel is activated
: the channel is deactivated
: the channel cannot be activated
This display will not be indicated if the transmitter has only
one measuring channel.
Select a channel with or .
Press or to activate or deactivate the channel.
If the parameters in the program branch Parameters are not valid or incomplete, the error message Invalid
parameters will be displayed.
A deactivated channel will be ignored during the measurement.
Special functions
Current output
Active Passive
see annex A
Special functions\Current output
Measurement
Select channels
Measuring point no.
Sound path
For each
activated
measuring
channel
Transducer distance
Signal test
Transducer distance
Measurement display
see annex A
Measurement\Select channels
Notice!
Pass the program branch
Parameters
in its entirety if is displayed for all channels.
