8 Connection
8.6 Service interfaces
8.6.1 USB interface
The transmitter can be connected directly to the PC via the USB interface.
• Connect the USB cable to the USB interface of the transmitter and to the PC.
8.6.2 LAN interface
The transmitter can be connected to the PC or LAN via a LAN cable.
Transmitter with stainless steel housing
• Remove the blind plug to connect the cable to the transmitter.
• Open the cable gland of the LAN cable. The compression part remains in the cap nut.

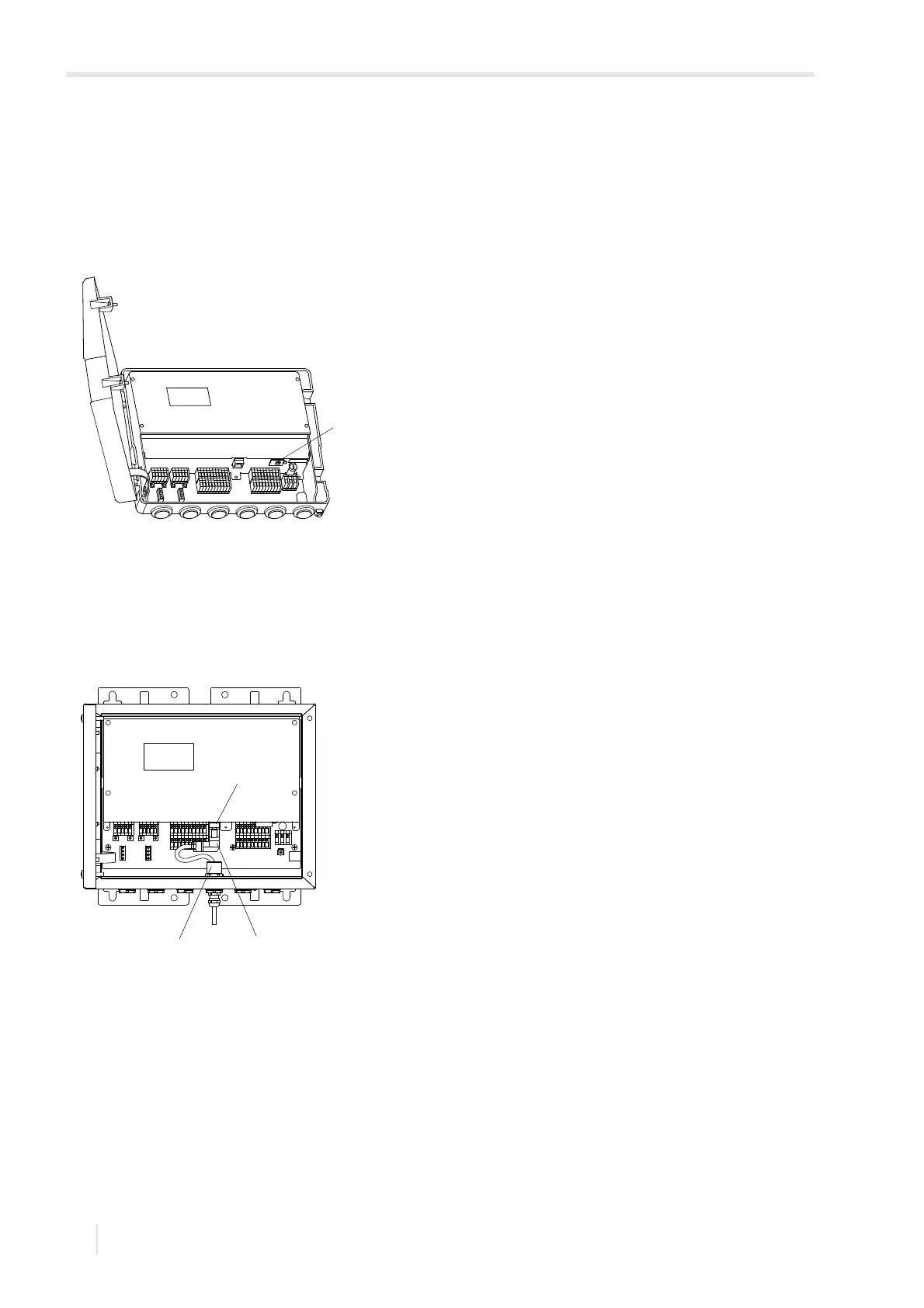

Fig. 8.23: Connection of the USB cable
1 – USB interface
Fig. 8.24: Connection of the LAN cable
1 – LAN interface
2 – ferrite nut
3 – LAN connector
1
2
1
3
