4 Basics – flow measurement
4.2 Measurement arrangements PIOX S72*
2022-05-15, UMPIOX_S72xV1-9EN
16
Transducer distance
The transducer distance is measured between the inner edges of the transducers.
Sound beam plane
Plane containing 1 or several sound paths or beams
reflection arrangement
diagonal arrangement
(positive transducer distance)
diagonal arrangement
(negative transducer distance)
a – transducer distance

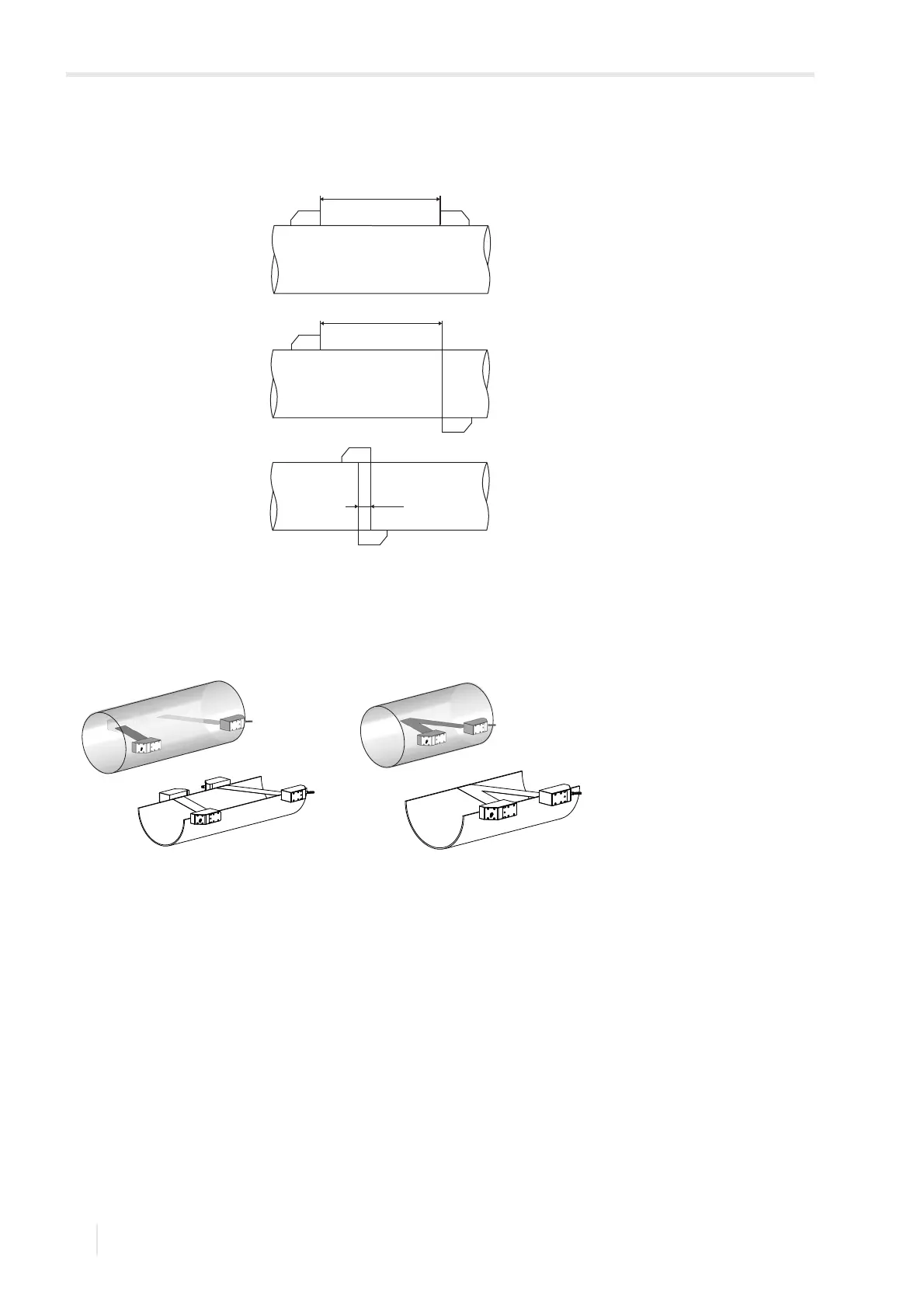

Fig. 4.6: 2 beams in 1 plane Fig. 4.7: 2 sound paths in 1 plane
a
a
a
