7 Mounting
PIOX S72* 7.1 Transmitter
31
UMPIOX_S72xV1-9EN, 2022-05-15
Transmitter with aluminum housing
• Fix the band clamps (6) with 2 countersunk-head screws (4) firmly to the wall mount (1). Take care to place the
washers (7) between the wall mount and the band clamp.
• Fix the wall mount with the band clamps to the pipe.
• Attach the transmitter to the lower hooks (8) of the wall mount.
• Fix the transmitter to the wall mount by locking the stop bolt (2) into the destined hole and by firmly tightening the
screw (3).
For the mounting on pipes the pipe mounting kit, consisting of 2 band clamps, 2 countersunk-head screws and 2
washers, is needed. The distance of the band clamps has to be identical to the distance of the holes on the wall
mount.

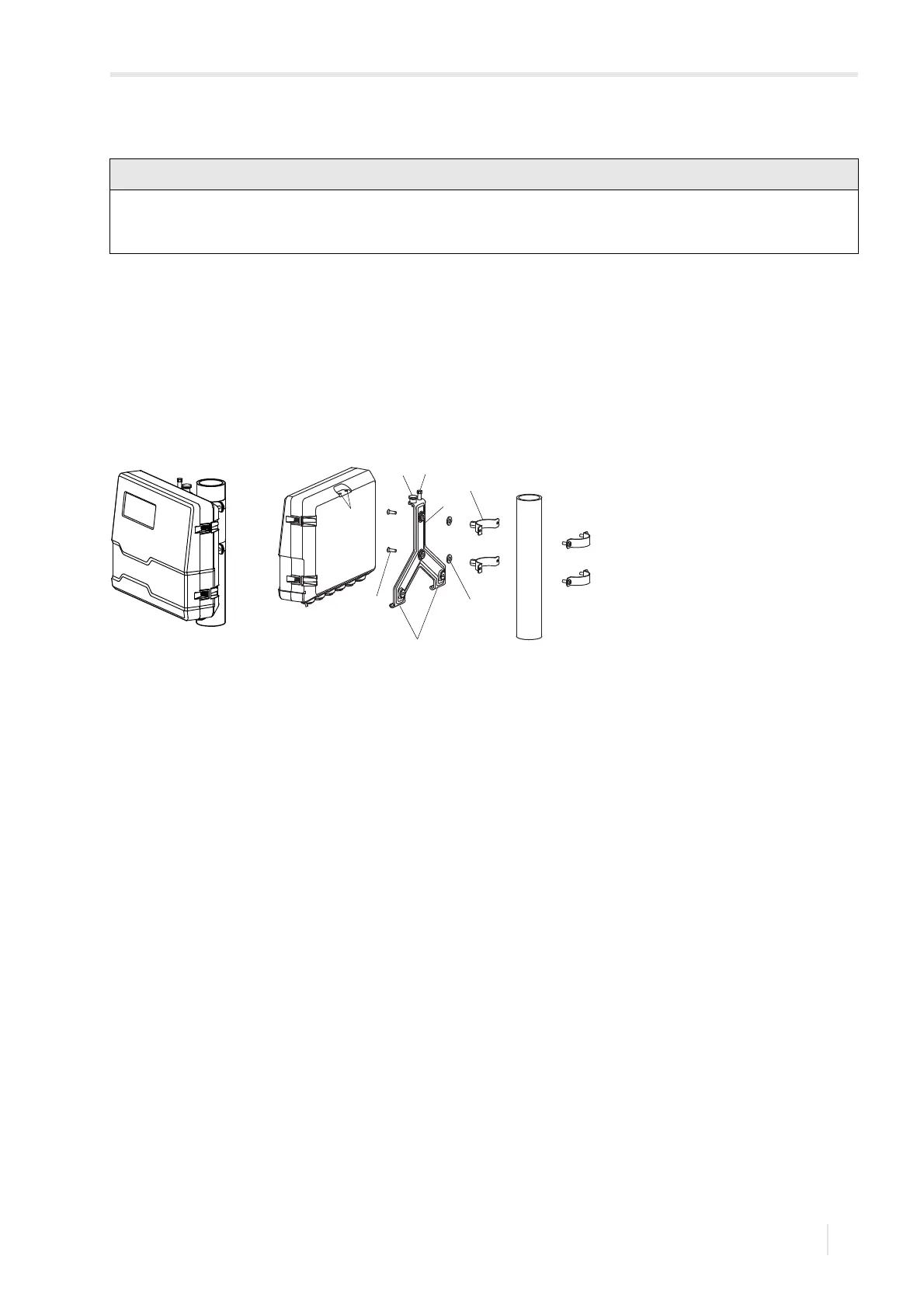

Fig. 7.7: Installation view
1 – wall mount
2 – stop bolt
3–screw
4 – countersunk-head screw
5 – hole
6 – band clamp
7 – washer
8 – hook
