7 Mounting
7.2 Transducers PIOX S72*
2022-05-15, UMPIOX_S72xV1-9EN
42
Step 4: Fixation of the rail to the pipe
• Place the tension strap clamp (2) in the rail (see Fig. 7.23). Observe the orientation of the tension strap clamp.
• Slightly tighten the nut of the tension strap clamp (2).
• Screw the rail to tension strap clamp (1) (see Fig. 7.24).
• Tighten the nut of tension strap clamp (1), but not too firmly in order not to damage the tension strap.

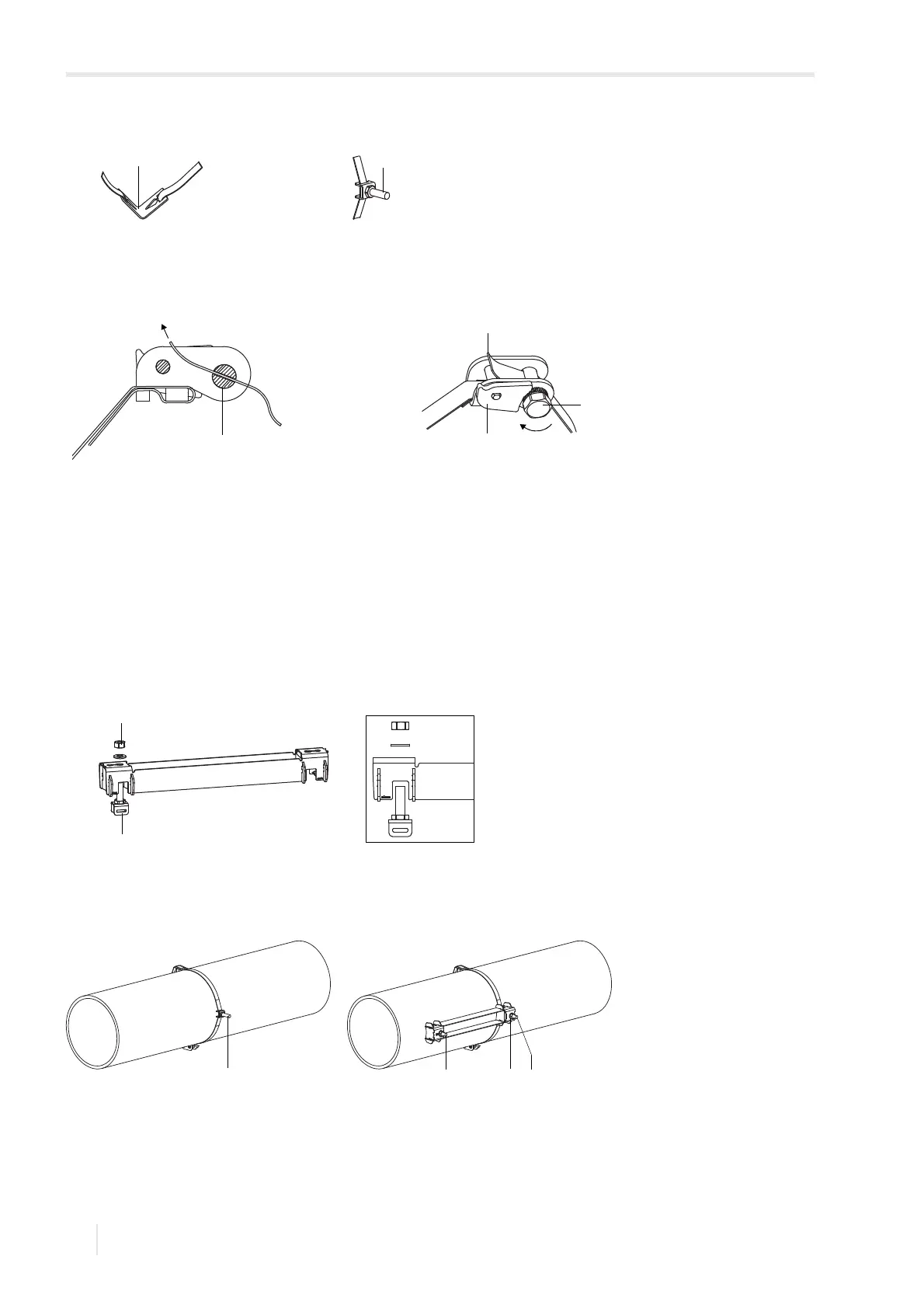

Fig. 7.21: Tension strap with metal spring and clamp
1–metal spring
2 – tension strap clamp
Fig. 7.22: Ratchet clasp with tension strap
1 – sense of rotation
2 – edge
3–lever
4 – clasp screw with slot
Fig. 7.23: Rail with tension strap clamp
1 – nut
2 – tension strap clamp
Fig. 7.24: Rail, fixed on one side to the pipe
1 – tension strap clamp
2 – tension strap clamp
3 – nut
12
1
2
4
3
4
1
2
213
1
